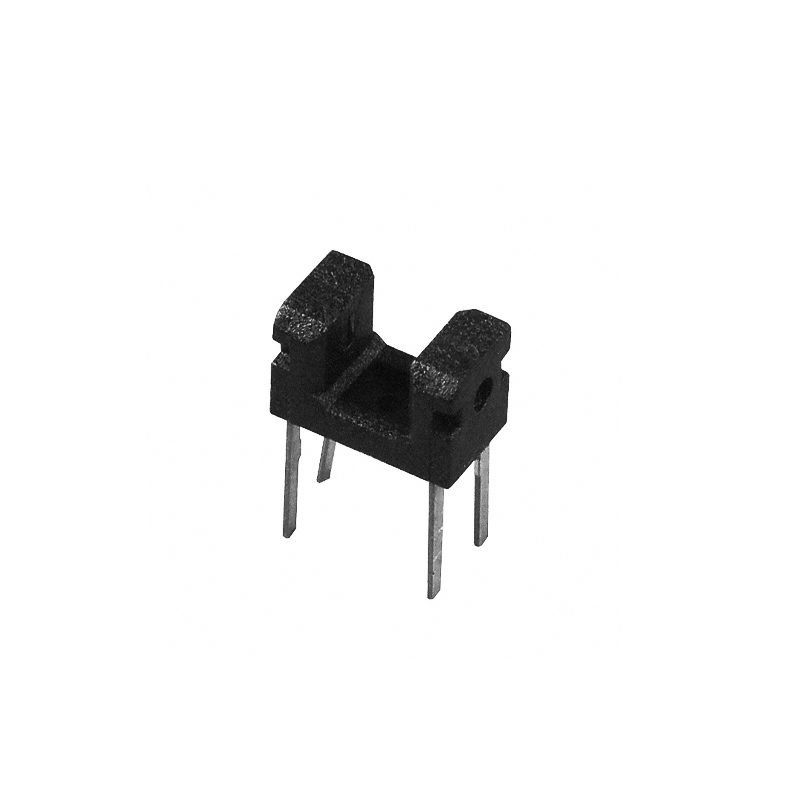

Sharp Microelectronics GP1S094HCZ0F Transmissive Photointerrupter Sensor, 1.5 mm Gap, 0.3 mm Slit, Phototransistor Output, Through-Hole Mount
The Sharp Microelectronics GP1S094HCZ0F is a compact transmissive photointerrupter module featuring a phototransistor output, designed for precise non-contact object detection in PCB-mounted applications. Its through-hole design ensures reliable integration into electronic assemblies, operating from -25°C to +85°C.
Features
- Transmissive optical design with integrated IR emitter and phototransistor detector
- Precise 1.5 mm sensing gap with a narrow 0.3 mm detector slit for accurate edge detection
- Integrated positioning pins ensure stable and accurate PCB alignment during assembly
- Compact through-hole package measuring 5.5 x 2.6 x 4.8 mm for space-constrained designs
- Wide operating temperature range from -25°C to +85°C for industrial reliability
Out of stock
The GP1S094HCZ0F operates on a transmissive photointerrupter principle, where an internal infrared LED emitter is optically aligned with a phototransistor detector across a precise air gap. An opaque object passing through this gap interrupts the light beam, causing a corresponding change in the phototransistor’s output current. This provides a clean, non-contact digital signal for position, speed, or end-stop detection.
Built with advanced transfer molding technology, the module offers excellent mechanical stability and environmental resistance. The inclusion of alignment pins prevents rotational misalignment during soldering, ensuring consistent performance. Its RoHS-compliant construction and wide temperature tolerance make it suitable for automated assembly lines and durable end-products.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 0.55 × 0.26 × 0.48 cm |
