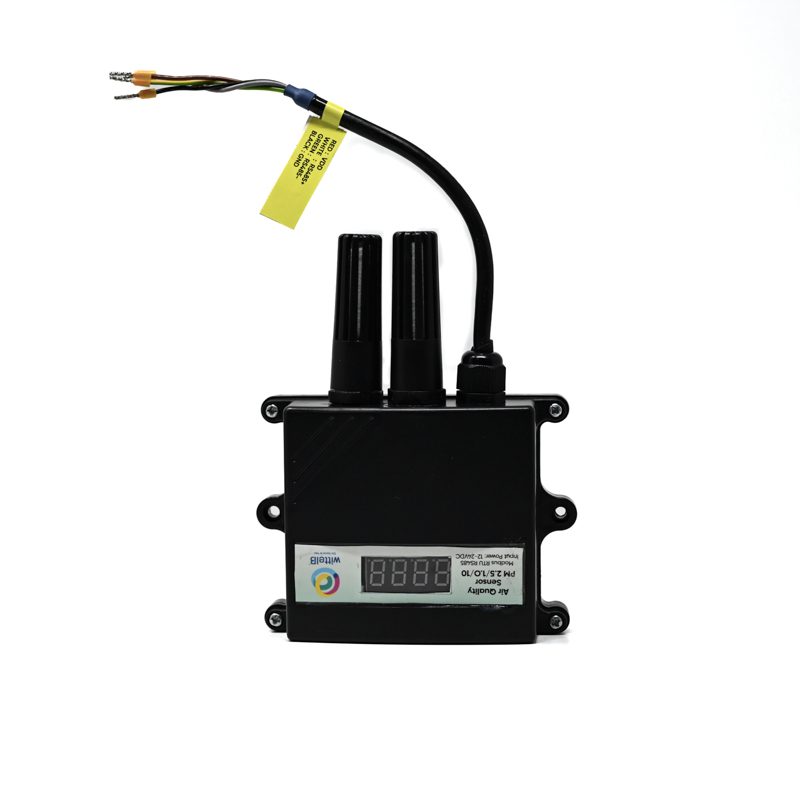

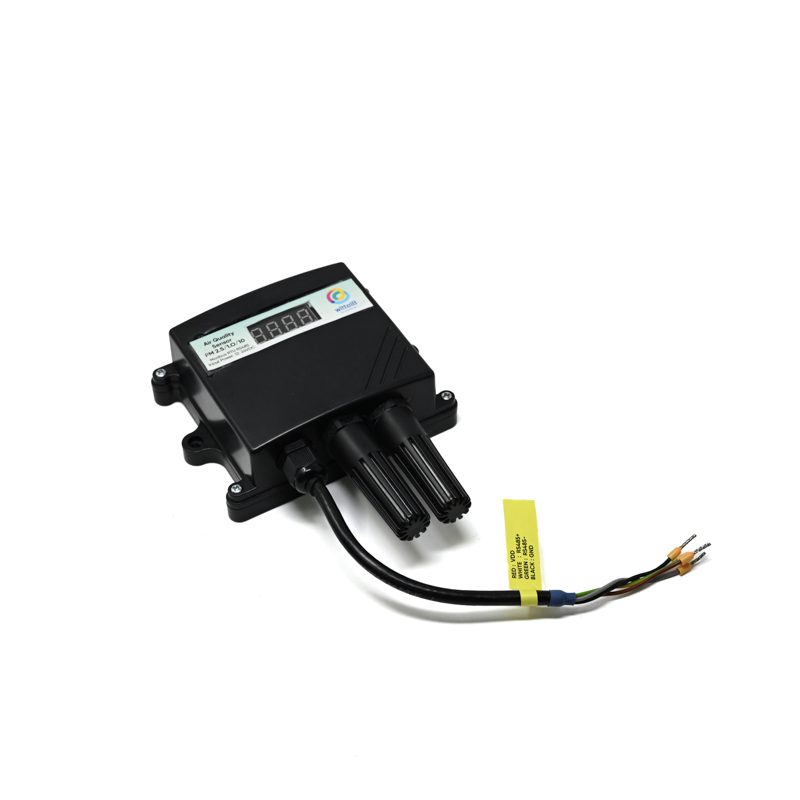

Wittelb WIN-SN-PM2.5/1/10-M-D Particulate Matter Sensor with Display - RS485 Modbus
The Wittelb WIN-SN-PM2.5/1/10-M-D is a professional-grade particulate matter sensor module with a built-in display, providing simultaneous monitoring of PM1.0, PM2.5, and PM10 concentrations via a standard RS485 Modbus interface for seamless integration into industrial PLCs, HVAC systems, and environmental monitoring networks.
Features
- Simultaneously measures PM1.0, PM2.5, and PM10 concentrations from 0 to 1000 µg/m³.
- High-accuracy digital output via RS485 interface with configurable Modbus RTU protocol.
- Integrated 7-segment display provides real-time, on-device concentration readings.
- Designed for long-term stability in harsh environments (-10°C to 60°C, 0-80% RH).
- Wide 12-24V DC power input range with low 50-100mA operating current.
Out of stock
The Wittelb WIN-SN-PM2.5/1/10-M-D particulate matter sensor employs a laser scattering principle to detect and quantify airborne particles across three critical size fractions. The sensor’s internal fan draws a consistent sample flow, while sophisticated signal processing algorithms provide stable, calibrated digital readings directly accessible via the Modbus protocol.
Housed in a durable plastic enclosure, this sensor is engineered for continuous deployment in demanding applications such as industrial air quality monitoring, HVAC duct control, and smart building management systems. The RS485 bus architecture allows for daisy-chaining multiple sensors, making it ideal for distributed monitoring networks requiring reliable, long-term data.
Additional Information
| Weight | 0.309 kg |
|---|---|
| Dimensions | 19 × 14 × 9 cm |
