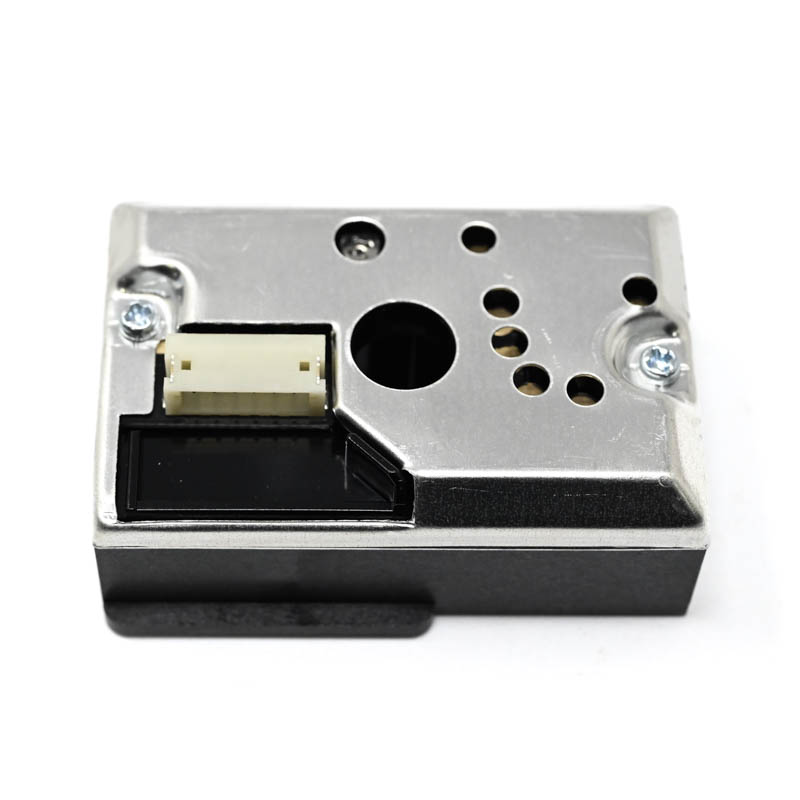

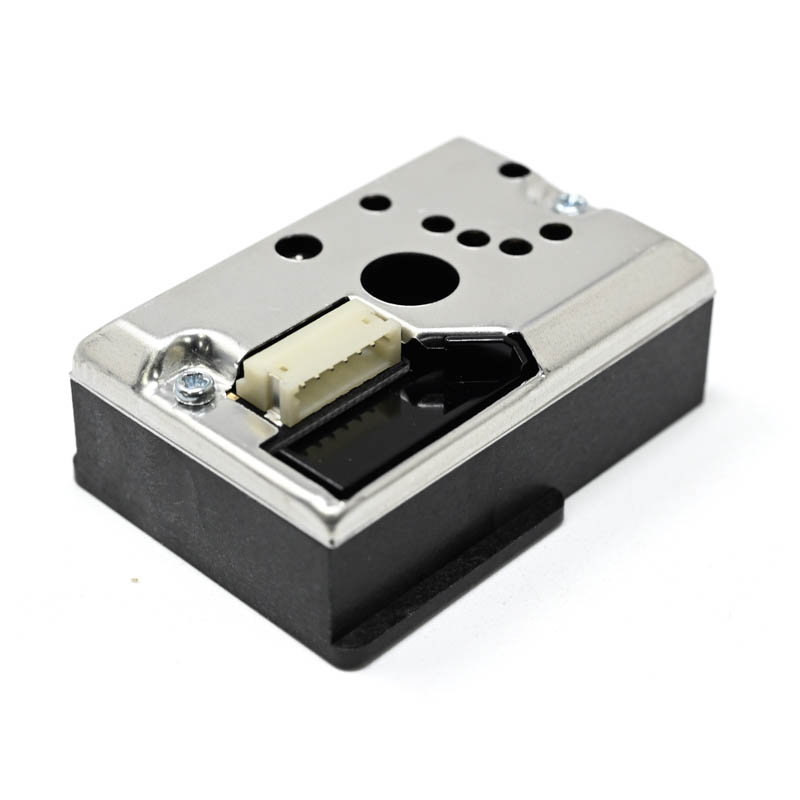

Sharp Microelectronics GP2Y1014AU0F Dust Sensor, Analog Output, High Precision, Range: 0~1500 µg/m³
The Sharp Microelectronics GP2Y1014AU0F is a compact optical dust sensor providing an analog voltage output proportional to airborne particulate matter concentration from 0 to 1500 µg/m³. It is designed for integration into air quality monitors, air purifiers, and microcontroller-based systems like Arduino or Raspberry Pi operating on a 5V DC supply.
Features
- Optical sensing principle with integrated IRED and phototransistor for detecting fine dust and smoke particles.
- Analog voltage output (0.5 V per 0.1 mg/m³) provides continuous, real-time concentration feedback.
- Compact form factor measuring 46.0 x 30.0 x 17.6 mm for easy integration into space-constrained designs.
- Low power consumption with a maximum operating current of 20 mA at 5V.
- Wide operating temperature range from -10°C to +65°C for reliable performance in various environments.
Out of stock
The GP2Y1014AU0F utilizes an optical scattering method, where an infrared emitting diode (IRED) illuminates airborne particles, and a phototransistor detects the scattered light intensity. This analog signal is processed to provide a voltage output linearly related to the mass concentration of particulate matter, enabling precise monitoring of air quality.
Engineered for stability and long-term reliability, the sensor’s compact, self-contained design minimizes external optical interference. Its specified sensitivity and ±30% accuracy make it suitable for detecting both common household dust and finer particulates like cigarette smoke, supporting applications from consumer electronics to industrial environmental monitoring.
Additional Information
| Weight | 0.017 kg |
|---|---|
| Dimensions | 4.6 × 3 × 1.76 cm |
