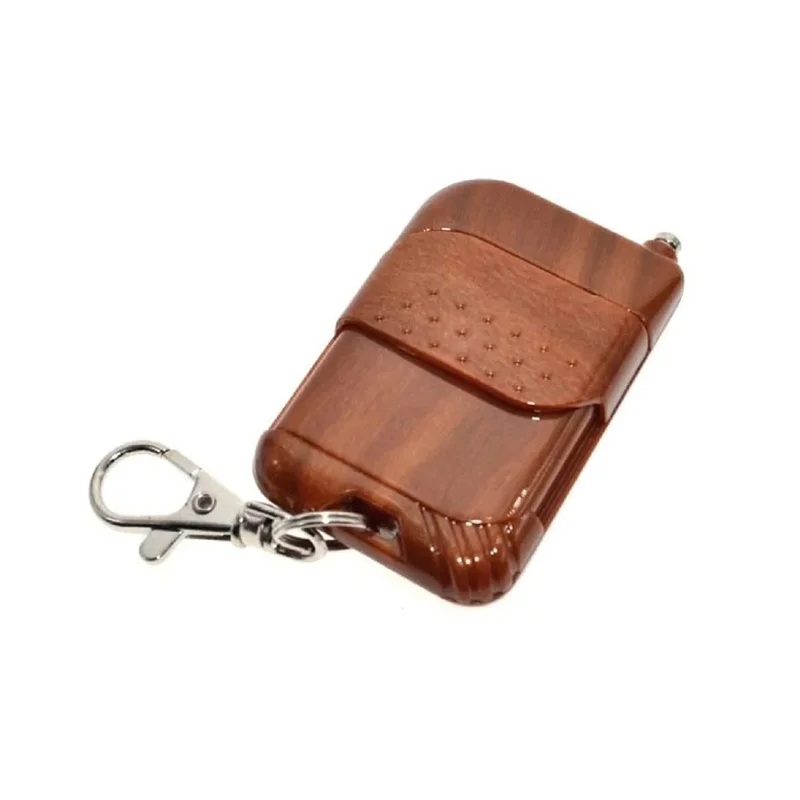

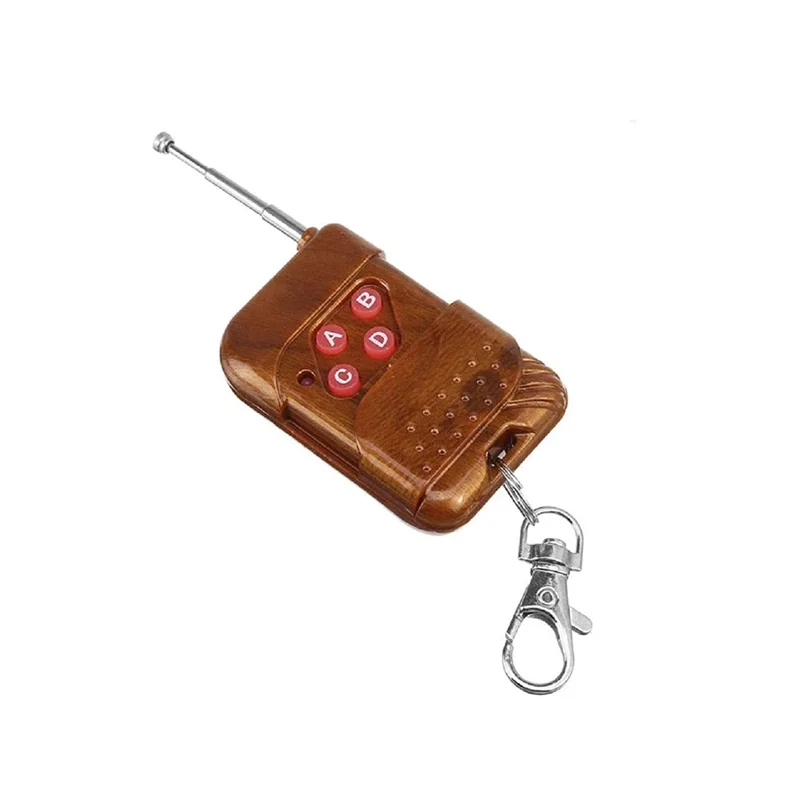

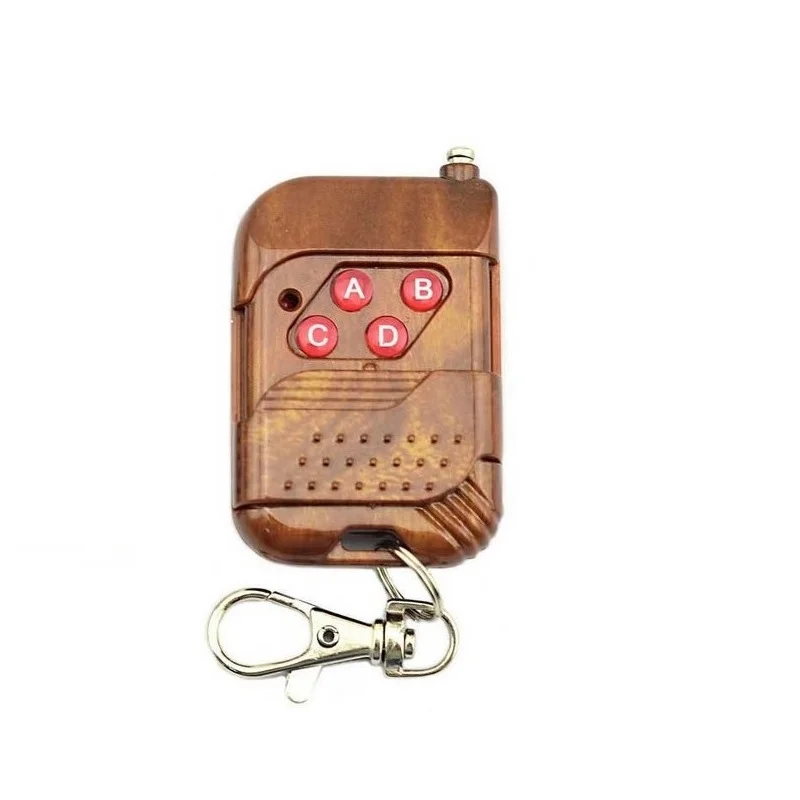

Generic 4-Channel 315MHz RF Remote Transmitter (Non-Locking Mode)
A 4-channel wireless RF remote transmitter operating at 315 MHz for momentary (non-locking) control applications. This ASK-modulated, fixed-code unit requires a 12V power source and is designed to interface with compatible 315MHz receivers for DIY automation, remote switching, and microcontroller triggering.
Features
- Four-Channel Momentary Control: Provides four independent button inputs, each generating a high-level output signal on the receiver only while the corresponding button is pressed, ideal for triggering relays or MCU interrupts.
- 315 MHz ASK RF Link: Operates on the license-free 315 MHz ISM band using Amplitude Shift Keying (ASK) modulation with a fixed code encoder for simple, reliable wireless communication over short to medium ranges.
- Compact 12V Transmitter: The handheld remote is powered by a 12V battery (not included) and draws only 10mA during operation, ensuring long battery life for intermittent use in automation projects.
Out of stock
This 4-channel RF remote transmitter module is a fundamental building block for wireless control systems, utilizing a stable 315 MHz SAW-based oscillator for reliable signal generation. It transmits ASK-modulated, fixed-code signals compatible with a wide range of common decoder ICs and receiver modules, enabling straightforward integration into existing circuits.
The unit is pre-configured in non-locking (momentary/jog) mode, making it suitable for applications requiring transient activation like door locks, garage door openers, or momentary relay control. Its simple design, based on a dedicated encoder chip, ensures consistent performance for hobbyist electronics, prototyping, and basic industrial remote switching without complex configuration.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 6.4 × 3.9 cm |
