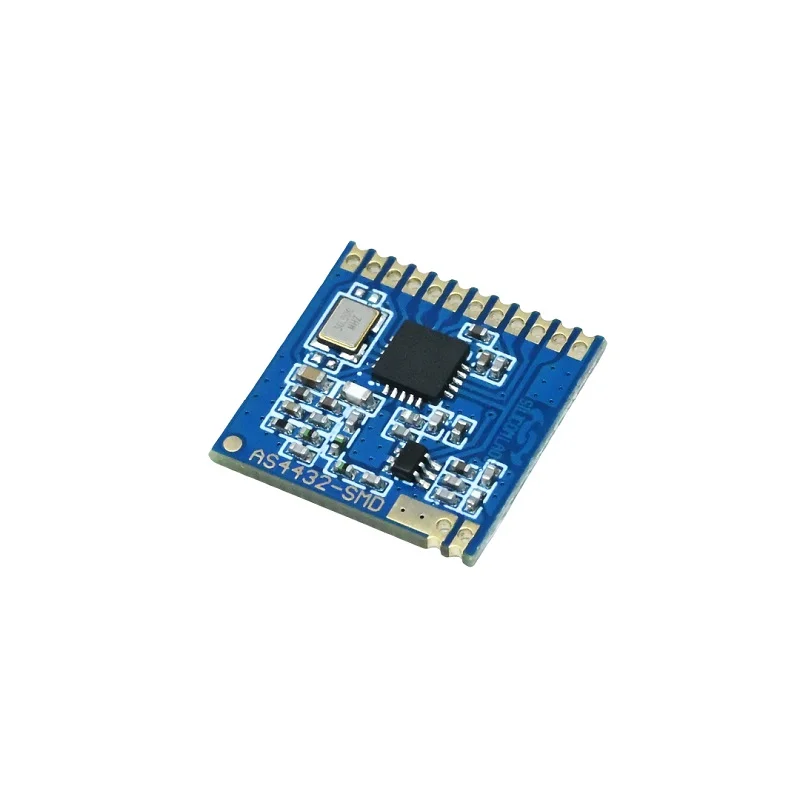

SI4432 Long Range Wireless Module 240-930MHz SMD

In open-field conditions with a proper antenna, the SI4432 can achieve ranges up to 1500 meters. Actual range depends on output power setting (+20 dBm max), antenna gain, data rate, and environmental obstacles. For reliable urban or indoor use, expect several hundred meters. Optimize by using a matched antenna and selecting lower data rates for improved sensitivity.

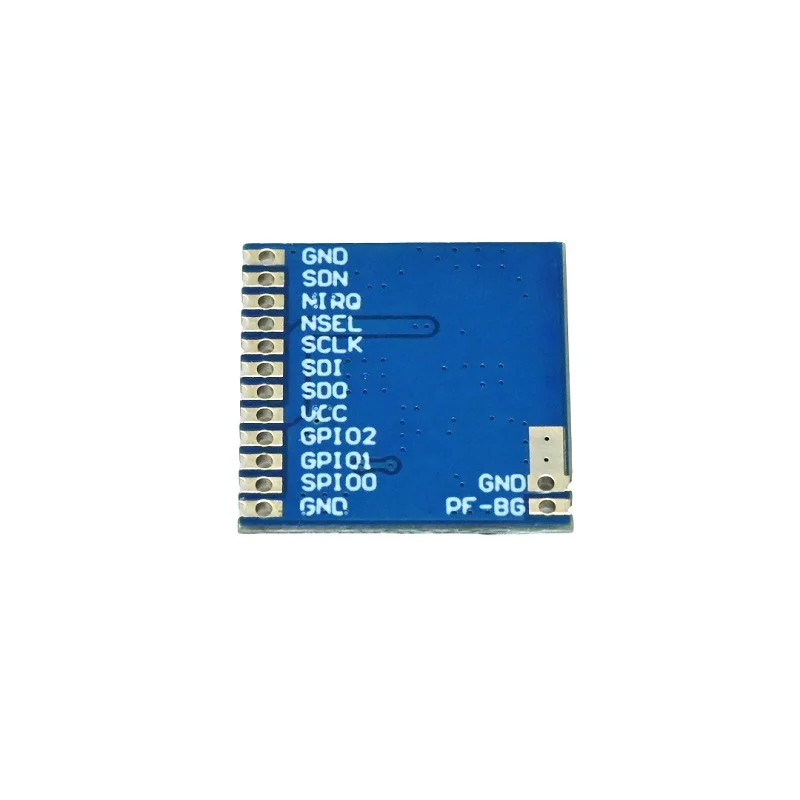

The module is controlled via a standard 4-wire SPI interface (SCLK, MOSI, MISO, CS) by a host microcontroller. All RF parameters—frequency channel, output power, data rate, and packet format—are configured by writing to the chip's internal registers over SPI. Reference the Silicon Labs SI4432 datasheet for the complete register map and initialization sequence to establish communication.

The SI4432 operates from a 1.8V to 3.6V DC supply. Active receive current is approximately 18.5 mA. It features multiple low-power sleep modes; the deepest sleep mode reduces current to microamps, which is critical for battery-powered applications. Ensure your power supply is stable and can deliver brief current peaks during transmission at high power settings.

Yes, you can use it with Arduino by connecting the SPI pins to the microcontroller and utilizing an existing library like RadioHead or EByte's E32 library, which often supports SI4432-based modules. For other platforms like STM32 or ESP32, you'll need to implement the SPI driver and register configuration logic based on the official datasheet and application notes.

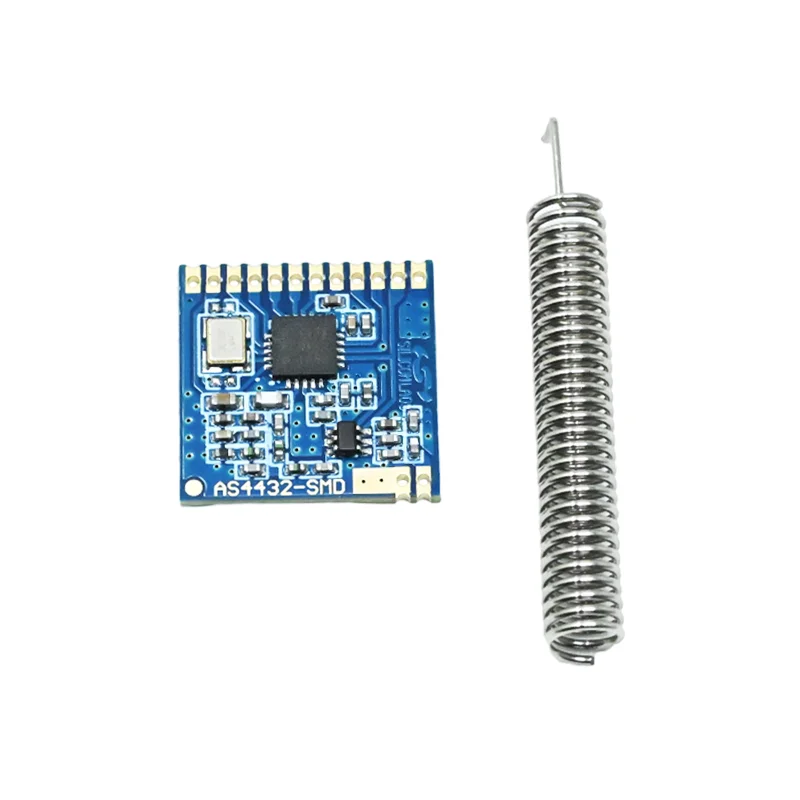

Use a 50-ohm antenna tuned to your operating frequency (e.g., 433MHz or 868MHz). The module typically has an RF pad for a printed antenna or requires an external antenna via a matching network. The included helical antenna is a good starting point. For best performance, ensure proper impedance matching and keep the RF trace short and away from noisy digital lines on your PCB.
