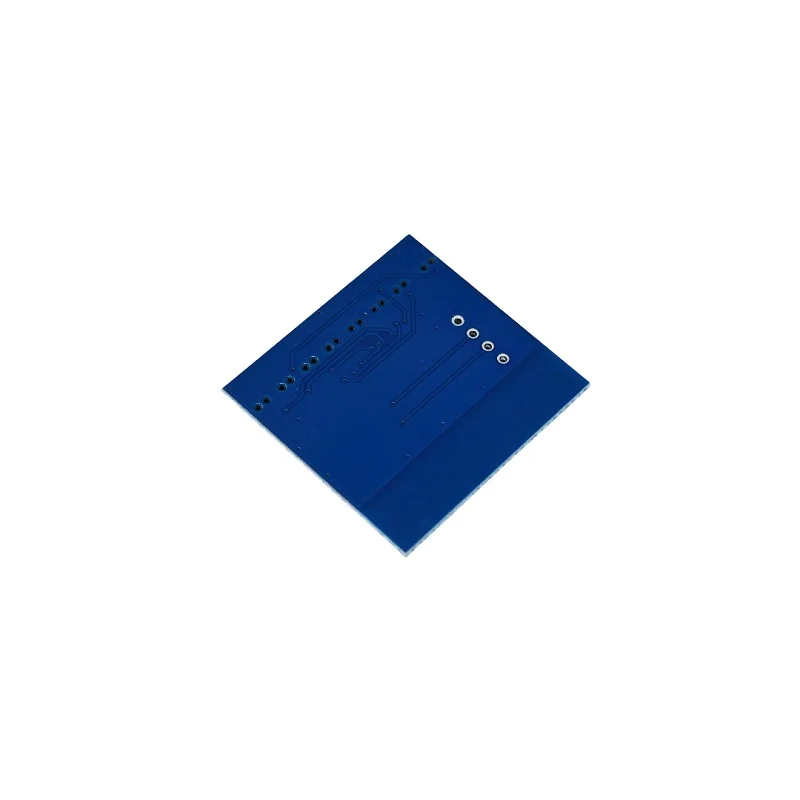

Generic 43 Wireless 2.4G RF Transmitter Module w/ PCB Antenna

Name: Generic 43 Wireless 2.4G RF Transmitter Module w/ PCB Antenna
Brand: Generic
SKU: IOWC-1563
Price: 46.00 INR
Availability: OutOfStock

₹46.00 (Inclusive of all taxes)

Out of Stock

The Generic 43 Wireless 2.4G RF Transmitter Module is a low-power, integrated remote control panel designed for direct wireless switching and serial command transmission over distances up to 100 meters, requiring no external microcontroller.

Features

2.4GHz RF Transmitter with integrated ID learning and anti-interference frequency hopping for secure, reliable control.
Up to 100-meter communication range enabled by onboard PCB antenna with -3dBi gain and -95dBm receiver sensitivity.
Ultra-low power operation with a wide 1.8V–3.6V supply range and a mere 24 µA idle current for battery-powered applications.
Plug-and-play design requiring no external MCU, supporting direct serial transmission and switch control for rapid system integration.
Robust industrial-grade performance across an operating temperature range of -40°C to +85°C.

Out of stock

Get Notified When Available

Description

The 43 Wireless 2.4G Switching Module is a compact, self-contained RF transmitter engineered for reliable wireless remote control. It operates across the 2.4GHz ISM band (2400–2483.5 MHz) with a maximum transmit power of +5 dBm, providing a robust link for command and control signals. Its integrated architecture includes ID pairing, frequency hopping, and non-volatile memory, ensuring secure, interference-resistant operation and state retention after power cycles.

Designed for ease of integration, the module eliminates the need for an external microcontroller, accepting direct serial data or switch inputs for immediate wireless transmission. Its ultra-low idle current and wide operating voltage make it ideal for embedded, battery-powered systems in industrial automation, smart home control, and wireless sensor networks where responsive, sub-0.2ms switching is critical.

Key Features

Integrated 2.4GHz RF transceiver with built-in protocol handling for serial and switch control.
Onboard ID learning and pairing functionality with anti-interference frequency hopping spread spectrum (FHSS).
High-sensitivity receiver (-95dBm) coupled with an integrated PCB antenna for reliable up to 100m range.
Ultra-low power design featuring a 24 µA idle current and a wide 1.8V to 3.6V operating voltage range.
Non-volatile memory retains learned IDs and configuration settings through power loss.
Compact 34mm x 34mm form factor with all components onboard for easy PCB mounting.
Industrial temperature rating (-40°C to +85°C) ensures stable operation in harsh environments.

Applications

Wireless remote control panels for smart home lighting, fan, and appliance switches.
Industrial wireless control systems for machinery start/stop, door/gate control, and actuator triggering.
Battery-powered remote key fobs and wireless command transmitters for security systems.
Wireless sensor node transmitters for telemetry and monitoring in agriculture or environmental sensing.
DIY robotics and maker projects requiring reliable, low-latency wireless command links.

Technical Specifications

Wireless Protocol	2.4GHz RF
Frequency Range	2400 to 2483.5 MHz
Max Transmit Power	+5 dBm
Receiving Sensitivity	-95 dBm
Communication Distance	Up to 100 meters
Antenna Type	PCB onboard antenna
Antenna Gain	-3 dBi
Supply Voltage	1.8V to 3.6V
Idle Current	24 µA
Operating Temperature	-40°C to +85°C
Dimensions (L x W)	34 mm x 34 mm

Frequently Asked Questions

How do I pair and set up the ID learning function on this 2.4G RF transmitter module?

The module features built-in ID learning. Typically, you enter a specific learning mode by holding a configuration pin or sending a serial command sequence. Once in learning mode, press the button on your intended receiver or send its ID code. The module stores this paired ID in its non-volatile memory, enabling secure, interference-resistant communication. Refer to the specific protocol datasheet for the exact pin or command sequence to trigger the pairing process.

What is the recommended power supply configuration and wiring for reliable operation?

Supply a stable DC voltage between 1.8V and 3.6V to the module's VCC and GND pins. Ensure your power source can deliver brief current spikes during transmission. For optimal noise immunity, place a 10-100µF electrolytic capacitor and a 0.1µF ceramic capacitor close to the module's power pins. Connect your control signal (serial TX data or a physical switch) to the designated input pin. The module's low 24µA idle current makes it suitable for direct battery power from two AA cells or a small Li-ion cell.

Can I use this module to send custom serial data commands to a compatible receiver?

Yes, the module supports serial transmission. You interface by connecting your microcontroller's TX line (or a logic-level serial source) to the module's data input pin. The module will wirelessly transmit the serial byte stream you send. Ensure the baud rate matches the receiver's expectation (common rates are 9600 or 115200 bps). The built-in protocol handles packetization, error checking, and frequency hopping, providing a transparent wireless serial link for sending custom control commands or data packets.
