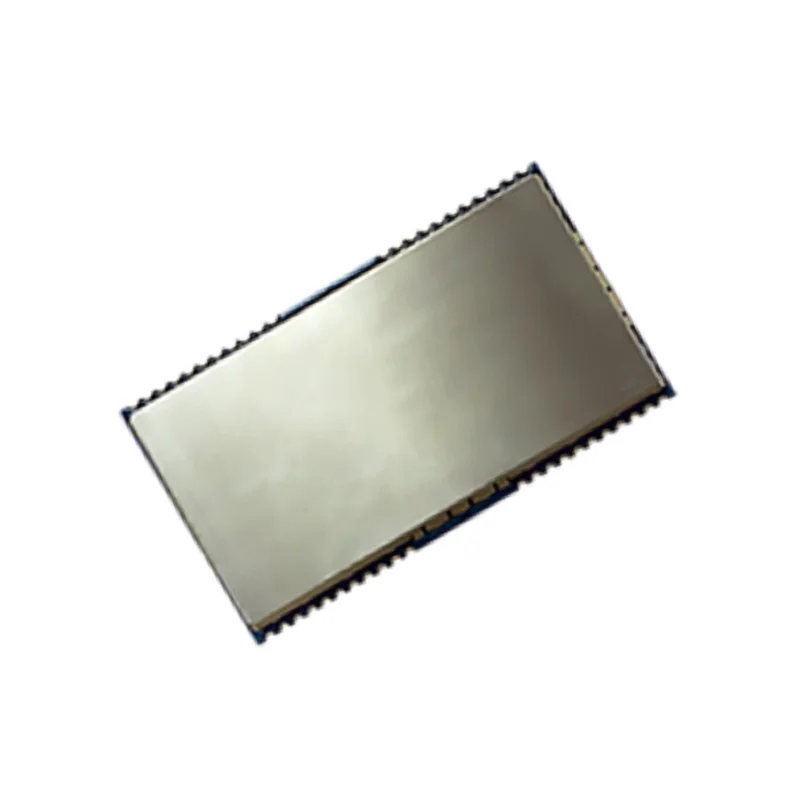

Reyax RYRR30I Multiprotocol Fully Integrated 13.56MHz RFID Module
The Reyax RYRR30I is a fully integrated 13.56MHz RFID/NFC module supporting ISO15693, ISO14443A/B, and FeliCa protocols. It operates from 3-3.6V with a 115200bps UART interface, making it ideal for embedded proximity identification and secure data exchange systems.
Features
- Fully integrated 13.56MHz RFID/NFC transceiver with 30dBm RF output power for reliable short-range communication.
- Supports multiple protocols: ISO15693, ISO14443A, ISO14443B, FeliCa, and NFCIP-1 (ISO/IEC 18092) for broad compatibility.
- Industrial-grade operation from -40°C to +85°C, suitable for harsh environmental conditions.
- Simple UART interface (115200bps) for easy integration with microcontrollers like Arduino, ESP32, or Raspberry Pi.
- Features capacitive sensing for low-power wake-up and supports firmware upgrades via UART for future enhancements.
Out of stock
The Reyax RYRR30I is a professional-grade, fully integrated 13.56MHz RFID and NFC module designed for embedded systems requiring robust proximity identification. It incorporates the complete RF front-end and protocol handling, offloading complex processing from the host microcontroller. The module’s industrial temperature rating and capacitive wake-up sensing make it suitable for demanding IoT applications in access control, asset tracking, and interactive device pairing.
Communication is handled via a straightforward UART serial interface configurable at 115200 baud, simplifying firmware development on platforms like Arduino IDE or ESP-IDF. With support for major ISO and NFC standards, the RYRR30I provides a versatile foundation for building secure, short-range wireless data exchange systems without deep RF expertise.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3 × 5 × 3 cm |
