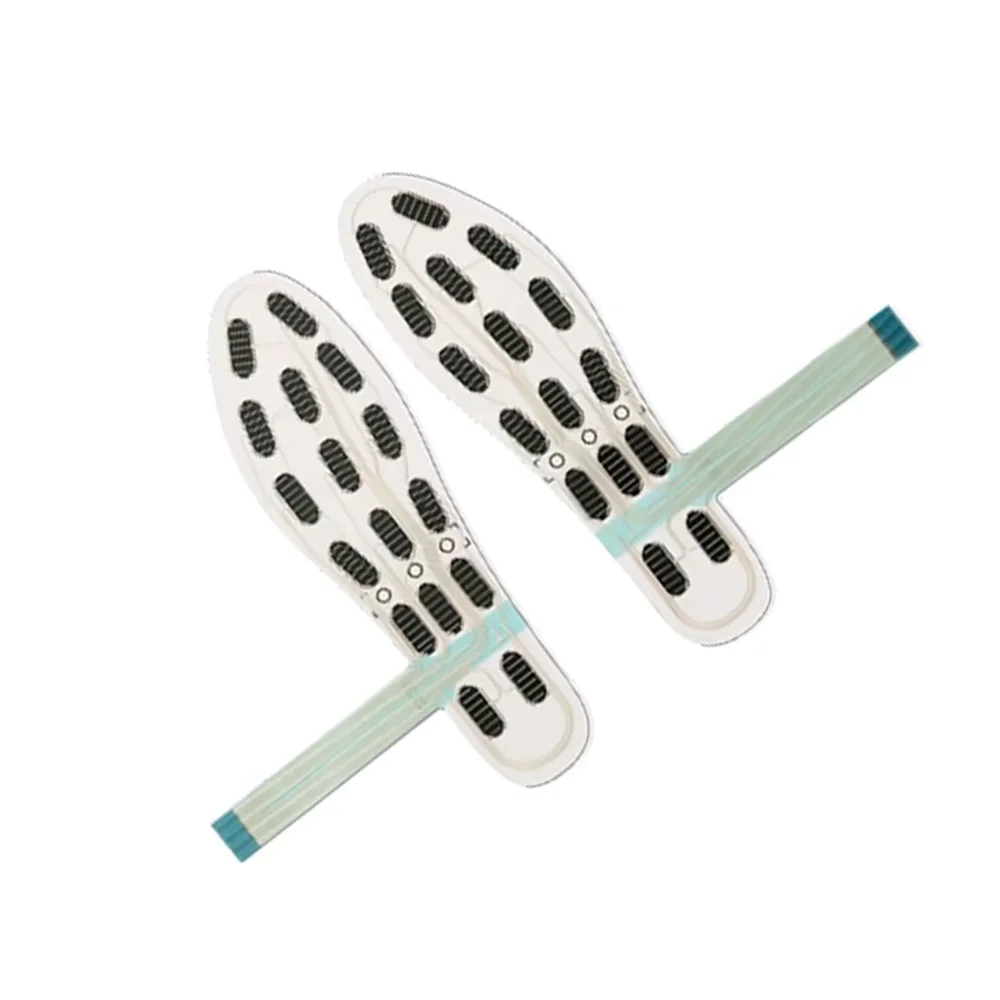

FS-INS-16Z Force Sensitive Resistor (0.5kg-10kg) - 16-Zone Flexible Film Sensor
The FS-INS-16Z is a multi-zone flexible film force sensor with 16 independent sensing points, offering a sensitivity range from 0.5 kg to 10 kg. Its ultra-thin 0.4mm profile with rear adhesive makes it ideal for integration into wearable electronics, biomechanics analysis systems, and pressure mapping applications compatible with microcontroller ADCs.
Features
- 16 independent force-sensitive zones for detailed pressure mapping.
- Wide sensitivity range from 0.5 kg to 10 kg per sensing point.
- Ultra-thin 0.4mm profile with integrated adhesive backing for easy mounting.
- Fast response time of less than 10 milliseconds for real-time force detection.
- Features a 1mm pitch, 10-pin FPC connector for reliable system integration.
Out of stock
The FS-INS-16Z is a piezoresistive thin-film sensor where the electrical resistance of each of its 16 distinct zones decreases proportionally with applied force. This design allows for spatially resolved pressure measurement across a surface, making it suitable for analyzing force distribution patterns.
Constructed with a flexible substrate and a protective, waterproof layer, the sensor is durable and suited for long-term use in dynamic environments. Its fast response time and low power consumption enable integration into battery-powered wearable devices and real-time monitoring systems for Arduino, Raspberry Pi, and other embedded platforms.
