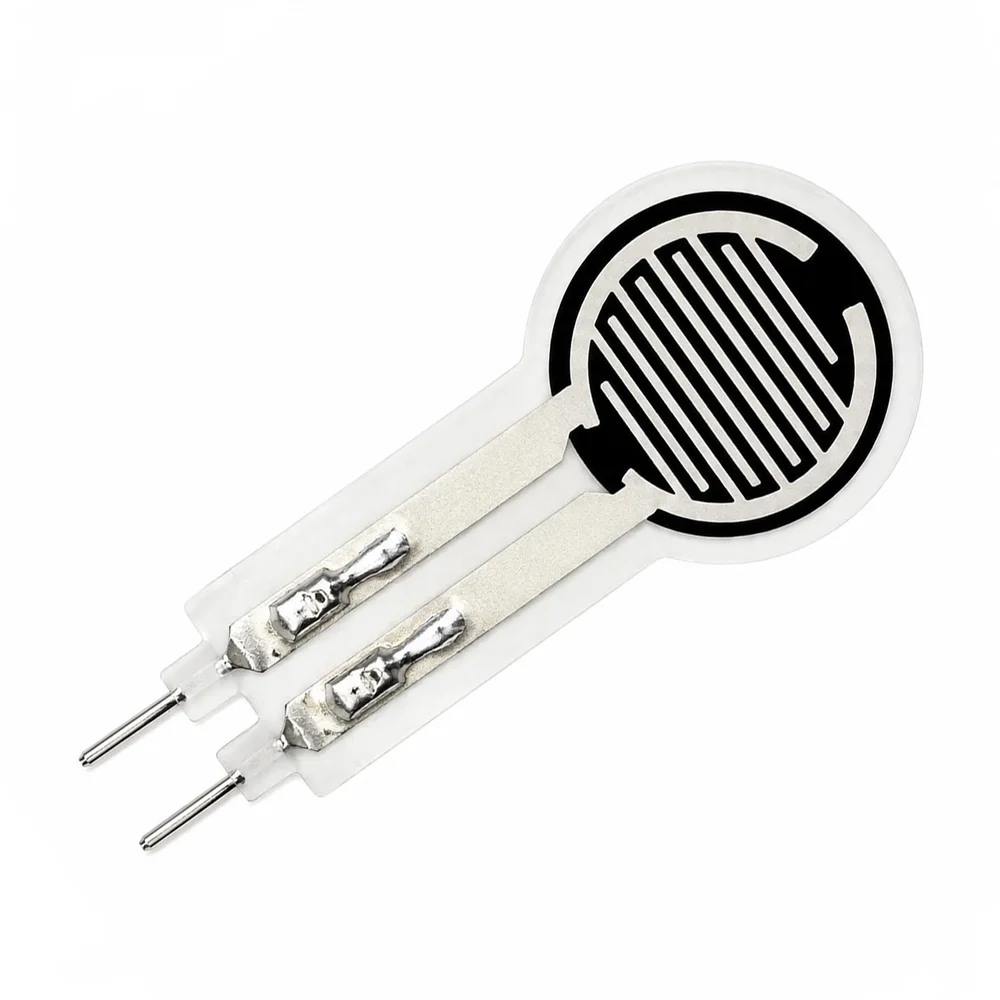

SOUSHINE FSR412 3mm Force Sensing Resistor (70g-10kg)
SKU: SENS-0671
📋 GST Invoice Available

SOUSHINE FSR412 3mm Force Sensing Resistor (70g-10kg)

₹203.00 (Inclusive of all taxes)
Out of Stock

The SOUSHINE FSR412 is a 3mm diameter, ultra-thin force-sensing resistor designed for precise pressure detection from 70g to 10kg, compatible with 3.3V/5V microcontroller systems like Arduino, Raspberry Pi, and ESP32 for tactile sensing and load monitoring applications.

Features

  • Ultra-thin 0.325mm profile for integration into tight spaces.
  • Wide force sensing range from 70 grams to 10 kilograms.
  • High durability rated for over 1 million actuation cycles.
  • Fast response and recovery with less than 1ms and 15ms respectively.
  • Stable 10MΩ initial resistance with 3-5V operating voltage.

Out of stock

Description

The SOUSHINE FSR412 is a piezoresistive force-sensing resistor that changes its electrical resistance in response to applied force or pressure. Its construction utilizes a conductive polymer film that exhibits a decrease in resistance as force increases, providing an analog voltage output when used in a simple voltage divider circuit. This principle allows for direct interfacing with analog-to-digital converters on most microcontrollers.

Engineered for reliability, the sensor operates across an industrial temperature range of -20°C to 60°C and features inherent immunity to electromagnetic interference (EMI) and electrostatic discharge (ESD). Its robust design ensures signal stability and repeatable measurements, making it suitable for embedded systems requiring consistent force feedback.

Key Features

  • 3mm active sensing area with a minimal 0.325mm thickness for low-profile designs.
  • Precise force detection with a low activation threshold of 30g and a maximum range of 10kg.
  • Exceptional mechanical lifespan exceeding 1 million compression cycles.
  • Rapid dynamic response with sub-1ms reaction time and under 15ms recovery.
  • High initial impedance of 10MΩ for low-power circuit designs.
  • Wide operating temperature from -20°C to 60°C for varied environments.
  • Built-in resistance to EMI and ESD for enhanced signal integrity in noisy conditions.
  • Optimized performance-to-cost ratio for high-volume integration.

Applications

  • Robotic gripper and end-effector tactile feedback systems.
  • Medical device pressure monitoring and patient interface sensing.
  • Industrial process control for lightweight part presence detection.
  • Consumer electronics for button replacement and intuitive touch interfaces.
  • Wearable technology for activity monitoring and gesture recognition.

Technical Specifications

ModelFSR412
Sensing Diameter3 mm
Thickness0.325 mm
Force Range70 g to 10 kg
Activation Force (Response Point)30 g
Initial Resistance10 MΩ
Test/Operating Voltage3 - 5 V DC
Response Time< 1 ms
Recovery Time< 15 ms
Durability (Cycles)> 1,000,000
Operating Temperature-20°C to 60°C
Key FeaturesEMI/ESD Immune, Thin Film

Frequently Asked Questions

What is the operating voltage for the FSR412 sensor?

The FSR412 is designed to operate with a test voltage between 3V and 5V DC. This range makes it directly compatible with common 3.3V and 5V logic systems found on Arduino, Raspberry Pi, and other microcontrollers without requiring additional signal conditioning.

How do I interface the FSR412 with a microcontroller?

Interface the FSR412 by creating a simple voltage divider circuit. Connect one sensor lead to your microcontroller's voltage supply (3-5V) and the other lead to a pull-down resistor (typically 10kΩ to 100kΩ) tied to ground. The junction between the sensor and the resistor provides an analog voltage signal that can be read by an ADC pin.

What is the minimum detectable force (threshold) for this sensor?

The sensor has a specified response point of 30 grams. This means it will begin to show a measurable change in resistance when a force as low as 30g is applied, providing high sensitivity for detecting very light touches or pressures.

Is the FSR412 suitable for high-cycle applications?

Yes, the FSR412 is rated for a mechanical durability of over 1 million actuation cycles. Its robust thin-film construction ensures long-term reliability in applications requiring repeated force detection, such as buttons, switches, or continuous monitoring systems.

Package Includes

  • 1 x SOUSHINE FSR412 Force Sensing Resistor

Related Products

Out of Stock

Generic SHT10 Soil Temperature & Humidity Sensor Module - Digital Output

1,909.00
Learn More
Out of Stock

GY-63 MS5611-01BA03 High Precision Barometric Pressure Sensor Module - I2C/SPI Interface

509.00
Learn More
Out of Stock

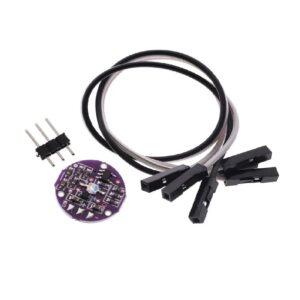

Pulse Sensor Amped Heart Rate Monitor for Arduino - Module Only

149.00
Learn More
Out of Stock

Allegro MicroSystems ACS758LCB-050B-PFF-T Hall Current Sensor Module - 50A Bidirectional

350.00
Learn More
Out of Stock

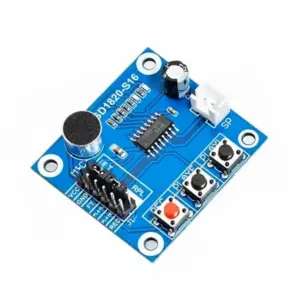

ISD1820 Voice Recording Module with Onboard Mic & Speaker Output

146.00
Learn More
Out of Stock

Seeed Studio Studio Grove Digital PIR Motion Sensor - 3-5V DC, 100° Angle, Grove Interface

479.00
Learn More
Out of Stock

Generic GY-BMI160 6DOF 6-Axis IMU Module - I2C/SPI Interface

156.00
Learn More
Out of Stock

TOF050C 400C Laser Ranging Sensor Module - VL6180 ToF, I2C Output

58.00
Learn More
Out of Stock

Elecrow Crowtail PIR Motion Sensor - 3-5V, 120° Angle, Max 6m Range

319.00
Learn More
Out of Stock

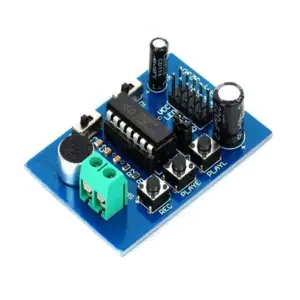

ISD1820 Voice Recording Module with Speaker Support - 10-20s Audio Playback
