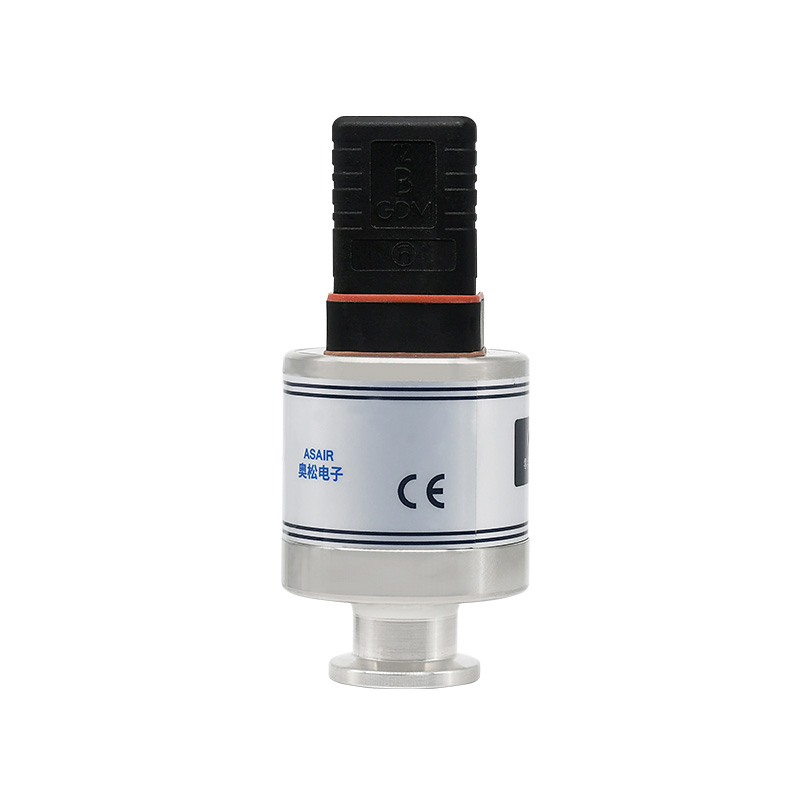

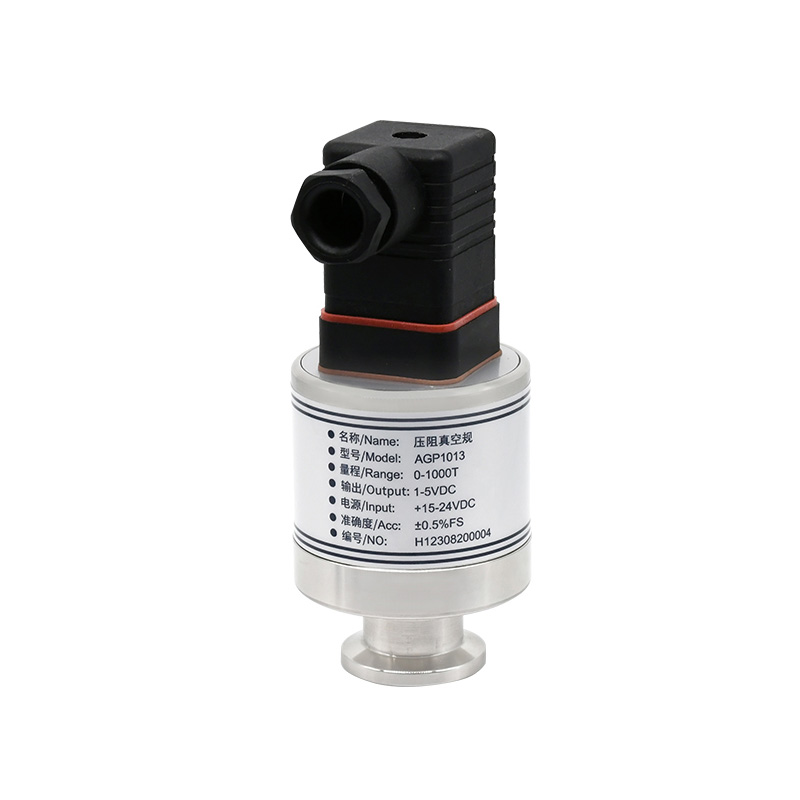

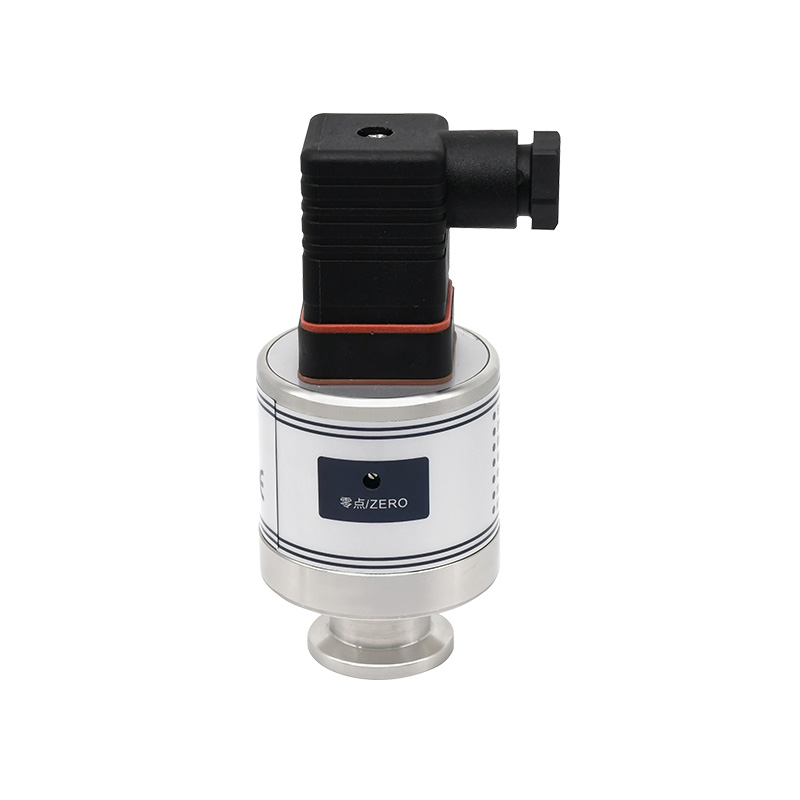

Asair AGP1013 Piezoresistive Vacuum Gauge, 0~1000T, KF16 Connector
The Asair AGP1013 is a piezoresistive vacuum gauge module designed for industrial and laboratory applications, providing a 1-5 VDC analog output signal for pressure monitoring from 0 to 1000 Torr. It operates on a wide 9-28 VDC supply and is compatible with PLCs, data loggers, and other control systems requiring high-stability vacuum measurement.
Features
- Measures vacuum pressure from 0 to 1000 Torr with ±0.5% FS accuracy.
- Provides a standard 1 to 5 VDC analog output signal for easy system integration.
- Features a fast 50 ms response time for dynamic pressure monitoring.

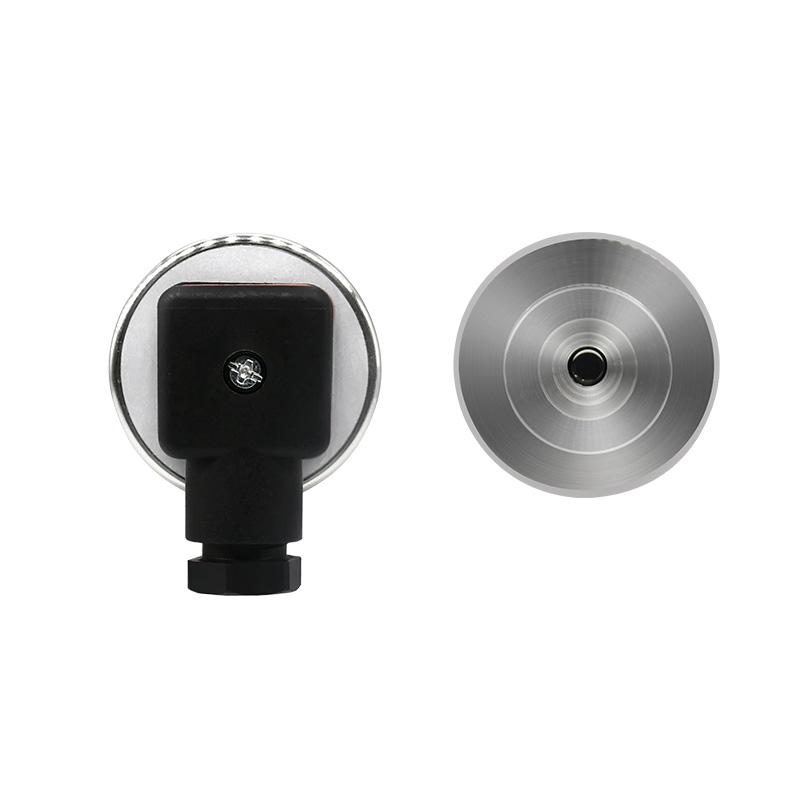

- Constructed with a 316 stainless steel shell and KF16 flange for robust, corrosion-resistant installation.
- Operates on a wide 9 to 28 VDC power supply with 10 kΩ load compatibility.
Out of stock
The AGP1013 series employs a diffused silicon oil-filled sensor core, leveraging the piezoresistive effect for precise measurement of vacuum pressure. This integrated module combines the sensor and electronic controller into a single, compact unit, ensuring high stability and repeatability through factory calibration of accuracy, repeatability, and response time.
Designed for durability in demanding environments, the sensor features a 316 stainless steel housing and is suitable for applications within a 5 to 45°C operating temperature range. Its 1-5 VDC output provides a linear, noise-resistant signal ideal for direct connection to industrial PLCs, DAQ systems, or process controllers.
Additional Information
| Weight | 0.32 kg |
|---|---|
| Dimensions | 20 × 13 × 10 cm |
