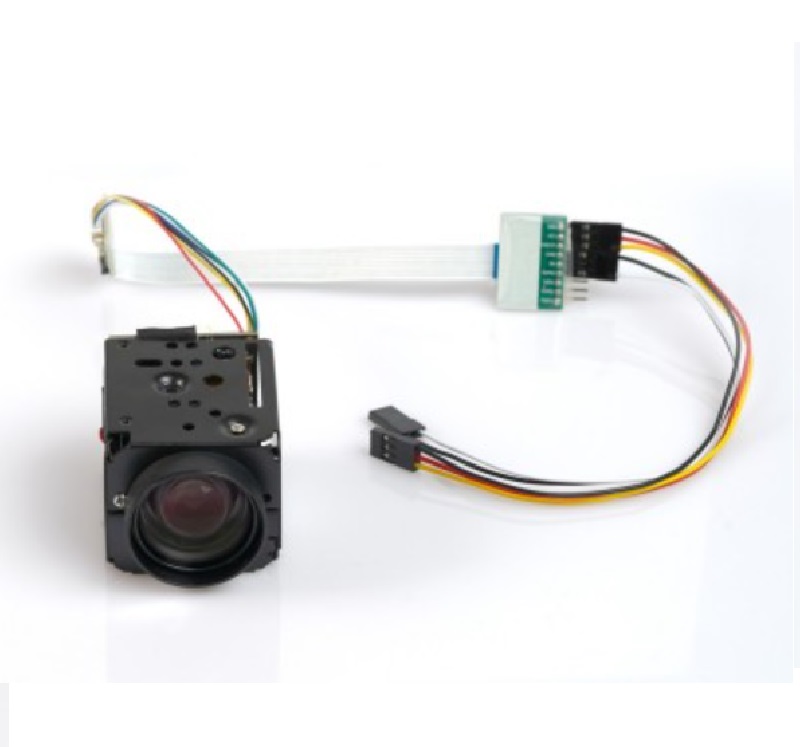

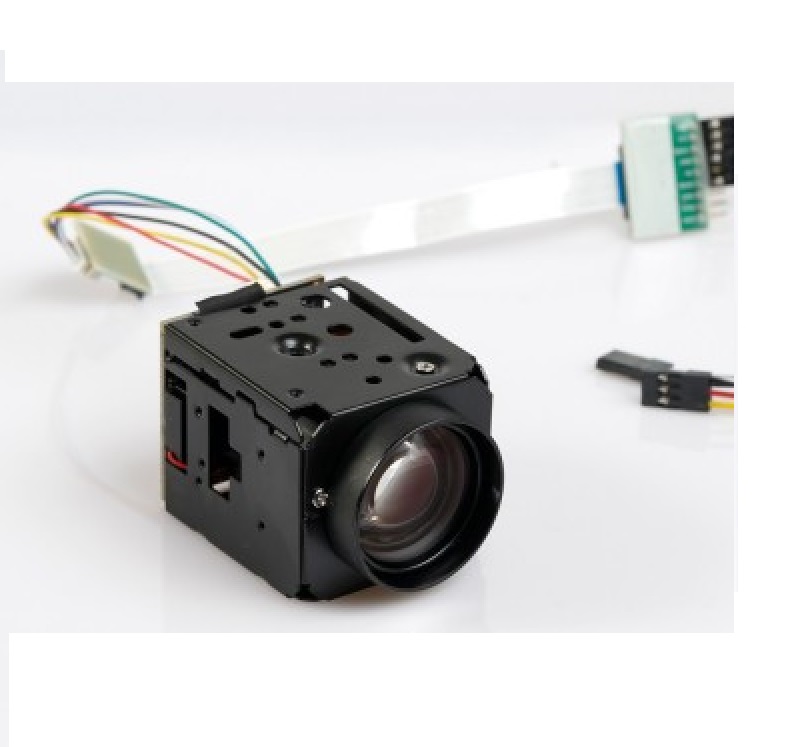

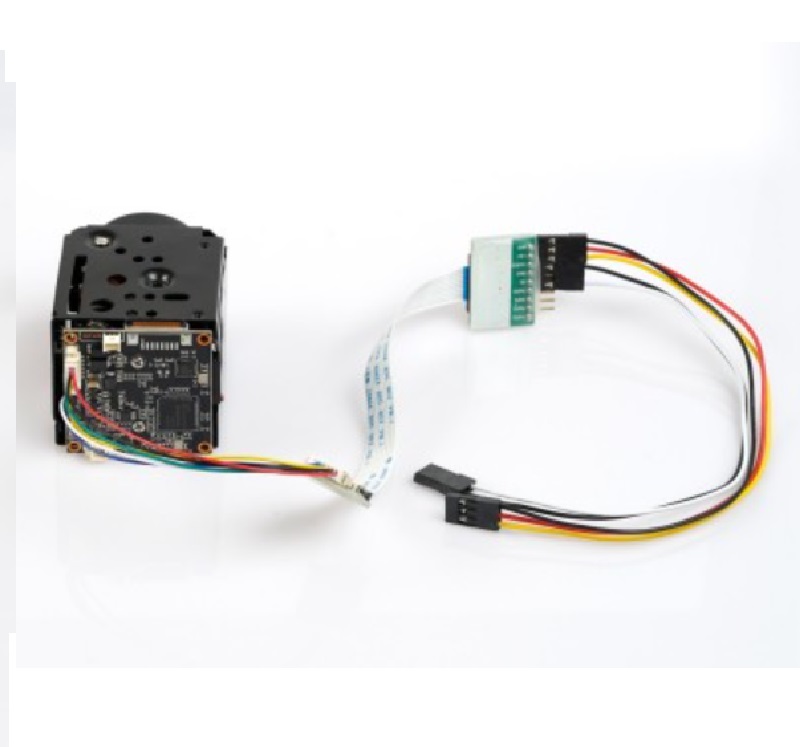

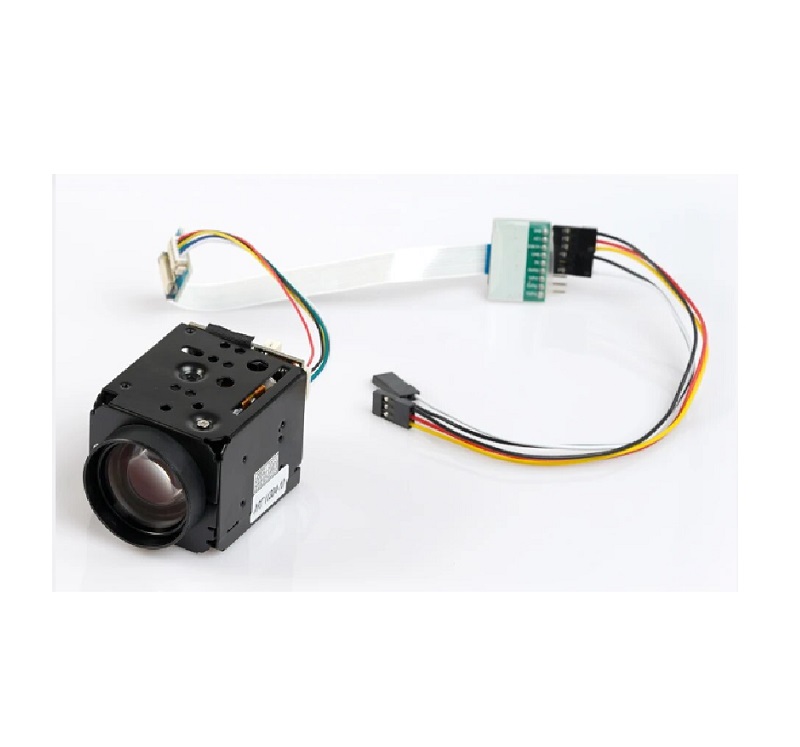

Foxeer 10x Zoom 700TVL CMOS Camera
The Foxeer 10x Zoom 700TVL CMOS Camera is a specialized FPV camera featuring a 1/3″ Sony CMOS sensor with Effio DSP, delivering 700TVL resolution and a 10x optical zoom range for detailed, long-range observation. It operates on 12V DC power and outputs a standard CVBS signal, compatible with PAL/NTSC systems for integration into various FPV and surveillance platforms.
Features
- 10x optical zoom with 3.9–85.8mm focal length for detailed, long-range observation.
- 700TVL resolution from a 1/3″ Sony CMOS sensor paired with Effio DSP for enhanced image clarity.
- Wide Dynamic Range (WDR) function and low illumination sensitivity down to 0.001 Lux in B/W mode.
- Standard CVBS video output compatible with PAL/NTSC systems for versatile FPV system integration.
- PWM signal control for remote zoom adjustment via ground controller.
Out of stock
Engineered for professional FPV and aerial surveillance applications, the Foxeer 10x Zoom camera integrates a high-performance 1/3″ Sony CMOS image sensor with an Effio digital signal processor. This combination provides a sharp 700TVL resolution and robust Wide Dynamic Range (WDR), ensuring clear video feed in challenging high-contrast lighting conditions. The camera’s low-light performance is exceptional, capable of operating in illumination levels as low as 0.001 Lux when in black-and-white mode.
The core feature is its motorized 10x optical zoom lens, offering a focal length range from 3.9mm (wide-angle) to 85.8mm (telephoto). This zoom is remotely controllable via a standard PWM signal from a ground-based transmitter or flight controller, allowing for dynamic framing adjustments during flight. The camera is designed for reliable operation in a wide temperature range from 0°C to 70°C, making it suitable for demanding outdoor and industrial environments.

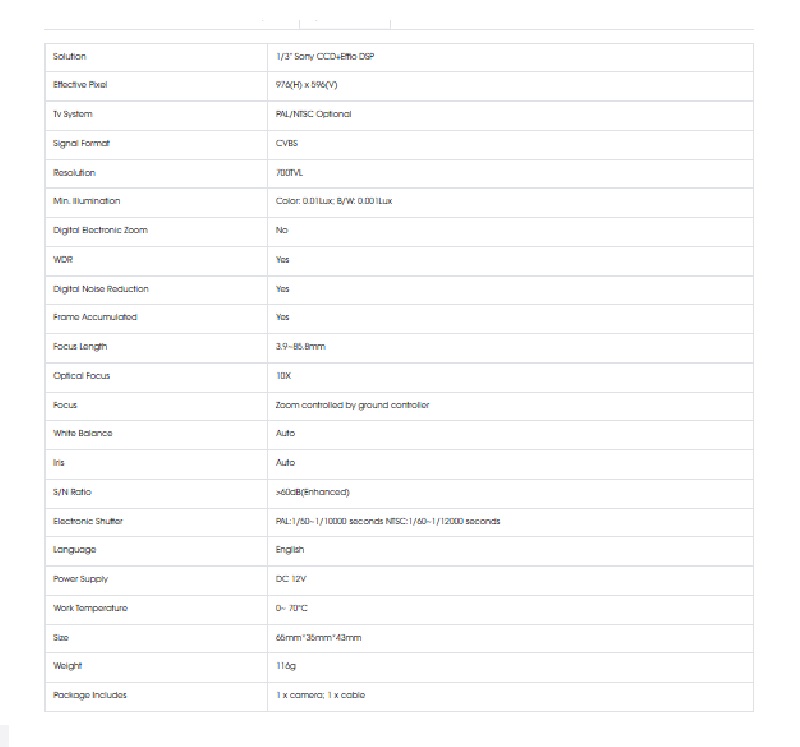

Additional Information
| Weight | 0.169 kg |
|---|---|
| Dimensions | 6.5 × 4.3 cm |
