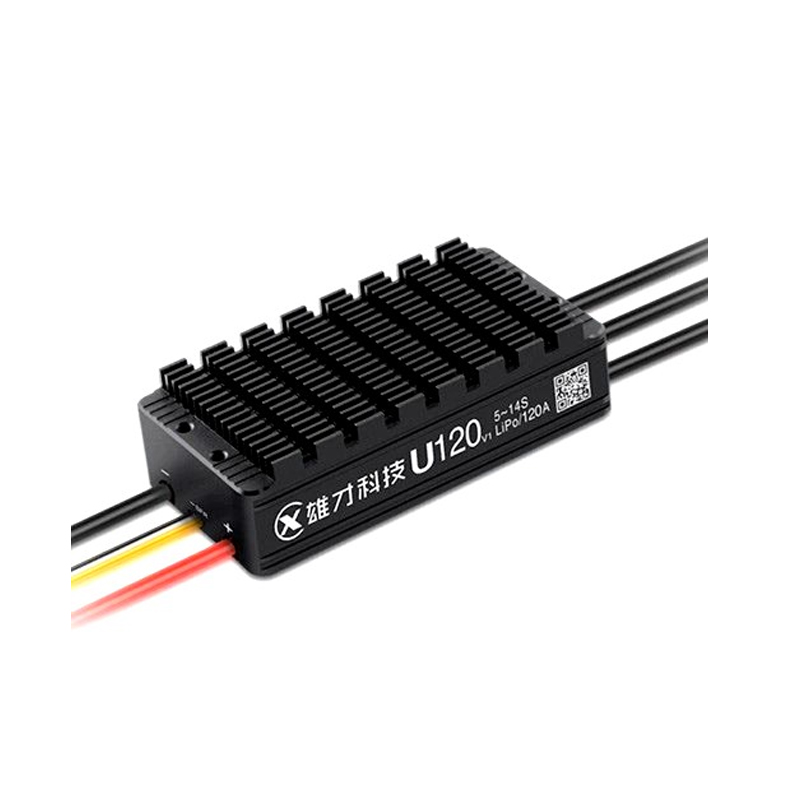

XC ESC ESC 120A 12S Brushless Motor Speed Controller
The XC ESC ESC is a high-performance 120A electronic speed controller designed for brushless DC motors, supporting 5-14S LiPo batteries for robust power delivery. With an IP67 rating, it ensures reliable operation in demanding UAV and RC applications.
Features
- Delivers robust 120A continuous and 180A peak current for high-power brushless motors.
- Features a broad 5-14S LiPo input voltage range, accommodating diverse power configurations.
- IP67 protection ensures exceptional dust and water resistance in harsh operating environments.
- Compact 81.8×41.2×23.2mm footprint with heavy-duty 12AWG power lines for reliable integration.
- Supports 3.3V/5V PWM input with a precise 1050us-1940us throttle pulse width for accurate control.
Out of stock
The XC ESC ESC is engineered for high-performance brushless DC motor control across a range of demanding applications, including UAVs, advanced robotics, and heavy-duty RC vehicles. It features a robust architecture capable of delivering a continuous 120A current, with an instantaneous peak of 180A, ensuring stable and reliable power management even under extreme loads. Its wide operating voltage of 5 to 14S LiPo provides significant flexibility for integrating with various power systems and motor setups.
Designed for durability and precise control, this electronic speed controller incorporates an IP67 protection rating, offering superior resistance to dust and water ingress, making it suitable for outdoor and challenging industrial environments. The ESC communicates via 3.3V/5V PWM signals, with an adjustable throttle pulse width from 1050us to 1940us, allowing for fine-tuned motor response. With its compact dimensions and ability to function across a broad temperature range of -25℃ to 60℃, the XC ESC ESC is an ideal solution for professionals requiring reliability and performance.
Additional Information
| Dimensions | 8.18 × 4.12 × 2.32 cm |
|---|
