EFT 5L Spraying System with Brushless Water Pump
SKU: DRFC-0541
📋 GST Invoice Available

EFT 5L Spraying System with Brushless Water Pump

₹8,399.00 (Inclusive of all taxes)
Out of Stock

The EFT 5L Spraying System integrates a powerful brushless water pump and high-pressure nozzles, providing precise liquid application for agricultural or industrial drone operations. Compatible with 12-14S setups, it ensures efficient and controlled spraying performance for various aerial tasks.

Features

  • Integrated 5L brushless water pump with 12-14S (44-60.9VDC) compatibility.
  • Features high-pressure nozzles for precise, consistent spray patterns.
  • Offers a maximum flow rate of 5 liters per minute for efficient coverage.
  • IP67 rated for robust dust and water resistance in demanding environments.
  • Designed for agricultural, inspection, and cleaning drone applications.

Out of stock

Description

The EFT 5L Spraying System is an advanced payload solution engineered for a wide range of drone-based liquid application tasks. This comprehensive set includes a robust 5L brushless water pump, high-pressure nozzles, and all necessary tubing and connectors. Operating efficiently on 12-14S LiPo batteries (44-60.9VDC), it delivers a powerful and consistent flow, making it ideal for precision agriculture, industrial inspection, and surface cleaning.

Featuring an IP67 protection standard, the spraying system is designed to withstand harsh outdoor conditions, offering superior resistance against dust and water ingress. The brushless pump technology ensures quiet operation, extended lifespan, and reliable performance compared to traditional pump designs. Its user-friendly interface allows for adjustable spray settings, ensuring customized liquid dispersion to meet the specific requirements of each application. With its durable construction and high-quality components, the EFT 5L Spraying System provides an efficient and effective solution for enhancing drone utility.

Key Features

  • **Versatile Application:** Suitable for diverse tasks including precision agriculture, pesticide spraying, fertilization, and surface cleaning via drone.
  • **High-Pressure Nozzles:** Ensures a consistent, fine mist spray pattern for uniform liquid distribution and optimal coverage.
  • **Powerful Brushless Pump:** The integrated 5L brushless water pump provides a strong, continuous flow of up to 5L/min, enabling efficient operation over large areas.
  • **Wide Voltage Compatibility:** Supports 12-14S LiPo battery systems, operating within a DC voltage range of 44-60.9V for broad platform integration.
  • **IP67 Protection:** Fully dust-tight and resistant to temporary immersion in water, ensuring durability and reliability in challenging environmental conditions.
  • **Adjustable PWM Control:** Features a fixed PWM throttle range (1050-1950μS) for precise control over pump speed and spray intensity.
  • **Quiet and Durable Operation:** Brushless motor technology reduces operational noise and extends the lifespan of the pump assembly.
  • **Modular Design:** Includes all necessary tubing, connectors, and power accessories for straightforward integration and setup on compatible drone frames.

Applications

  • Agricultural spraying and crop protection (pesticides, herbicides, fertilizers).
  • Industrial inspection and cleaning of roofs, solar panels, or structures.
  • Environmental monitoring and dispersal of specific liquid agents.
  • Forestry applications for pest control or fire suppression.
  • Research and development platforms requiring precise fluid delivery.

Technical Specifications

Operating Voltage12-14S (DC 44-60.9V)
Working Current<2A
Opening Flow Rate5L/min
Working Pressure0.35Mpa
Output Power150W
Protection StandardIP67
Fixed PWM Throttle Range1050-1950μS
Dimensions (L x W x H)123 x 76 x 52mm
Weight388g (approx. 338g without wire)

Frequently Asked Questions

What are the power requirements for the EFT 5L Spraying System?

The EFT 5L Spraying System operates efficiently with a 12-14S LiPo battery, providing a DC voltage range of 44-60.9V. It features a low working current of less than 2A, ensuring minimal power draw from your drone's main battery system during operation. This setup supports robust performance for various spraying applications.

How does the IP67 rating benefit this spraying system in drone applications?

The IP67 rating signifies that the EFT 5L Spraying System is dust-tight and protected against temporary immersion in water up to 1 meter for 30 minutes. This robust protection is crucial for drone applications, where the system is exposed to demanding outdoor conditions, including moisture, dust, and agricultural chemicals, ensuring reliable and safe operation.

Can the spray flow rate be adjusted, and what is its maximum output?

Yes, the system features a fixed PWM throttle range of 1050-1950μS for controlling the brushless water pump, allowing for precise adjustment of the spray flow rate. Its maximum opening flow rate is an impressive 5 liters per minute, enabling efficient and extensive coverage for various drone spraying tasks such as pest control or crop fertilization.

What type of nozzles are included, and what are their benefits?

The EFT 5L Spraying System includes four EFT Extension Rod High-Pressure Nozzles. These nozzles are engineered to produce a consistent and controlled spray pattern, ensuring uniform liquid application without overspray or dripping. This precision is vital for targeted pesticide application, even distribution of fertilizers, and effective surface cleaning in drone operations.

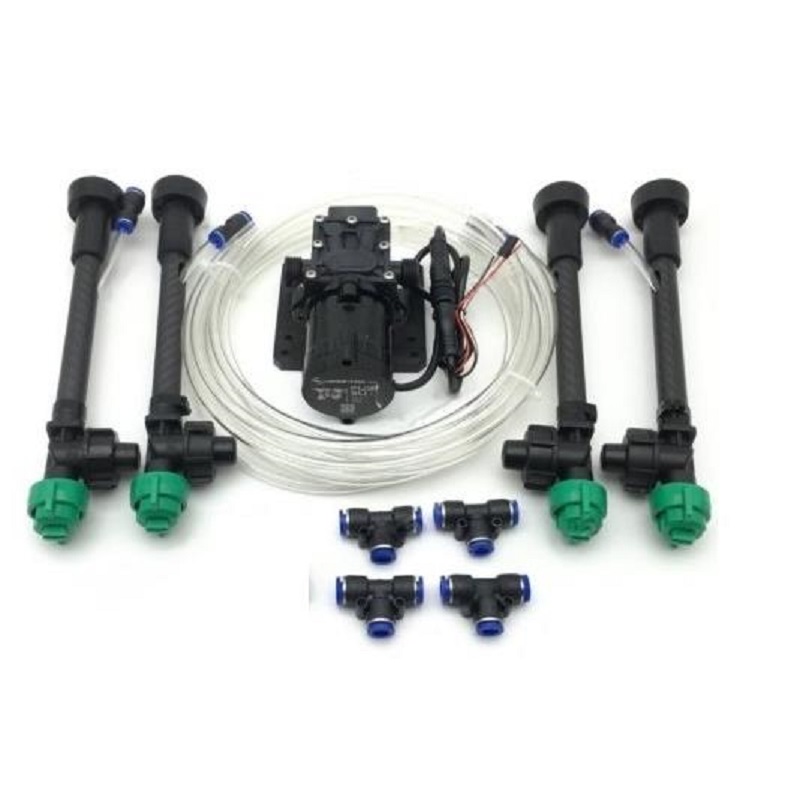

Package Includes

  • 1 x 5L Brushless Water Pump
  • 4 x EFT Extension Rod High-Pressure Nozzles
  • 1 x 4-meter Tube
  • 2 x 0.5-meter Tube (Different Diameter)
  • 6 x Pneumatic tube connector
  • 1 x Power Connector Accessories Set

Additional Information

Dimensions 12.3 × 7.6 × 5.2 cm
