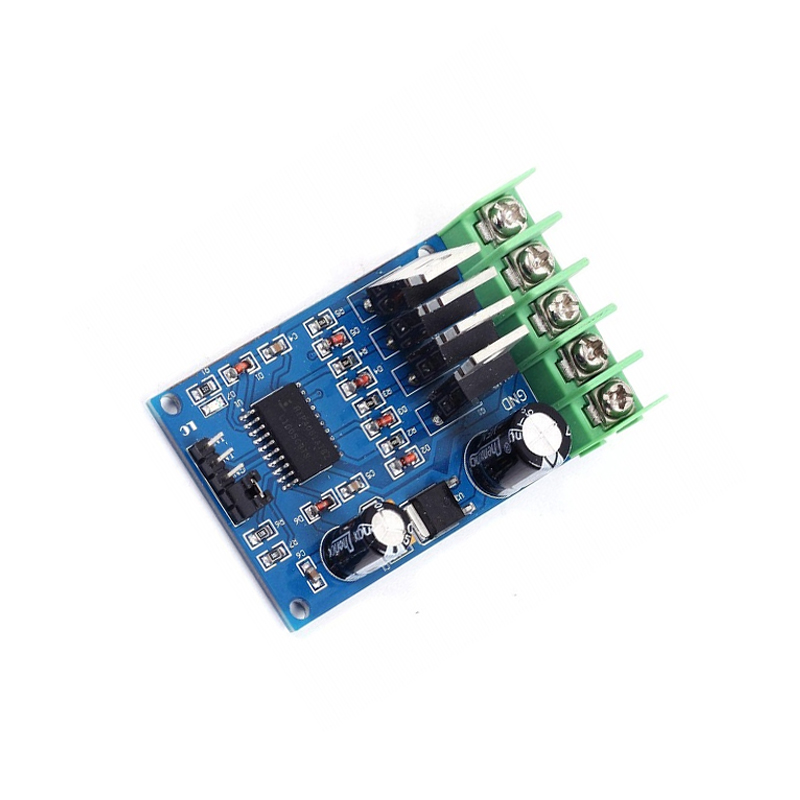

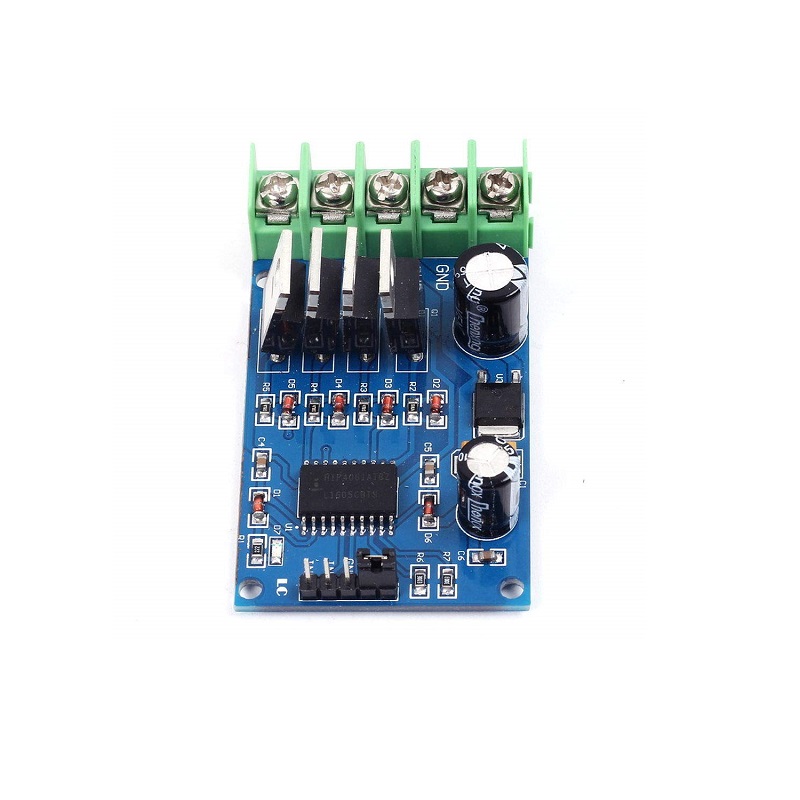

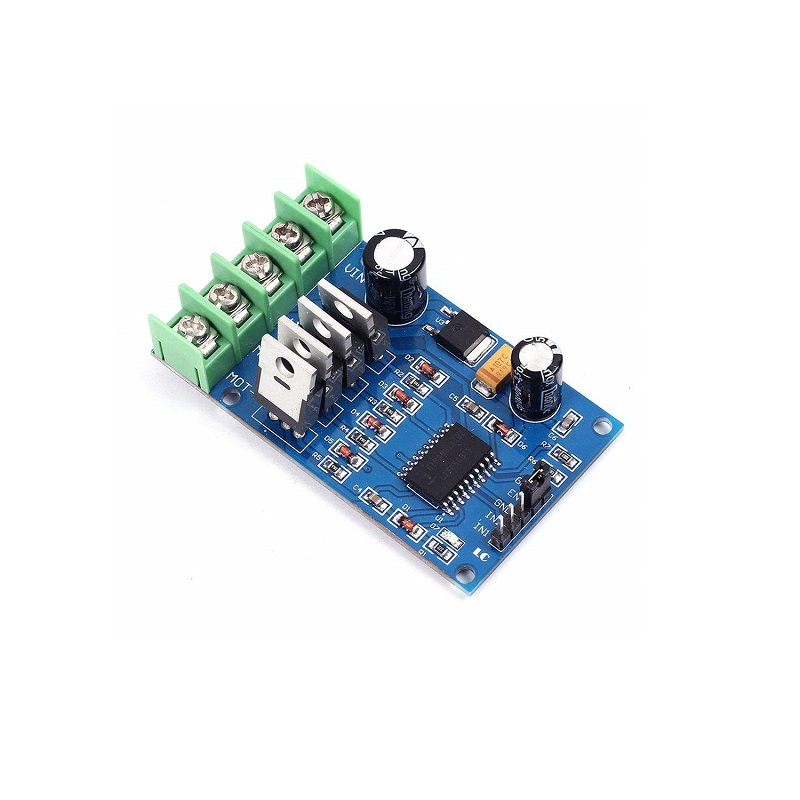

170W H-Bridge DC Motor Driver Module, NMOS Brake, 5-30V

This module is designed for controlling brushed DC motors. Its H-Bridge configuration allows for bidirectional rotation and precise speed adjustment. It is not intended for brushless DC (BLDC) motors, which require a different commutation strategy, typically found in drone-specific ESCs. The module's voltage range makes it suitable for various small to medium-power DC applications.

The module features two independent PWM inputs. One input typically controls the motor's forward direction, and the other controls the reverse. By adjusting the duty cycle of the respective PWM signal, you can precisely regulate the motor's speed from 0% to 100%. This dual-input system also enables dynamic braking, offering robust and immediate stopping capabilities.

The integrated NMOS brake function provides several advantages. It allows for instant stopping of the motor, which is crucial for precise positioning and safety in many applications. This feature also helps to dissipate motor back-EMF more efficiently, protecting the driver circuitry and improving overall system stability. It ensures faster and more controlled deceleration than simply cutting power.

The control logic inputs are designed to be compatible with standard microcontroller voltage levels, typically 3.3V or 5V. This flexibility allows for seamless integration with popular development boards like Arduino, Raspberry Pi, or other embedded systems. Always ensure your microcontroller's logic output voltage matches the module's input requirements to prevent damage.

While primarily a general-purpose DC motor driver, this module can be adapted for robotic applications or specific drone components that utilize brushed DC motors for auxiliary functions like payload deployment, gimbal stabilization, or steerable landing gear. However, it is not suitable for driving the main brushless propulsion motors of FPV racing or freestyle drones.
