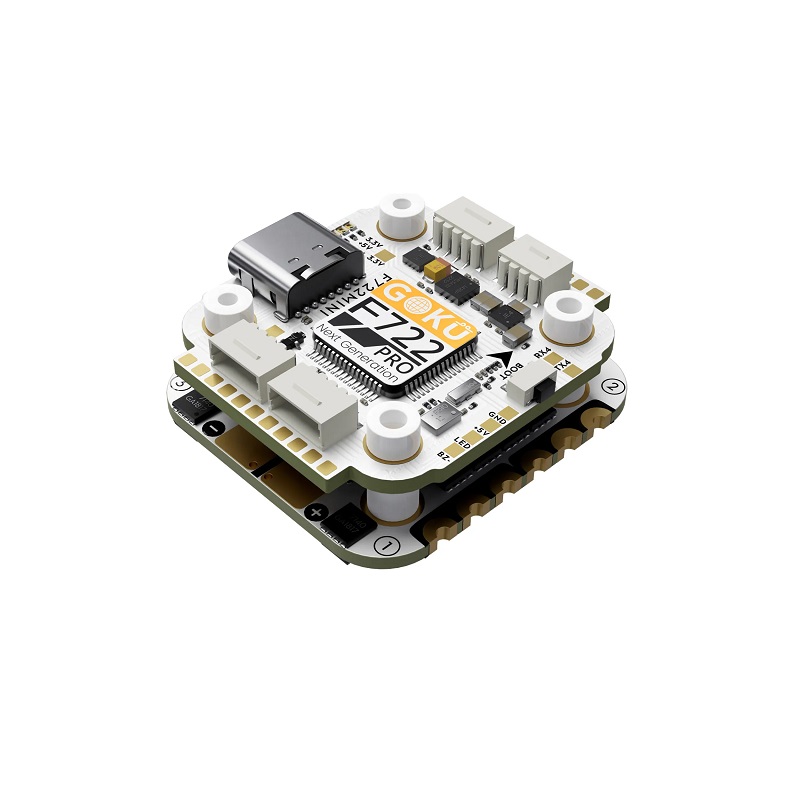

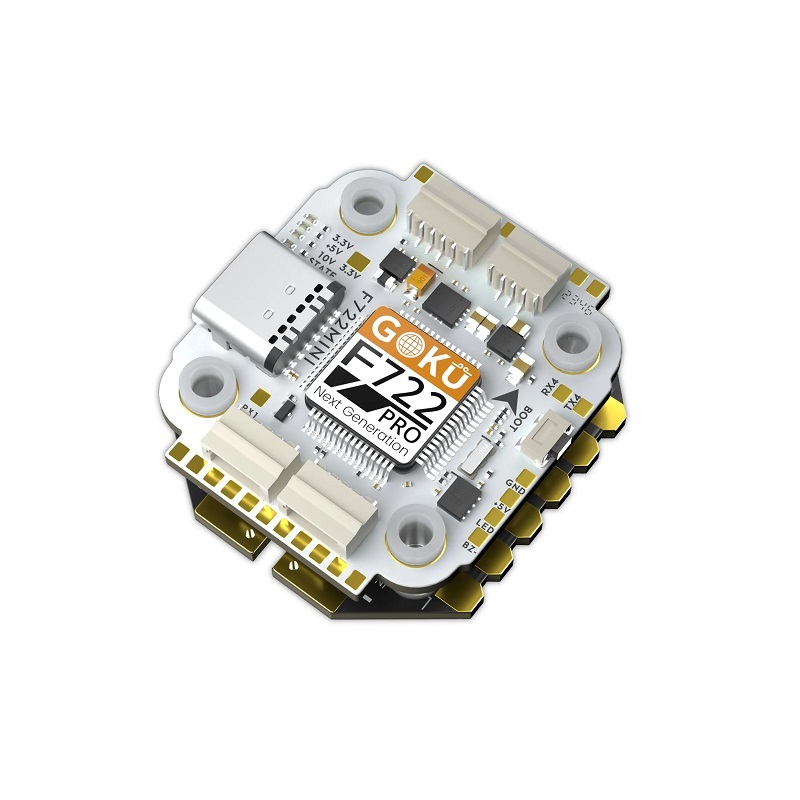

Flywoo GOKU F722 PRO V2 Flight Controller (MPU6000) - 30x30mm
The Flywoo GOKU F722 PRO V2 is a 30x30mm flight controller built around the high-performance STM32F722 MCU and MPU6000 gyro, designed for 2-6S FPV drone builds. It features plug-and-play socket connectors for simplified wiring, dual 4-in-1 ESC compatibility, and robust 10V/5V BEC outputs for powering VTX and peripherals.
Features
- STM32F722 MCU (216MHz) with MPU6000 gyroscope for precise, high-speed flight control.
- Plug-and-play socket design for all ports, enabling modular installation without soldering.
- Supports 8 motor outputs and features dual 4-in-1 ESC socket compatibility.
- Integrated 10V/3A and 5V/3A BEC for stable power to VTX, cameras, and peripherals.
- 16MB onboard black box for extensive flight data logging and post-flight analysis.
Out of stock
The Flywoo GOKU F722 PRO V2 flight controller is engineered for builders seeking a high-performance, user-friendly control hub for 5-inch and larger FPV drones. Its core is the STM32F722 microcontroller, which delivers a 216MHz processing speed for rapid loop times and responsive flight handling when running Betaflight or INAV firmware. The proven MPU6000 gyroscope provides reliable, low-noise attitude data essential for both acrobatic freestyle and long-range cruising.
Electrical integration is streamlined through a comprehensive socket-and-plug system for UART, I2C, and SBUS connections, drastically reducing build time and simplifying maintenance. The board accepts a wide 7.4V to 26V (2-6S LiPo) input range and supplies clean, regulated 10V and 5V power rails, each capable of 3A continuous current, ensuring stable operation for power-hungry digital VTX systems and other accessories. The reserved dual 4-in-1 ESC sockets offer flexible powertrain configuration options.
Additional Information
| Weight | 0.16 kg |
|---|---|
| Dimensions | 10 × 10 × 5 cm |
