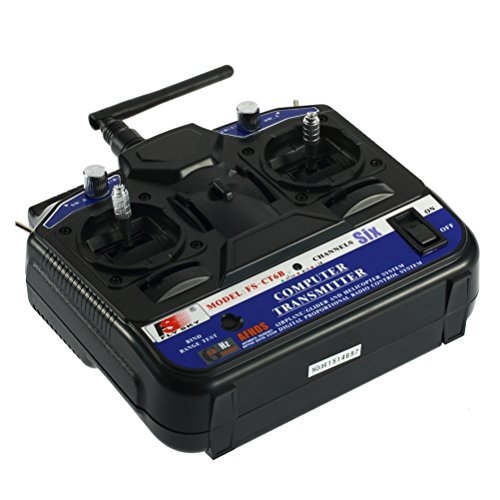

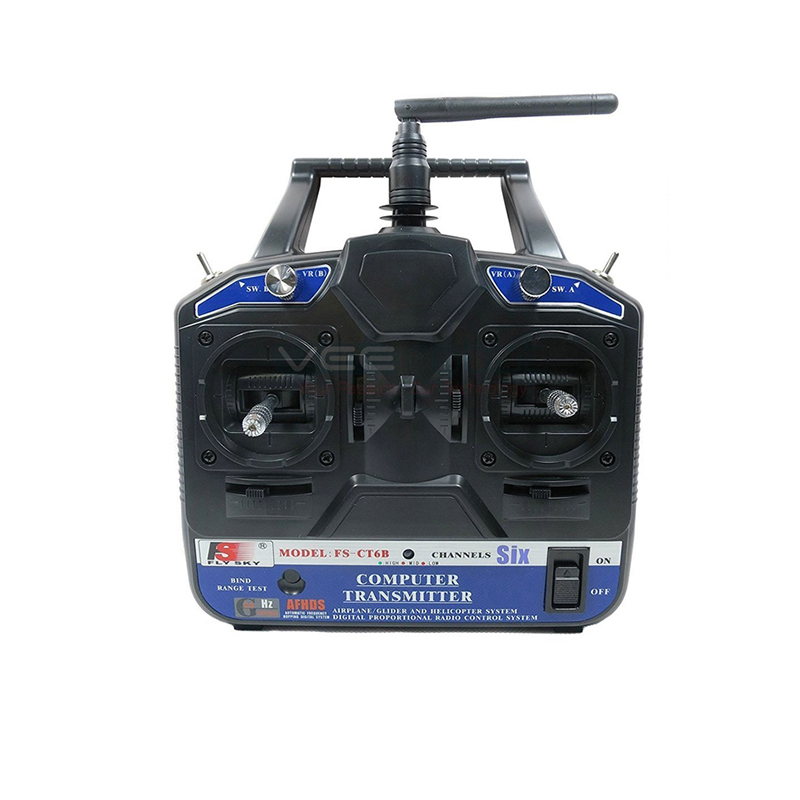

FlySky CT6B 2.4GHz 6CH Transmitter with FS-R6B Receiver

₹3,639.00 (Inclusive of all taxes)
Out of Stock

The FlySky CT6B is a 2.4GHz 6-channel radio transmitter and receiver system designed for entry-level multirotor, airplane, and helicopter applications. It features 8-model memory, digital control, and PC programmability for versatile setup and operation.

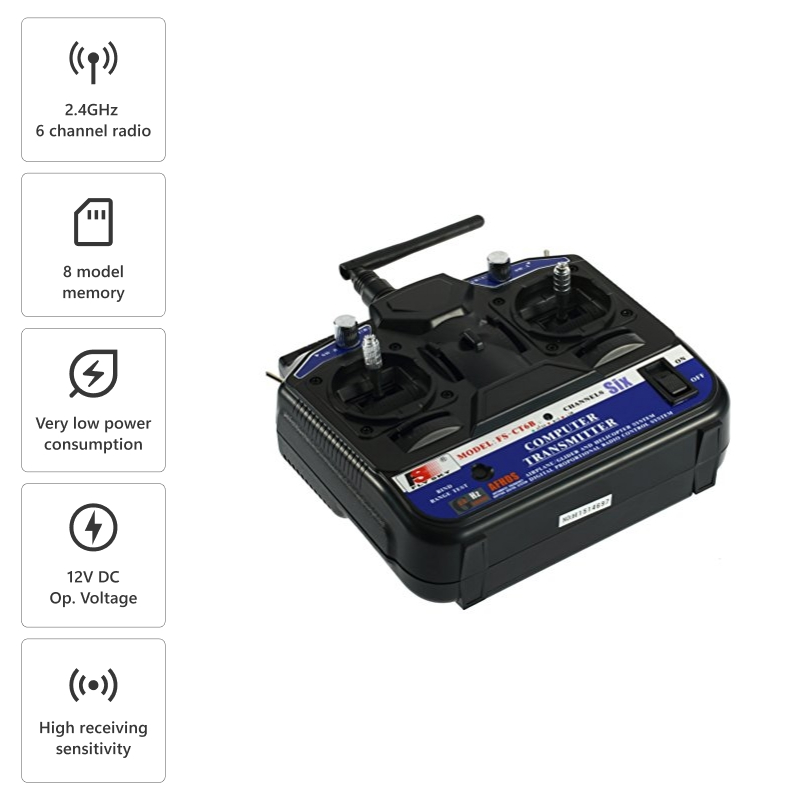

Features

  • Full-range 2.4GHz 6-channel radio system with active/passive anti-jamming.
  • Supports 4 model types: Airplane, Heli90, Heli120, and Heli140.
  • 8-model memory with digital trim and dual-rate/exponential programming.
  • PC configurable via included USB interface cable and software.

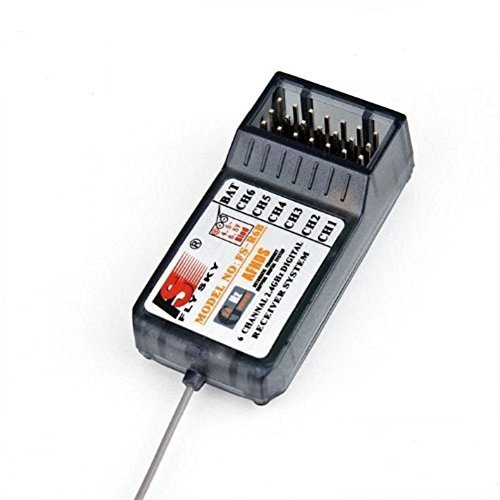

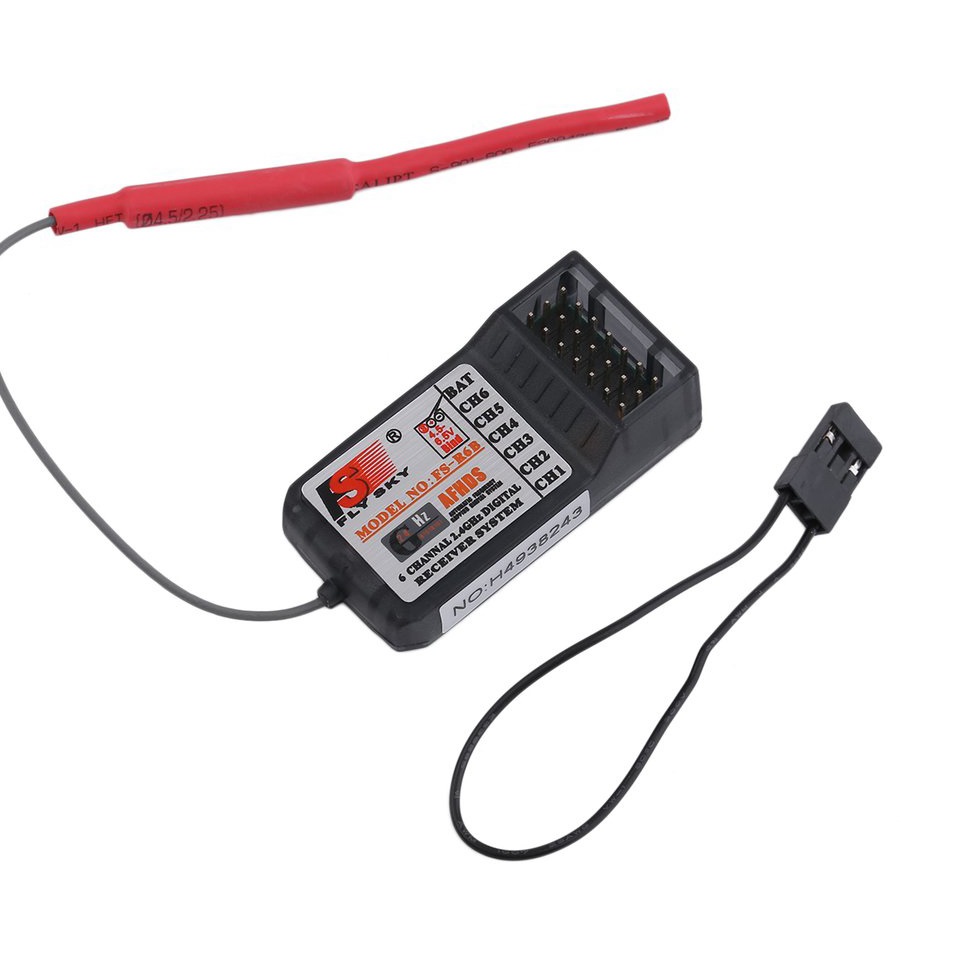

  • Includes FS-R6B 2.4GHz receiver with high receiving sensitivity.

Out of stock

Description

The FlySky CT6B transmitter paired with the FS-R6B receiver provides a reliable, entry-level radio link for RC aircraft and multirotors. The system utilizes 2.4GHz GFSK modulation for stable signal transmission with low power consumption and active anti-interference capabilities, making it suitable for flying in diverse RF environments.

Designed for flexibility, the transmitter offers 8 memory slots and supports programming via PC for advanced mixing, servo reversing, and endpoint adjustments. Its ergonomic layout and digital trims allow for precise control inputs, essential for training pilots or operating basic drone platforms.

Key Features

  • 2.4GHz GFSK modulation with high receiving sensitivity for stable control link.
  • Active and passive anti-jamming circuitry enhances signal reliability in crowded RF spectrums.
  • Low-power design extends operational time from a single set of AA batteries.
  • PC-programmable via included USB cable and software for detailed model parameter adjustments.

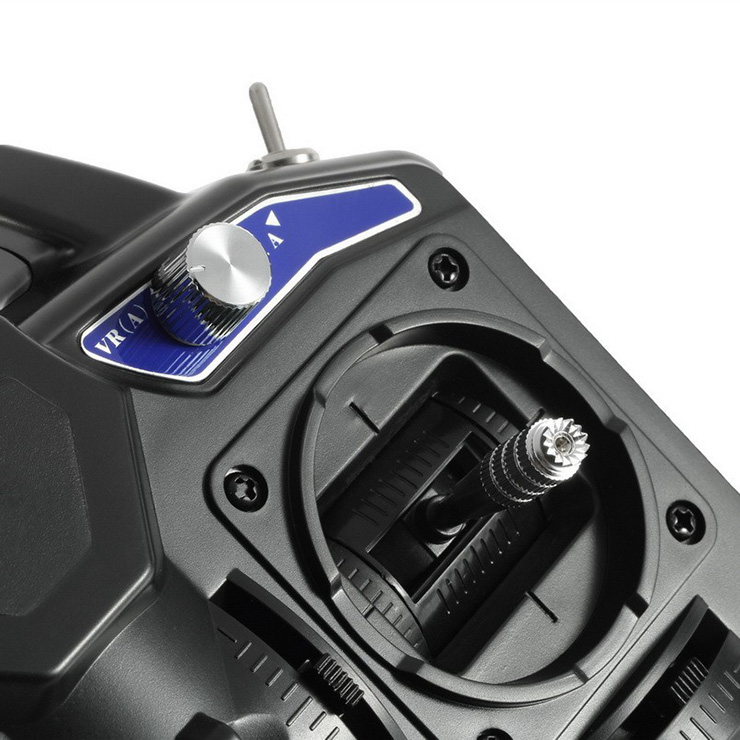

  • Ergonomic pistol-grip transmitter design with digital trims and adjustable stick tension.
  • Linear spread spectrum antenna system for consistent signal coverage across the operating bandwidth.

Applications

  • Entry-level and trainer FPV quadcopters and multirotors requiring a basic 6-channel control link.
  • RC airplane and glider platforms for sport flying and beginner pilot training.
  • RC helicopter models (90, 120, 140-size) compatible with the included helicopter programming modes.
  • DIY drone and robotics projects needing a simple, programmable radio control system.

Technical Specifications

Channels6
Frequency2.4 GHz
ModulationGFSK
Model Memory8
Model TypesAirplane, Heli90, Heli120, Heli140
Operating Voltage (Tx)12 VDC (8x AA batteries)
Charging PortYes
ColorBlack
Transmitter Dimensions (LxWxH)189 x 97 x 295 mm
Transmitter Weight511 g

Frequently Asked Questions

What types of RC models can I control with the FlySky CT6B transmitter?

The FlySky CT6B transmitter is pre-configured with four model types: Airplane, Heli90, Heli120, and Heli140. It is suitable for controlling a wide range of entry-level multirotor drones, fixed-wing aircraft, and scale helicopters that require up to 6 control channels. The system is commonly used for trainer quadcopters and basic FPV builds.

How do I program and configure the CT6B transmitter?

The CT6B transmitter can be programmed directly via its onboard menu for basic settings like servo reversing, dual rates, and model memory. For advanced mixing and detailed parameter adjustments, you can connect the transmitter to a Windows PC using the included USB interface cable and software CD. This allows for precise customization of control curves and switch assignments.

What is the operating voltage and power source for the transmitter?

The FlySky CT6B transmitter operates on 12 VDC, typically supplied by 8 AA batteries installed in the battery compartment. The unit also includes a charging port, allowing for the use of an optional rechargeable battery pack. The receiver (FS-R6B) operates on a standard servo voltage range of 4.8V to 6.0V, supplied by your aircraft's BEC or flight controller.

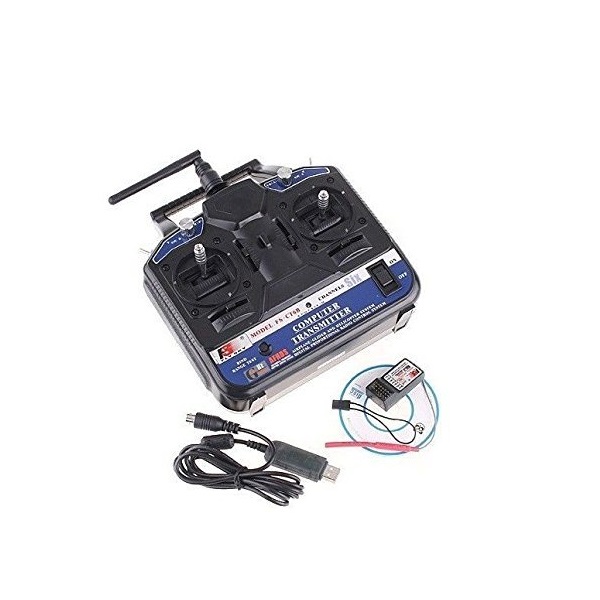

Package Includes

  • 1 x FlySky CT6B Transmitter
  • 1 x FS-R6B 2.4GHz Receiver

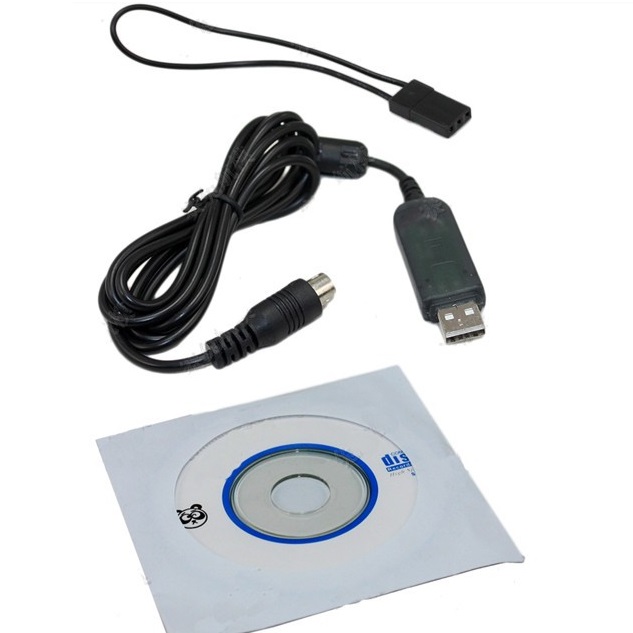

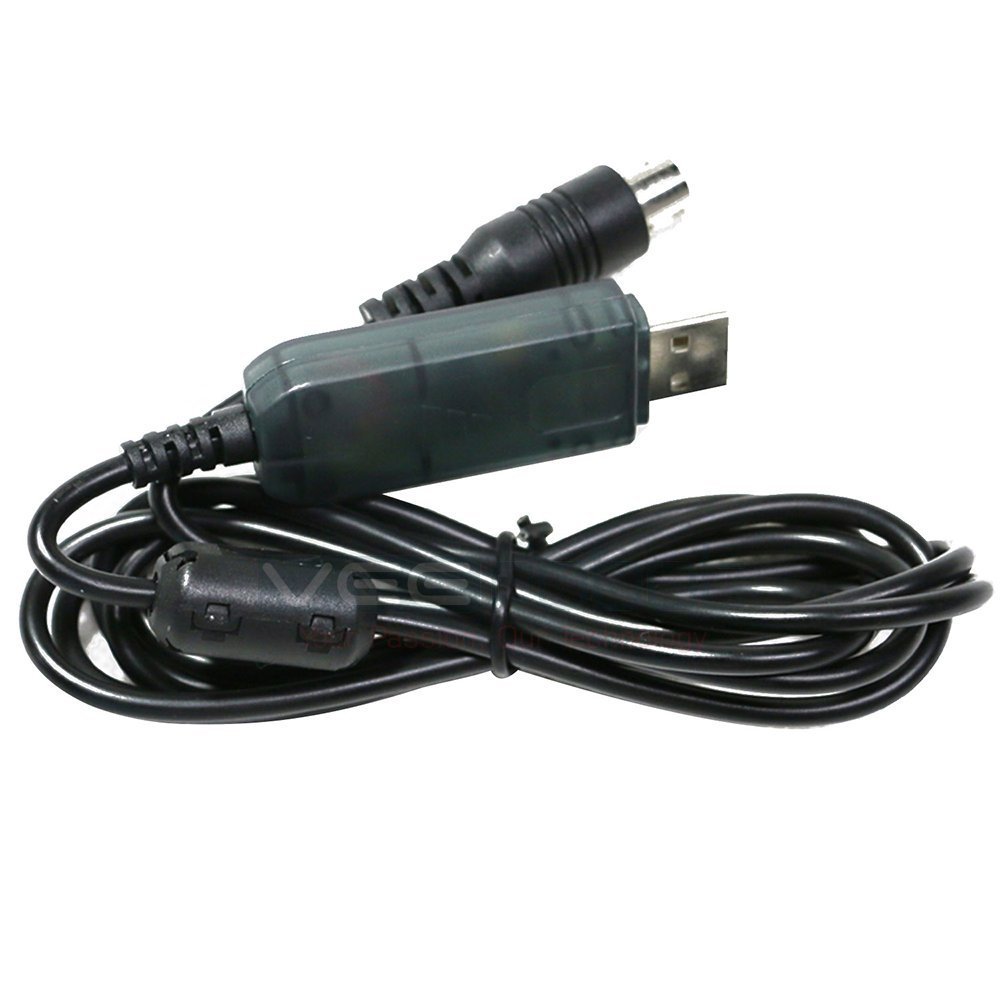

  • 1 x USB Interface Cable
  • 1 x Software CD
  • 1 x Receiver Binding Cable
  • 1 x User Manual

Additional Information

Weight 0.511 kg
Dimensions 18.9 × 9.7 × 29.5 cm
