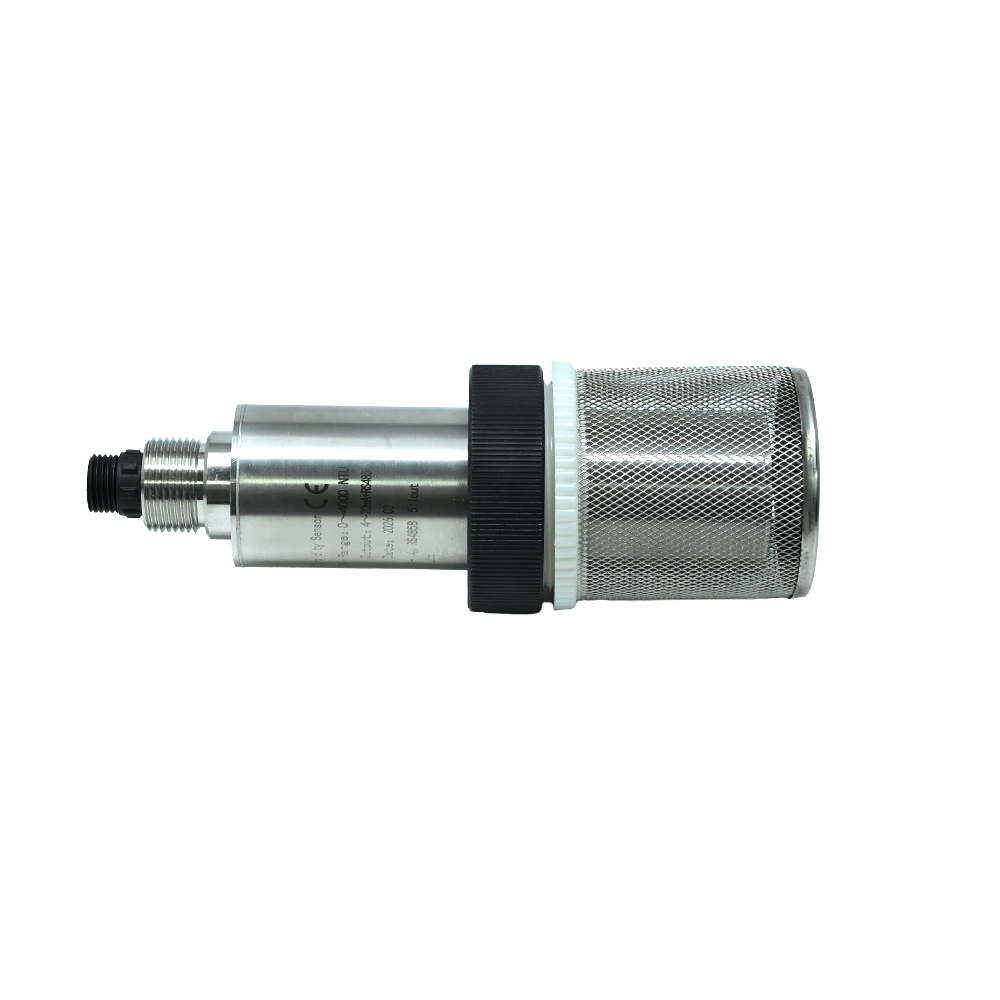

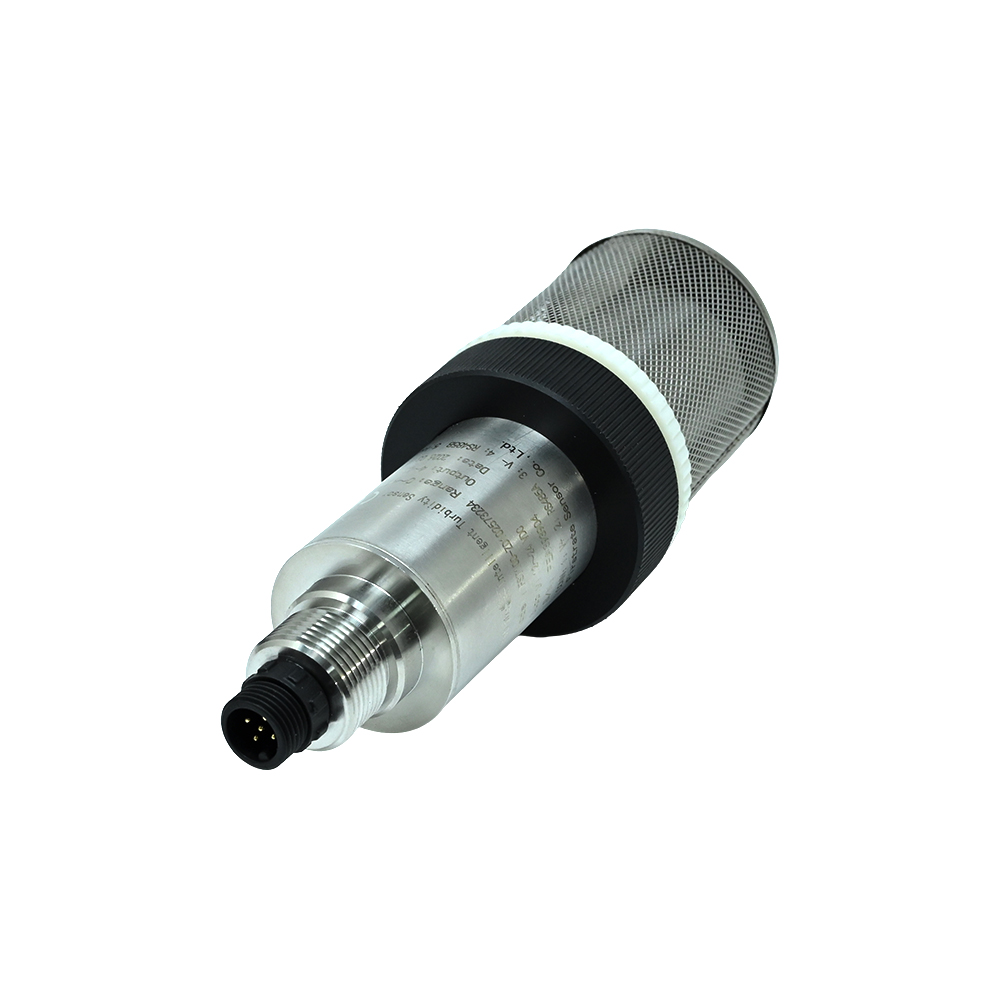

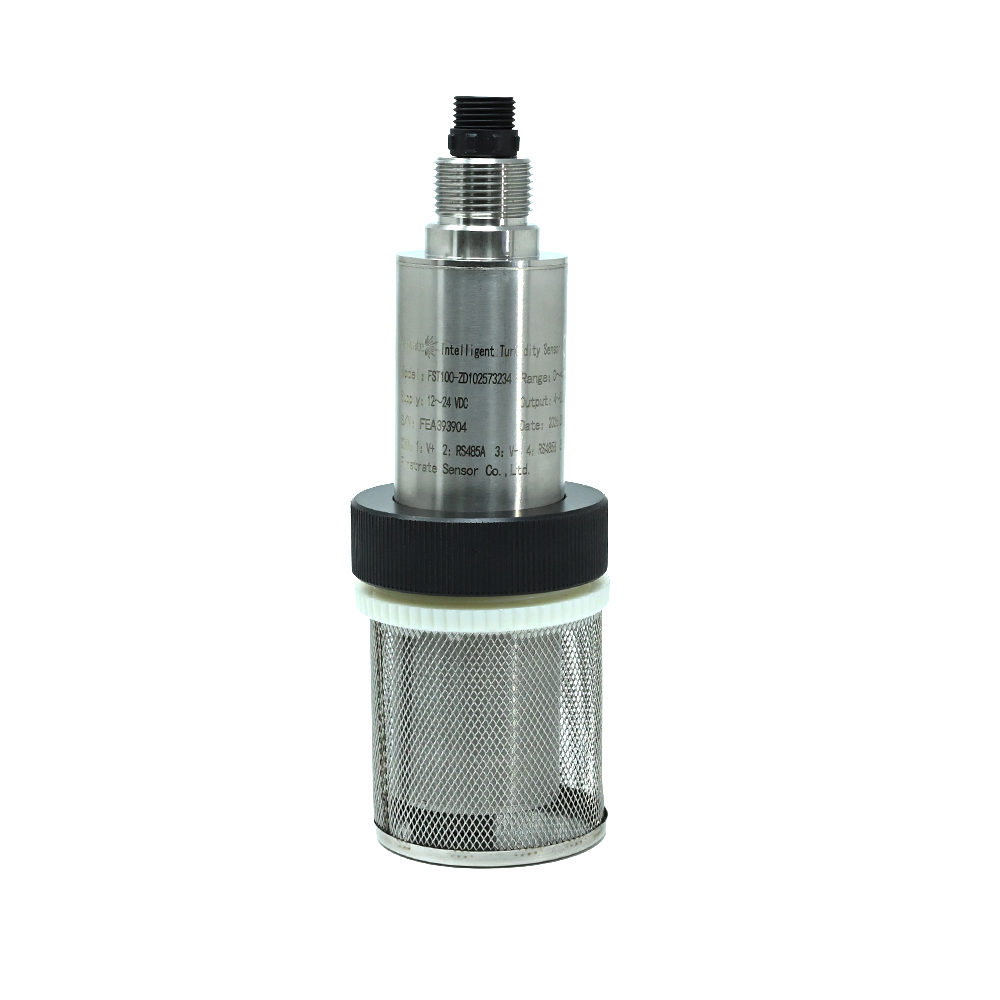

FirstRate ST100-ZD102 Turbidity Sensor, 0-4000 NTU, 4-20mA & RS485 Modbus, 316 Stainless Steel, IP68, 5m Cable
The FirstRate ST100-ZD102 is a high-precision turbidity sensor designed for industrial water quality monitoring, featuring a 0-4000 NTU measurement range with 4-20mA analog and RS485 Modbus digital outputs for seamless integration into PLCs, SCADA systems, and data acquisition units.
Features
- High-precision turbidity measurement across a 0-4000 NTU range with ±5% FS accuracy.
- Dual output signals: industry-standard 4-20mA analog and RS485 Modbus-RTU digital communication.
- Robust 316 stainless steel construction with IP68 rating for durability in harsh, submerged environments.
- Wide operating temperature range from 0 to 80°C, suitable for diverse industrial processes.

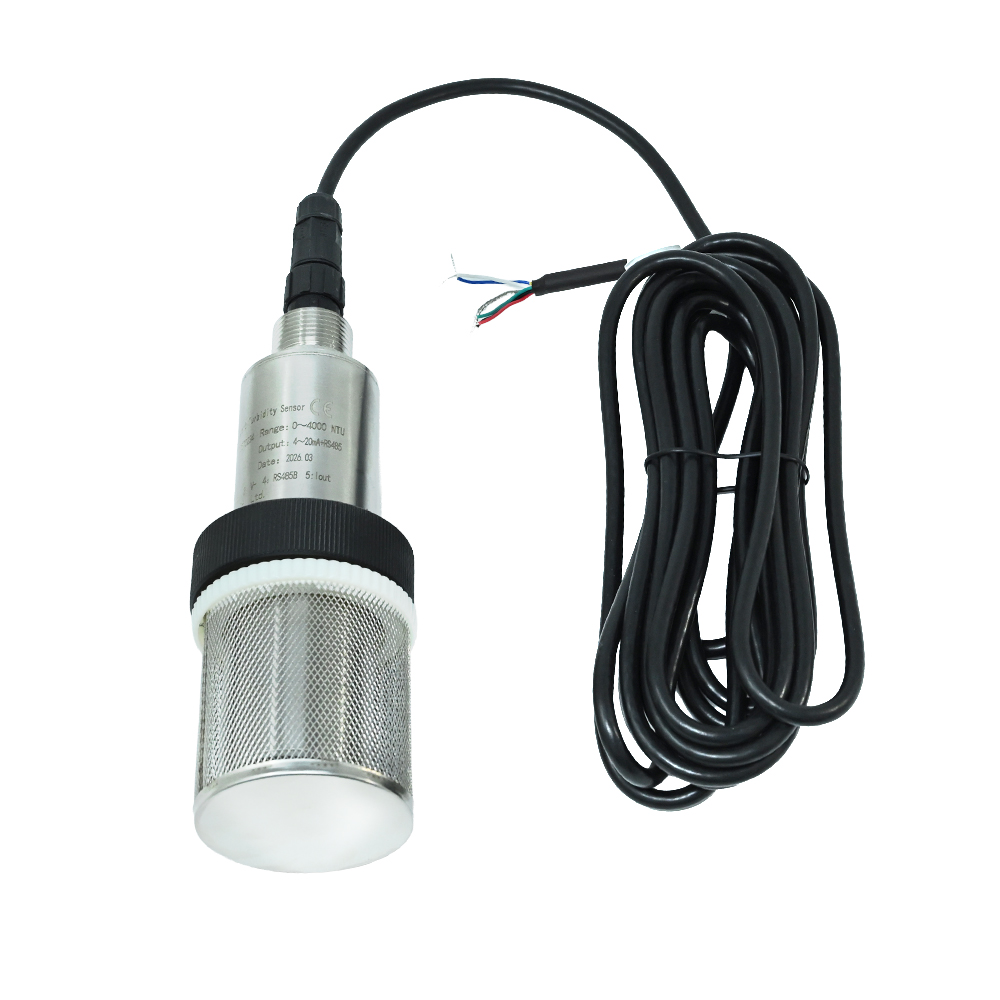

- Includes a 5-meter cable for flexible installation in tanks, pipelines, and treatment systems.
Out of stock
The FirstRate ST100-ZD102 turbidity sensor employs a nephelometric optical sensing principle, where a light source illuminates suspended particles in a liquid and a photodetector measures the scattered light intensity. This method provides reliable and repeatable turbidity readings critical for process control and water quality compliance. The sensor’s signal conditioning electronics deliver stable, low-noise outputs suitable for long-distance transmission in industrial settings.
Encased in corrosion-resistant 316 stainless steel and rated IP68, the sensor is built to withstand continuous immersion, high-pressure washdowns, and chemically aggressive environments. Its wide 9-30 VDC input voltage range, with 12 VDC recommended, ensures compatibility with standard industrial power supplies, making it a versatile solution for monitoring clarifiers, filter effluents, and raw water intakes.
Additional Information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 15 × 15 × 20 cm |
