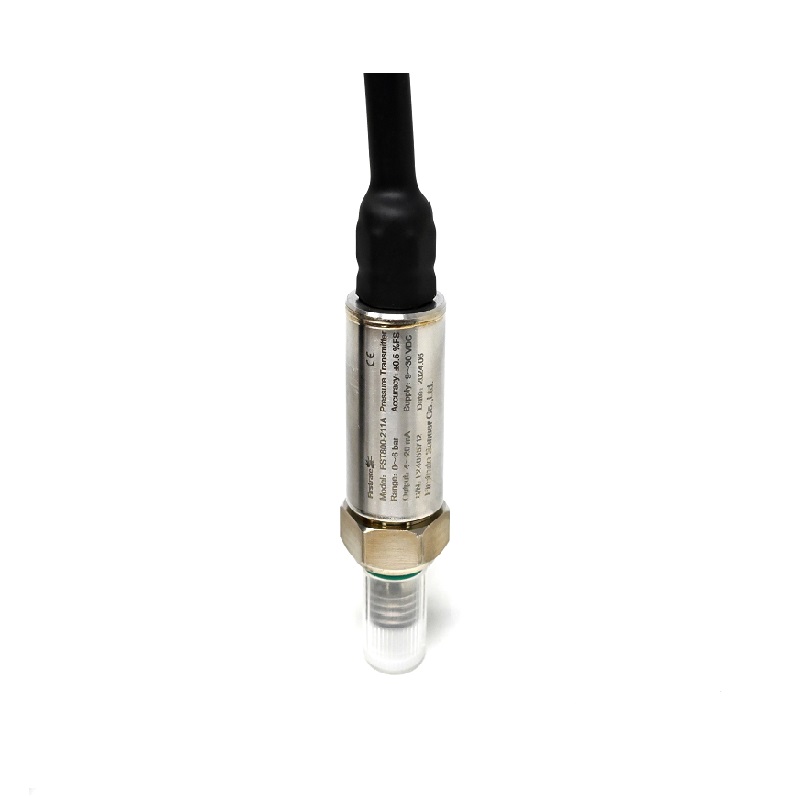

FirstRate FST800-211A Pressure Transmitter Sensor, 0-6 bar Gauge, 4-20mA Output, 9-30VDC, G1/4 Port, 3M Cable

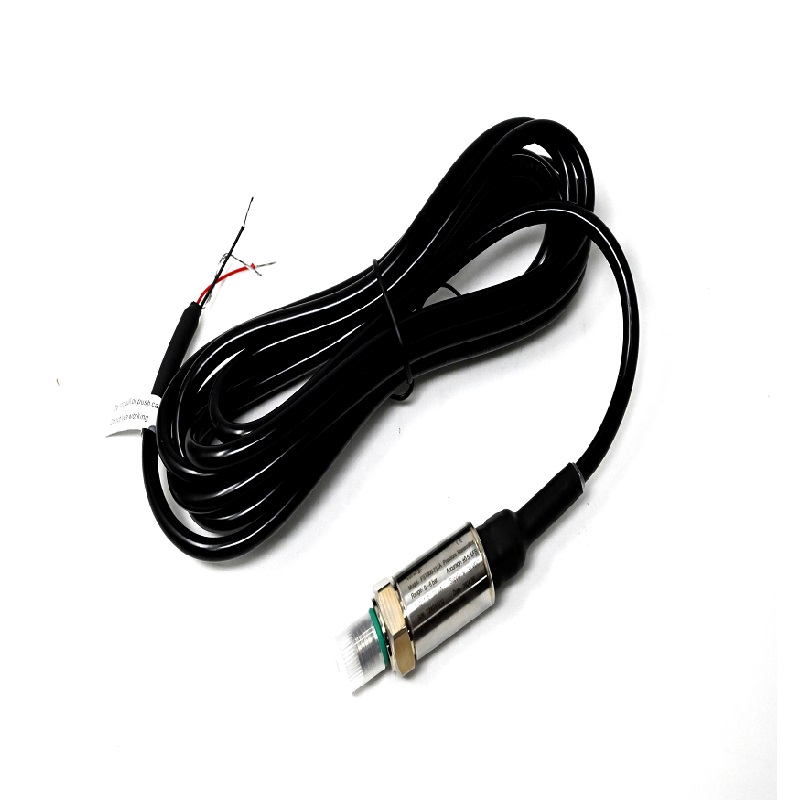

FirstRate FST800-211A Pressure Transmitter Sensor, 0-6 bar Gauge, 4-20mA Output, 9-30VDC, G1/4 Port, 3M Cable - Image 2

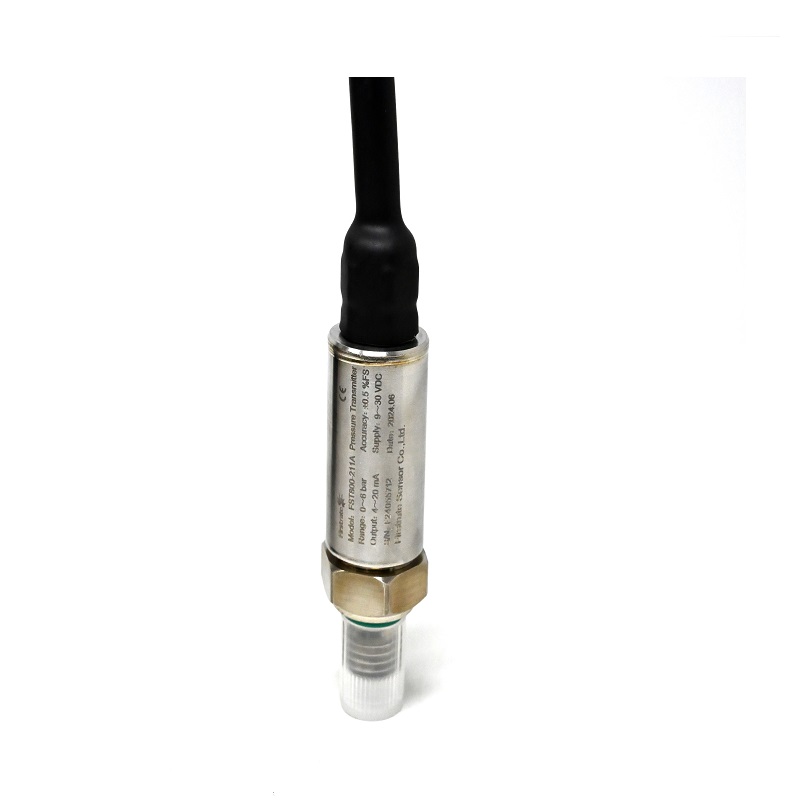

FirstRate FST800-211A Pressure Transmitter Sensor, 0-6 bar Gauge, 4-20mA Output, 9-30VDC, G1/4 Port, 3M Cable - Image 3
SKU: SENS-2173
📋 GST Invoice Available

FirstRate FST800-211A Pressure Transmitter Sensor, 0-6 bar Gauge, 4-20mA Output, 9-30VDC, G1/4 Port, 3M Cable

₹5,099.00 (Inclusive of all taxes)
Out of Stock

The FirstRate FST800-211A is a high-precision industrial pressure transmitter delivering a standard 4-20mA current loop output for seamless integration with PLCs, DCS, and data acquisition systems. It features a robust 17-4PH stainless steel construction with a G1/4 male pressure port and a 3-meter direct lead cable for reliable operation in demanding process control environments.

Features

  • High-precision 4-20mA current output transmitter with 0.5% FS accuracy
  • Wide 9-30VDC loop-powered supply range for flexible system integration
  • Robust 17-4PH stainless steel construction with IP65 environmental protection
  • G1/4 male pressure port and 3-meter direct lead cable for industrial installation
  • Advanced temperature digital compensation for stable performance across a -40°C to 85°C operating range

Out of stock

Description

The FST800-211A pressure transmitter utilizes a glass micro-melting process on its 17-4PH stainless steel elastomer, creating a hermetically sealed structure that eliminates leakage risks. This design ensures excellent long-term stability and high-frequency response for dynamic pressure monitoring applications.

Engineered for industrial durability, the transmitter incorporates robust protection against lightning, RF, and electromagnetic interference (EMI), along with anti-surge and reverse polarity safeguards. Its wide operating temperature range, supported by digital compensation, guarantees reliable performance in harsh environments from hydraulic systems to automated manufacturing lines.

Key Features

  • 0.5% FS high accuracy with excellent long-term stability
  • Wide 9-30VDC loop-powered supply voltage compatibility
  • Industrial-grade 17-4PH stainless steel sensor body with IP65 rating
  • Integrated lightning protection, RF/EMI immunity, and reverse polarity protection
  • Advanced digital temperature compensation across a broad operating range
  • High overload capability (300% FS) and burst pressure rating (500% FS)
  • G1/4 male pressure port with direct 3-meter lead wire connection
  • Compact form factor designed for easy installation in confined spaces

Applications

  • Industrial process control and monitoring in hydraulic & pneumatic systems
  • Automated pressure detection and feedback in manufacturing machinery
  • Pump and compressor station monitoring for flow and pressure regulation
  • Water treatment and filtration system pressure management
  • Condition monitoring in heavy industrial equipment and mobile hydraulics

Technical Specifications

Model NumberFST800-211A
Pressure Range0 - 6 bar (Gauge)
Output Signal4-20mA (2-wire)
Supply Voltage9 - 30 VDC
Accuracy±0.5% Full Scale (FS)
Pressure PortG1/4 Male
Electrical ConnectionDirect Lead (3M Cable)
Housing Material17-4PH Stainless Steel
Protection RatingIP65
Overload Pressure300% FS
Burst Pressure500% FS
Operating Temperature-40°C to 85°C
Storage Temperature-40°C to 85°C

Frequently Asked Questions

What is the wiring configuration for this 4-20mA pressure transmitter?

The FST800-211A is a standard 2-wire, loop-powered transmitter. Connect the positive supply (9-30VDC) to the red wire, and the negative supply/input to your PLC or receiver is connected to the black wire. The 4-20mA signal is modulated over this same two-wire loop, simplifying installation.

What pressure media is this sensor compatible with?

The sensor's 17-4PH stainless steel wetted parts and G1/4 male port are compatible with a wide range of industrial media, including air, water, hydraulic oils, and many non-corrosive gases and liquids. Always verify chemical compatibility for aggressive media.

How do I mount and install this pressure transmitter?

Mount the transmitter using the G1/4 male thread into a corresponding female port on your system. Use appropriate thread sealant (e.g., PTFE tape) for gas or liquid-tight sealing. Ensure the 3-meter cable is routed away from high-voltage or high-frequency noise sources to maintain signal integrity.

What is the meaning of the 0.5% FS accuracy rating?

A 0.5% Full Scale (FS) accuracy means the maximum error across the entire 0-6 bar measurement range is ±0.03 bar. This high precision is suitable for most industrial monitoring and control applications, providing reliable data for process automation.

Package Includes

  • 1 x FirstRate FST800-211A Pressure Transmitter Sensor

Additional Information

Weight 0.254 kg
Dimensions 21 × 10 × 5 cm
