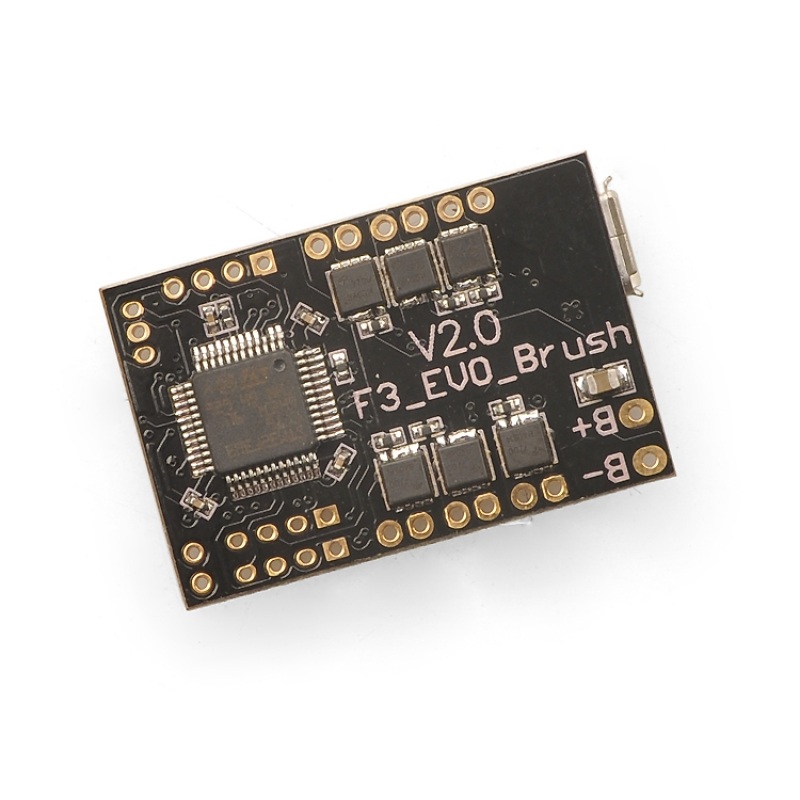

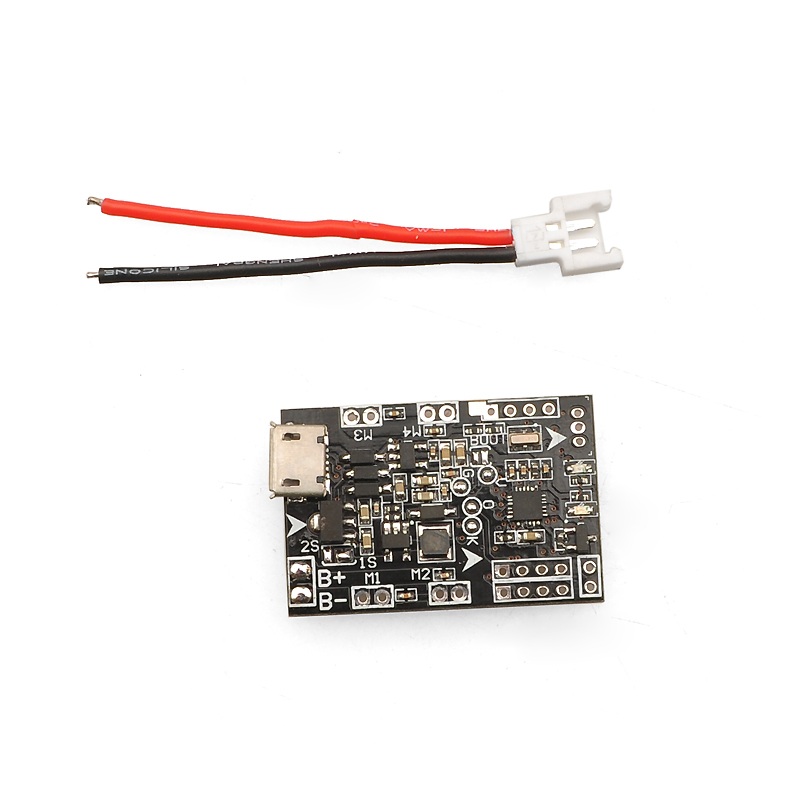

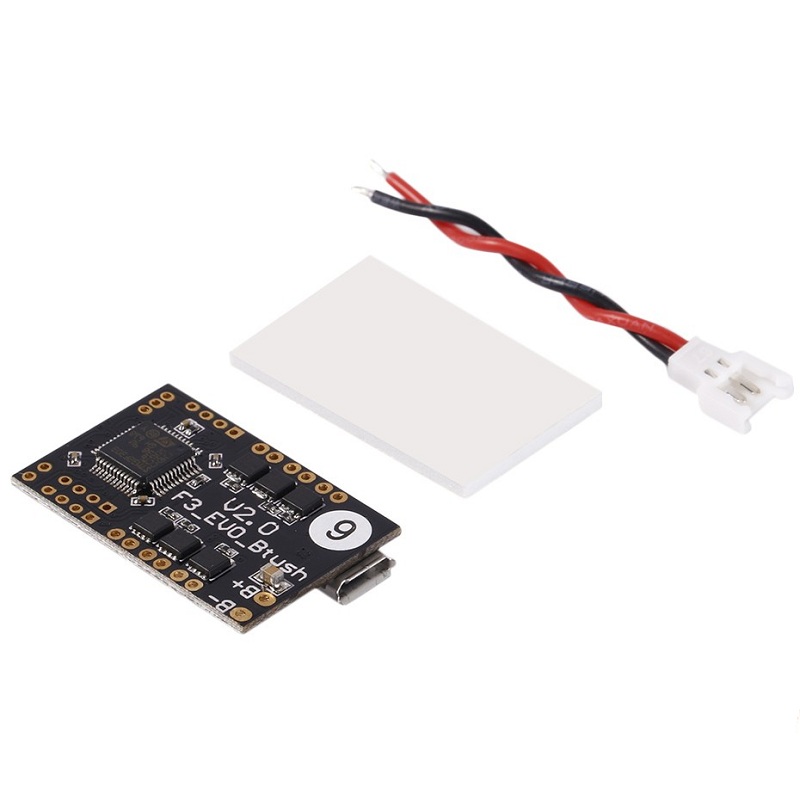

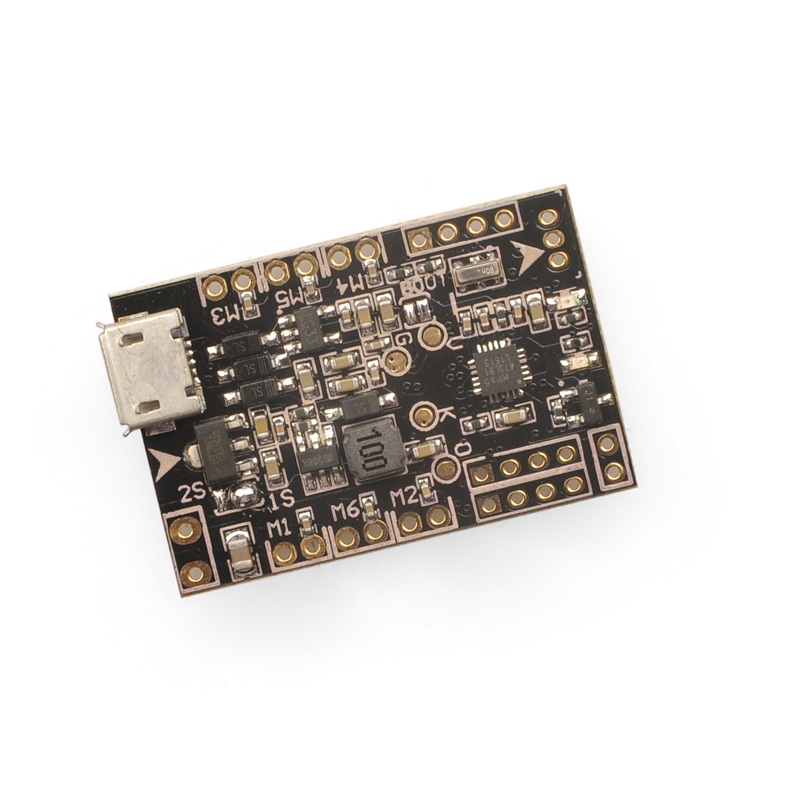

F3 EVO V2.0 Flight Controller
The F3 EVO V2.0 is a compact 32-bit flight controller based on the STM32F303CCT6 processor and MPU6500 IMU, designed for micro brushed-motor quads. It supports 1S-2S LiPo power, PPM/SBUS/DSM receiver inputs, and features a 10A+ BEC for powering peripherals.
Features
- STM32F303CCT6 processor with MPU6500 6-axis gyro/accelerometer for stable flight performance.
- Supports 1S (4.2V) and 2S (8.4V) LiPo input with integrated battery voltage monitoring.
- High-current NMOS BEC provides up to 10A continuous output for powering cameras and LEDs.
- Compatible with PPM, SBUS, and DSM receiver protocols for flexible radio system integration.
- Compact 32.5mm x 22mm footprint with 1.2mm PCB thickness, ideal for micro and brushed-motor drone builds.
Out of stock
The F3 EVO V2.0 Flight Controller is engineered for micro-sized drones utilizing brushed motors, providing a full-featured control system in a minimal footprint. Its core is the STM32F303CCT6 microcontroller paired with an MPU6500 inertial measurement unit, delivering the processing power and sensor stability required for precise flight control on the Cleanflight firmware platform.
Electrical design includes robust power management capable of direct 1S or 2S LiPo input, with a high-current NMOS transistor-based BEC that can sustain over 10A. This allows it to reliably power low-power FPV equipment like 25mW cameras directly from the board’s 5V output. The controller includes dedicated interfaces for a buzzer and LED strips, enhancing functionality for orientation and low-battery alerts.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.2 × 3.25 cm |
