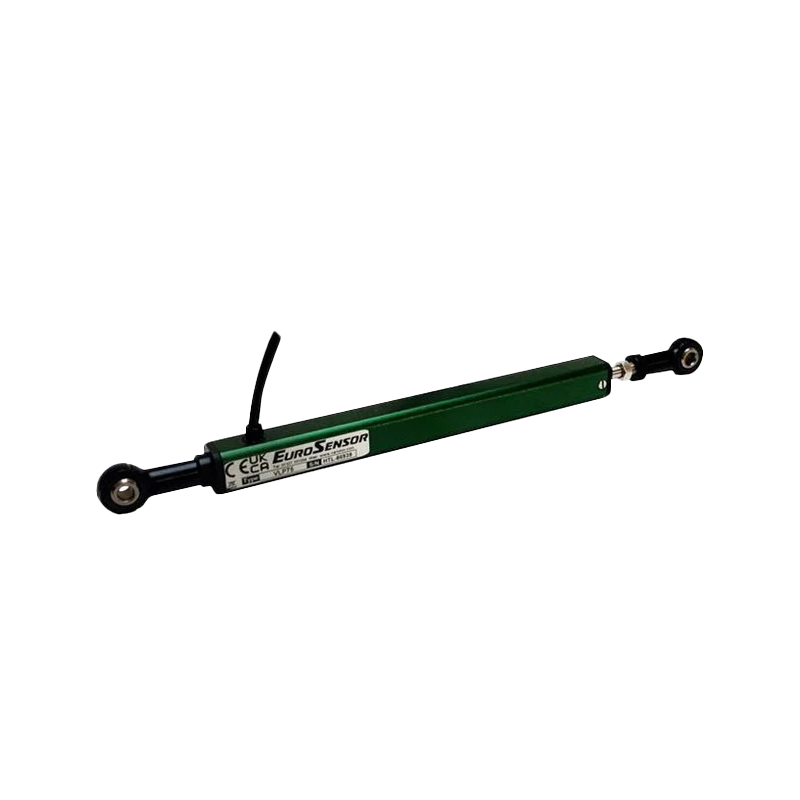

Eurosensor VLP50 Linear Position Sensor, Square, 50 mm Stroke, 5 kΩ, 42 VDC
The Eurosensor VLP50 is a high-precision linear position sensor (potentiometer) with a 50 mm stroke, delivering ±0.1% accuracy for industrial automation, robotics, and process control systems. It features a compact square housing, a 5 kΩ analog output, and operates on a supply voltage up to 42 VDC for versatile integration.
Features
- High-precision linear displacement measurement with ±0.1% accuracy.
- 50 mm stroke length with a stable 5 kΩ potentiometric output.
- Wide operating voltage range up to 42 VDC for flexible system integration.
- Compact, square-profile design with a self-aligning spherical bearing mount for easy installation.
- Robust construction suitable for demanding industrial automation and motion control environments.
Out of stock
The Eurosensor VLP50 Linear Position Sensor is a precision potentiometric device engineered for accurate linear displacement feedback in industrial control systems. Its core sensing element provides a direct analog voltage ratio output proportional to the position of the wiper along a 5 kΩ conductive track, ensuring a simple and reliable interface for PLCs, data acquisition systems, and motion controllers.
Housed in a durable, compact square body, the sensor is built for stability and longevity in challenging environments. The inclusion of a self-aligning spherical bearing mount simplifies mechanical integration and compensates for minor misalignments, reducing installation stress and enhancing measurement repeatability. This design makes the VLP50 a dependable component for applications requiring precise positional awareness.
Additional Information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 14 × 8 × 8 cm |
