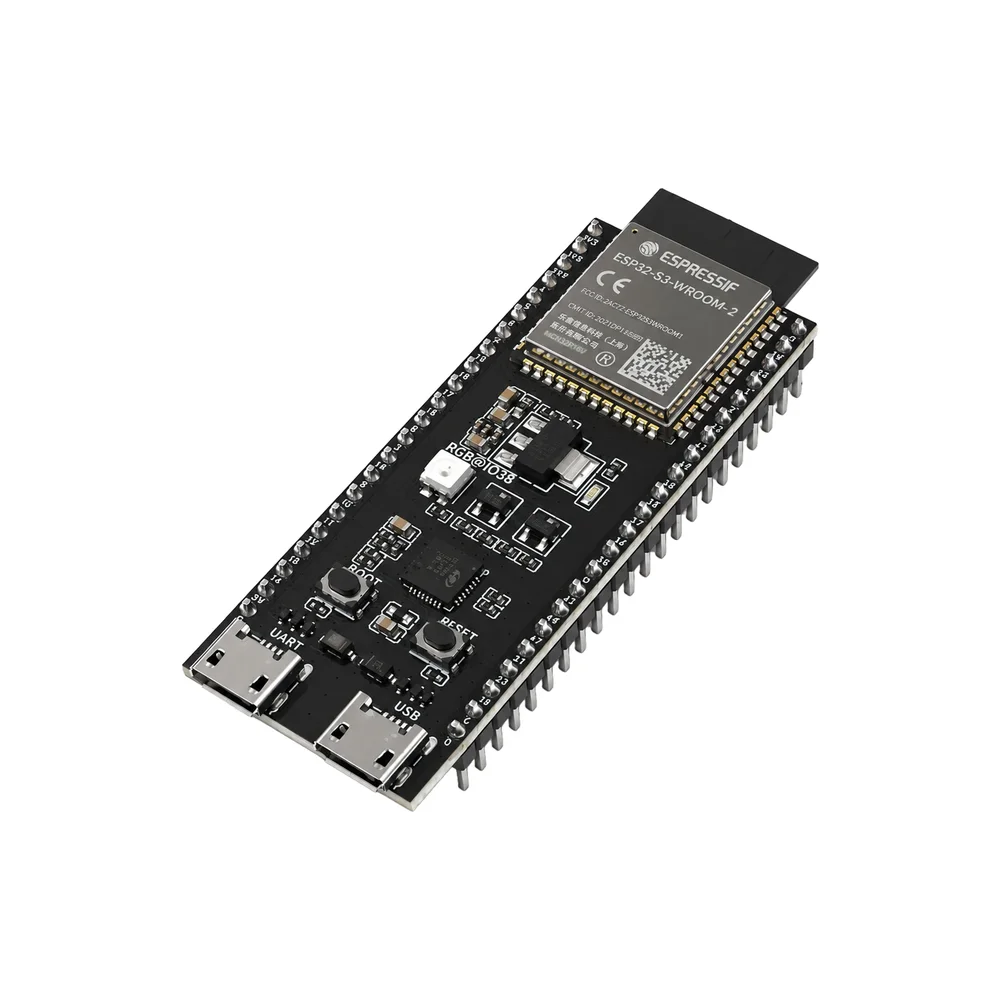

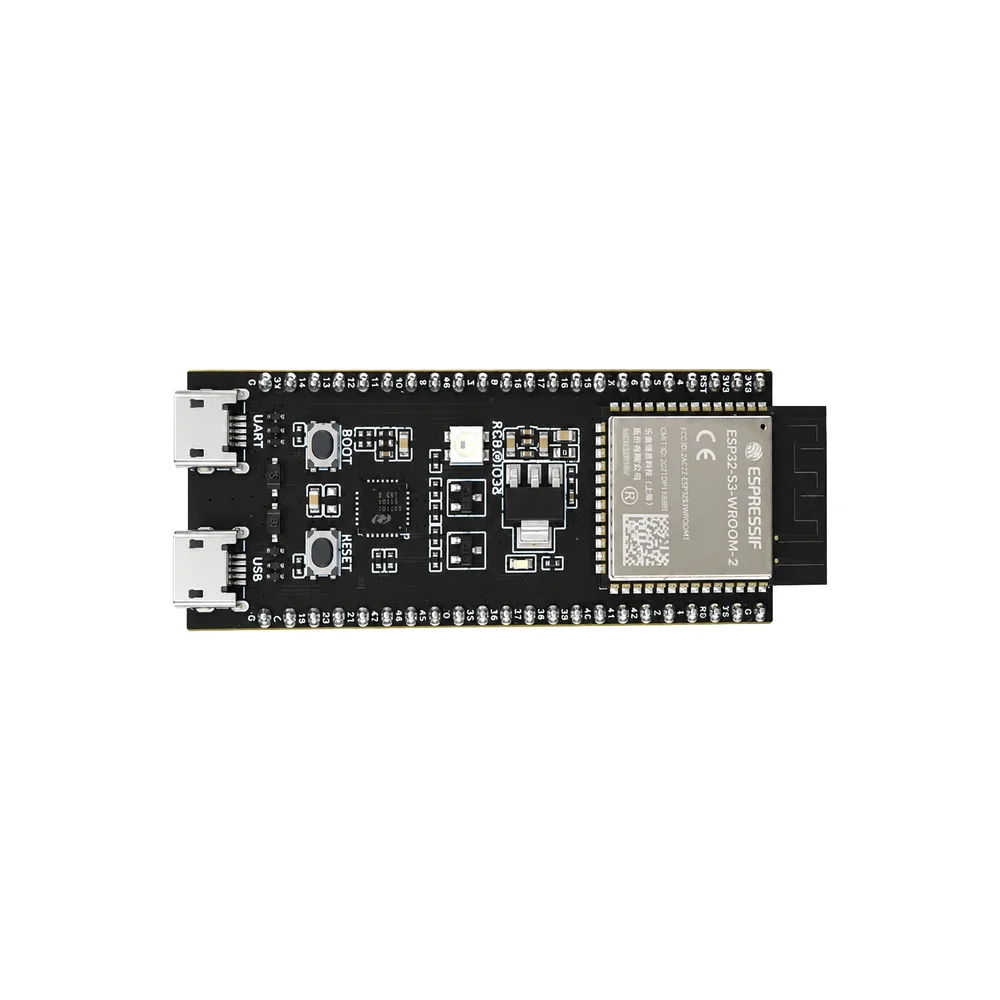

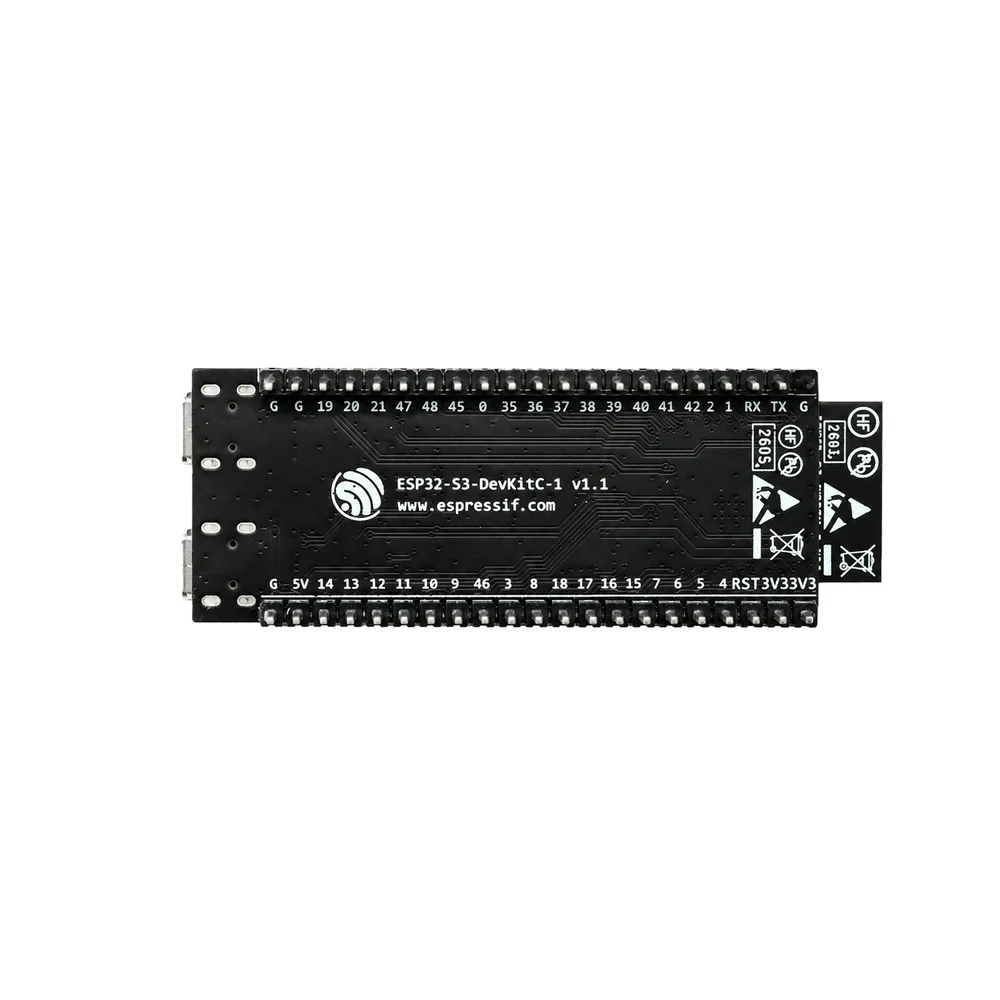

Espressif ESP32-S3-DevKitC-1-N32R16V Development Board
The Espressif ESP32-S3-DevKitC-1-N32R16V is a feature-rich development board built around the ESP32-S3-WROOM-2 module, offering dual Wi-Fi 802.11 b/g/n and Bluetooth 5.x (BLE) connectivity for IoT, AI, and embedded applications. It is programmable via Arduino IDE, ESP-IDF, or MicroPython and includes a USB-to-serial converter for rapid prototyping.
Features
- Powered by ESP32-S3-WROOM-2-N32R16V module with dual-core LX7 processor for AI and IoT workloads.
- Dual wireless connectivity with 2.4GHz Wi-Fi 802.11 b/g/n and Bluetooth 5.x (BLE) for versatile IoT applications.
- Generous 8MB PSRAM and 32MB flash memory for data-intensive tasks and firmware storage.
- Integrated USB-to-serial converter and rich GPIO (including SPI, I2C, UART, ADC) enable fast hardware prototyping.
- Supports secure boot and flash encryption, making it suitable for secure, commercial-grade device deployment.
Out of stock
The Espressif ESP32-S3-DevKitC-1-N32R16V development board is engineered for next-generation IoT and edge AI applications. Its core is the ESP32-S3-WROOM-2-N32R16V module, featuring a dual-core Xtensa LX7 microprocessor capable of running at up to 240 MHz. This provides the computational headroom needed for machine learning inference, voice recognition, and complex network protocols while maintaining the low-power operation critical for battery-powered devices.
Wireless connectivity is delivered via integrated 2.4 GHz Wi-Fi supporting 802.11 b/g/n standards and Bluetooth 5.x with Low Energy (BLE) support. The board’s architecture includes 8 MB of PSRAM and 32 MB of flash memory, facilitating the development of applications that require substantial data buffers or large firmware images. A built-in USB-to-UART bridge simplifies programming and serial communication, eliminating the need for external adapters.
Additional Information
| Weight | 0.011 kg |
|---|---|
| Dimensions | 7 × 2.5 cm |
