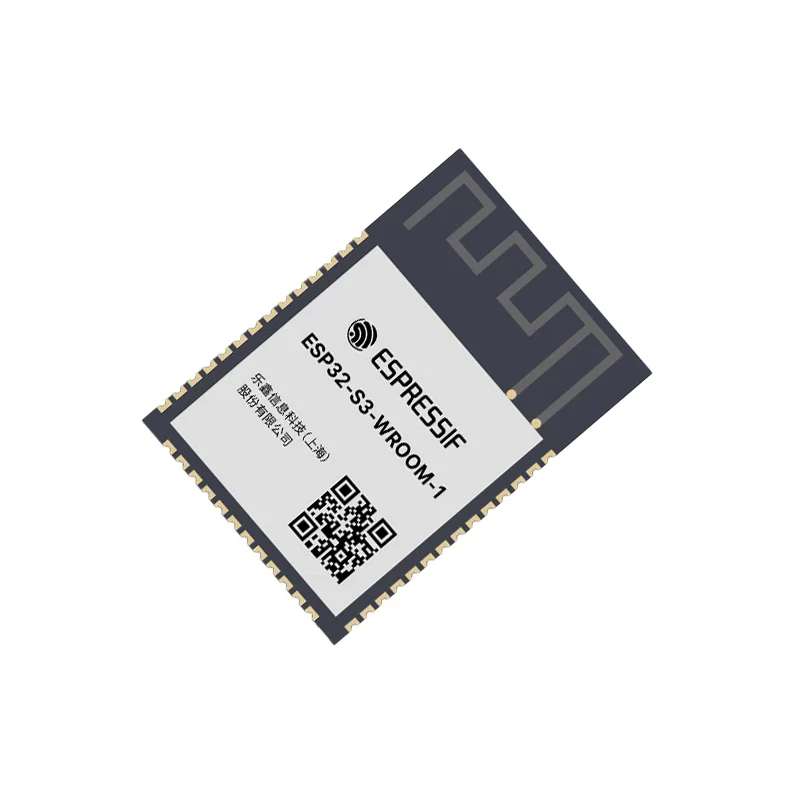

Espressif ESP32-S3-WROOM-1-N4R8 Wi-Fi & BLE Module

The ESP32-S3 features a more powerful dual-core LX7 microprocessor with AI acceleration instructions, enhanced Bluetooth 5.0 LE support including Mesh, and improved peripheral sets like USB OTG. It offers better performance for machine learning tasks at the edge while maintaining backward compatibility with many ESP32 development frameworks and libraries, making it a direct upgrade for compute-intensive IoT applications.

You can program it using Espressif's official ESP-IDF framework for full feature access, the Arduino Core for ESP32 via the Arduino IDE or PlatformIO for simplified development, or MicroPython for scripting. Connect the module's UART0 pins (TX/RX) to a USB-to-serial adapter, hold the GPIO0 pin low during reset to enter bootloader mode, and flash your compiled firmware using esptool.py or the IDE's built-in upload tools.

The ESP32-S3-WROOM-1-N4R8 variant comes with an integrated PCB antenna designed for most applications. For designs requiring an external antenna, you would typically select the 'U' variant (e.g., ESP32-S3-WROOM-1U) which features an external antenna connector (IPEX). Modifying this module for an external antenna requires careful RF trace design and matching network changes, which is not recommended.

The ESP32-S3 is optimized for low power. In deep sleep mode with RTC and ULP co-processor active, typical current consumption can be as low as 10-20 µA, depending on configured wake-up sources and preserved memory. This ultra-low sleep current makes the module highly suitable for battery-powered sensor nodes that need to operate for months or years on a single charge.
