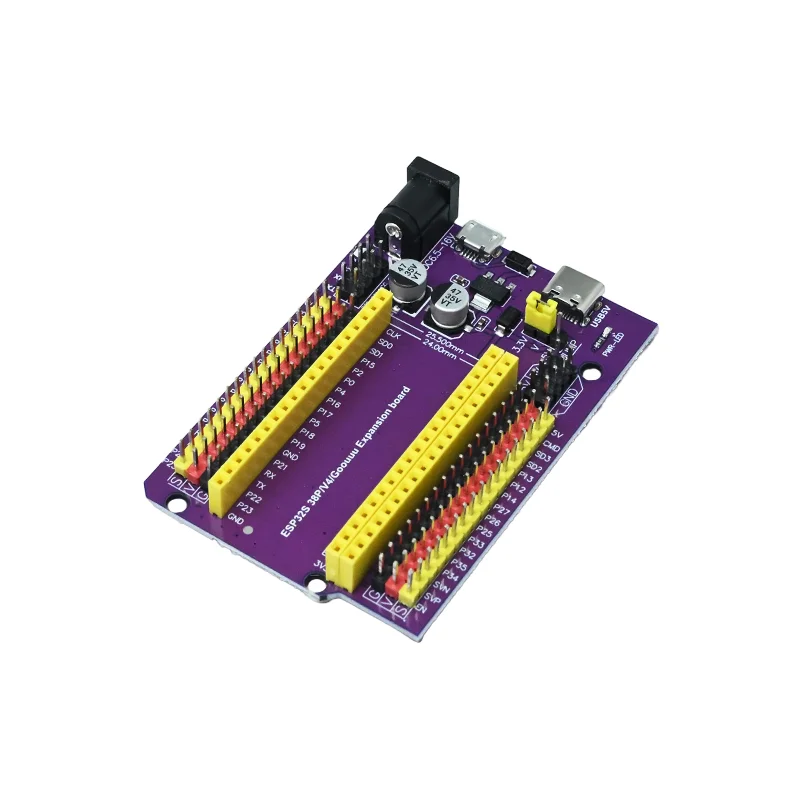

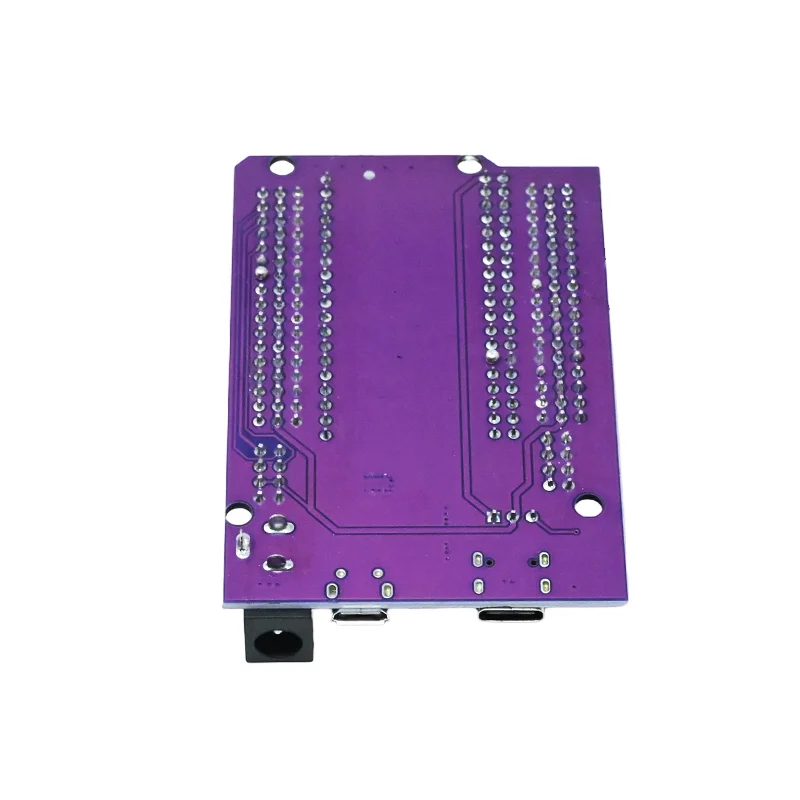

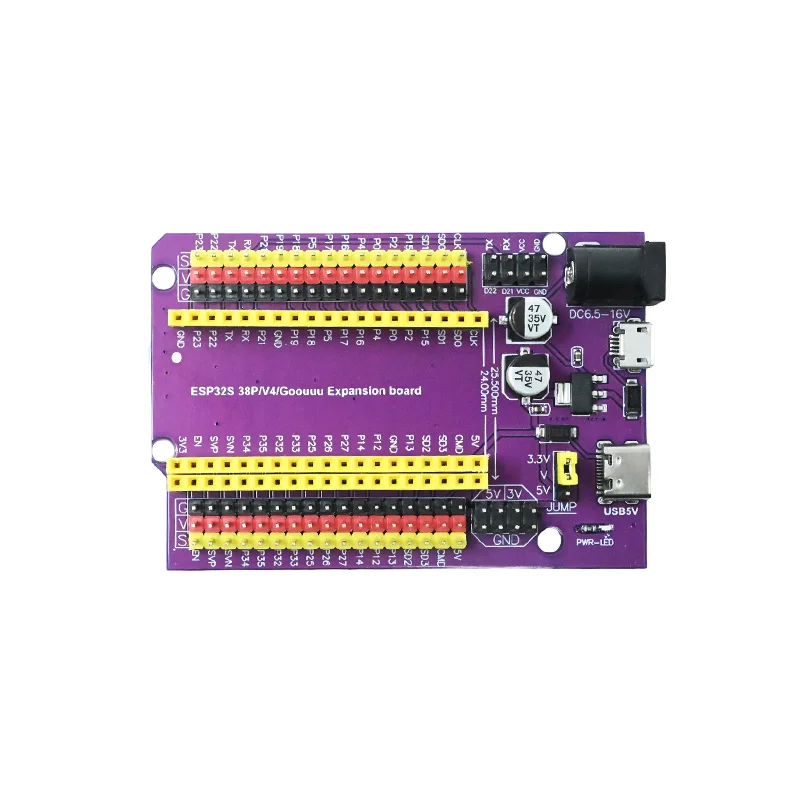

ESP32 Development Board 38-Pin GPIO Expansion Board w/ Type-C & Micro USB
This ESP32 expansion board provides a standard 38-pin GPIO interface for ESP32 development modules, featuring dual USB (Type-C and Micro) and DC power inputs for flexible prototyping and sensor integration in IoT applications.
Features
- Standard 38-pin GPIO breakout for ESP32 modules, compatible with NodeMCU-32S and similar narrow-format boards.
- Triple power supply options: DC socket, Micro USB, and modern Type-C USB for versatile project powering.
- All I/O ports are broken out to individual male and female header pins for rapid sensor and peripheral wiring.
- Designed specifically for 38-pin ESP32 variants (narrow version without mounting holes); verify board compatibility.
- Compact and lightweight form factor ideal for breadboarding and integrating into final IoT device enclosures.
Out of stock
The ESP32 38-Pin GPIO Expansion Board serves as a universal interface adapter for ESP32-based development modules, streamlining the prototyping process for IoT systems. It breaks out all GPIO, power, and communication pins from a standard 38-pin ESP32 module to clearly labeled headers, eliminating the need for direct soldering to the main board during testing.
Engineered for reliability, the board supports three distinct power input methods—a DC jack for external power supplies, a Micro USB port, and a Type-C USB connector—providing maximum flexibility for lab bench and field deployment scenarios. Its pinout is specifically matched to narrow-format ESP32 modules, ensuring electrical compatibility for Wi-Fi, Bluetooth, ADC, DAC, and serial communication interfaces.
Additional Information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 6 × 9 × 3 cm |
