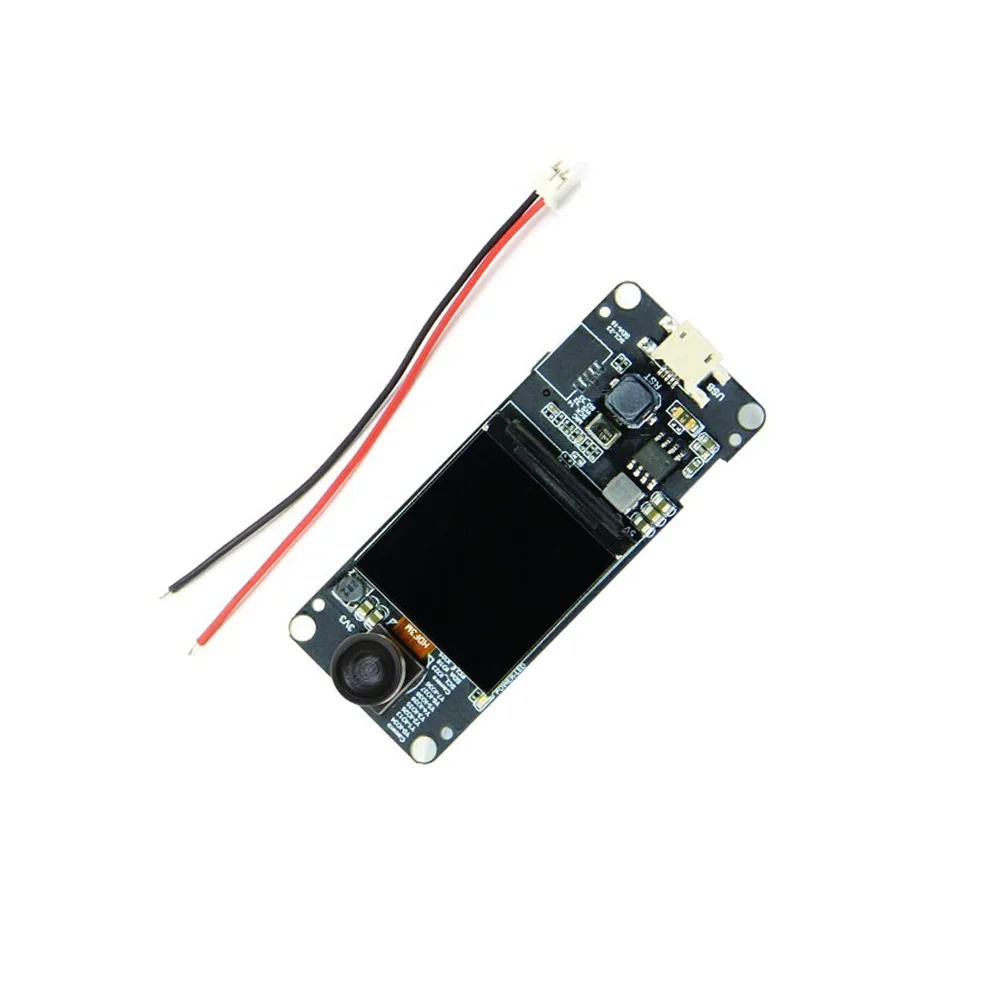

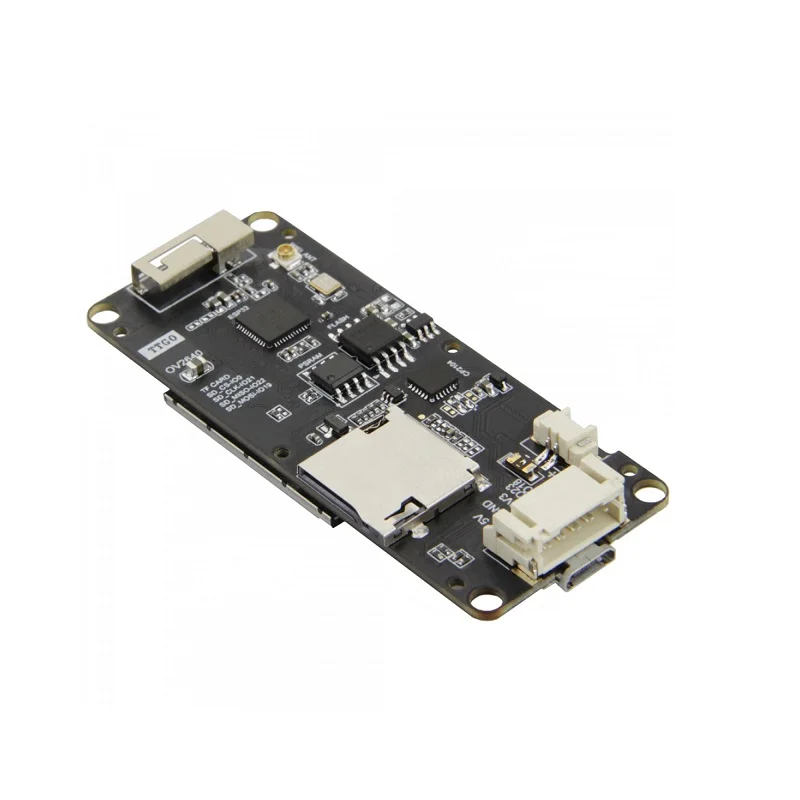

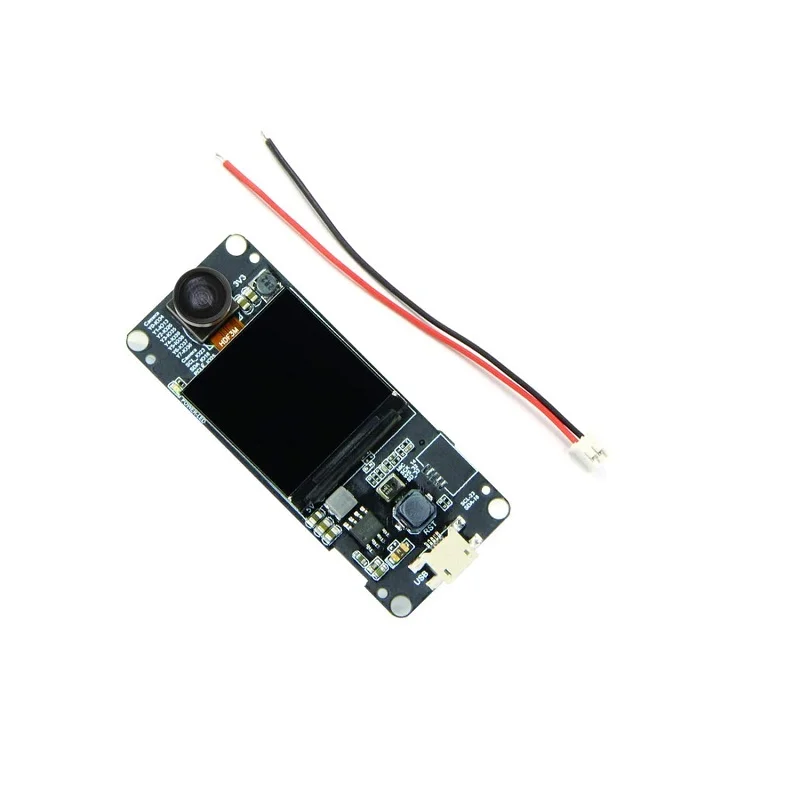

LilyGO T-Camera Plus ESP32 Module w/ OV640 Fisheye Lens
The LilyGO T-Camera Plus is an ESP32-based development module integrating a 2MP OV640 camera with a wide-angle fisheye lens, designed for Arduino IDE and ESP-IDF projects requiring embedded vision and Wi-Fi/Bluetooth connectivity.
Features
- ESP32-D0WDQ6 dual-core processor at 240MHz with integrated Wi-Fi and Bluetooth 4.2 for wireless image/data transmission.
- Integrated 2MP OV640 camera sensor with fisheye lens provides a wide 1600×1200 resolution field of view.
- Onboard 1.3-inch IPS display (ST7789 driver) for live preview and system status monitoring.
- Includes CP2104 USB-to-TTL converter for easy programming and serial communication via Arduino IDE or ESP-IDF.
- Compact 70x30mm form factor with low 160mA operating current, suitable for portable and battery-powered vision applications.
Out of stock
The LilyGO T-Camera Plus merges Espressif’s ESP32 wireless microcontroller with a dedicated OV640 CMOS image sensor and a wide-angle fisheye lens into a single, compact development board. This integration provides a robust platform for IoT vision projects, leveraging the ESP32’s dual-core 240MHz processing power, 520KB SRAM, and integrated Wi-Fi/Bluetooth 4.2 stack for on-device processing and wireless data transmission.
Power management is handled via a wide 2.3V to 3.6V operating voltage range, with a typical current draw of 160mA during active camera and wireless operation, supporting deployment in portable systems. The module includes a 1.3-inch IPS display driven by an ST7789 controller for immediate visual feedback, and a CP2104 USB-to-serial bridge ensures seamless firmware flashing and debugging. Its structural design emphasizes stable signal integrity and thermal management for reliable operation in environments from -40°C to 85°C.
Additional Information
| Weight | 0.01 kg |
|---|---|

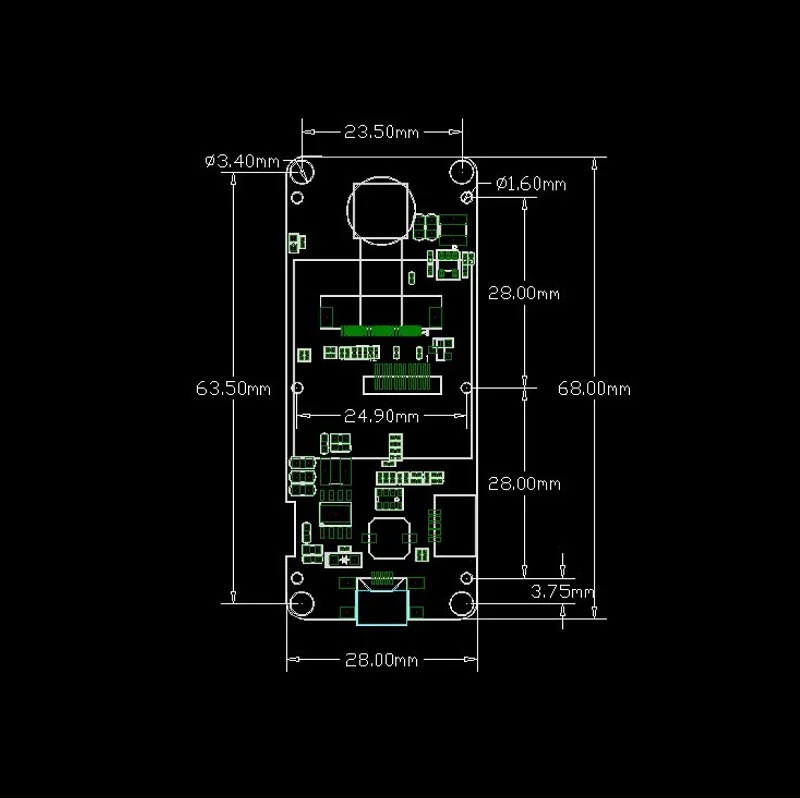

| Dimensions | 7 × 3 cm |
