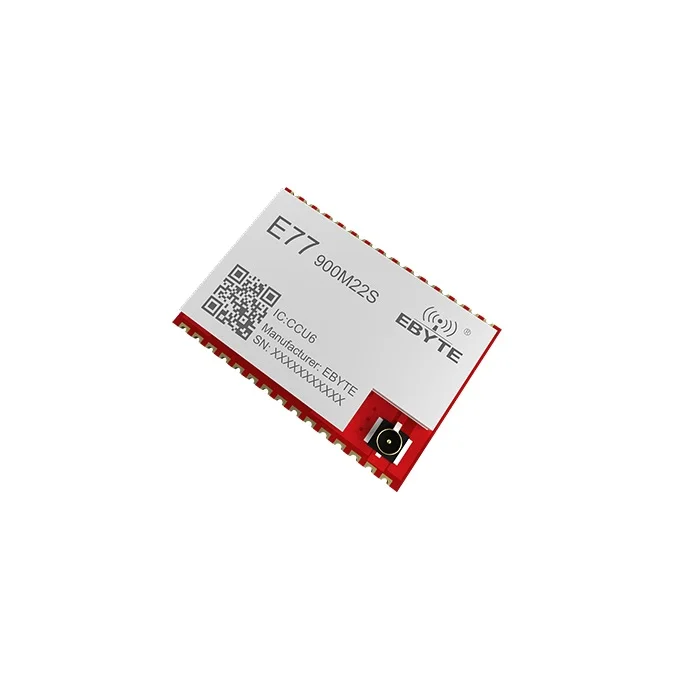

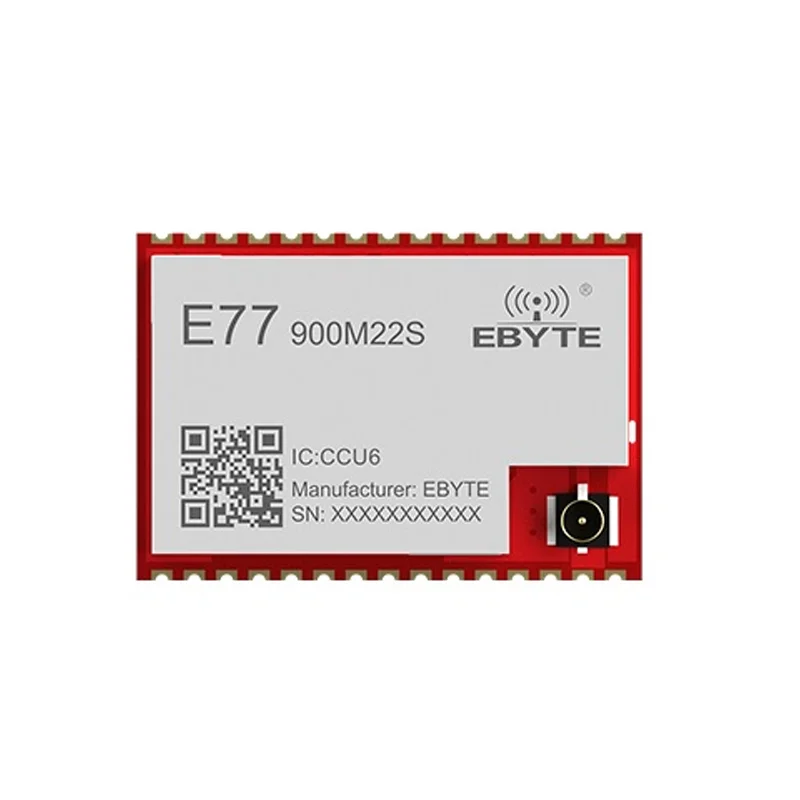

EByte E77-900M22S LoRaWAN Node Module w/ UART & AT Commands
The EByte E77-900M22S is a compact, low-power LoRaWAN node module based on the STM32WLE5CCU6 SoC, supporting global LoRaWAN regional parameters (EU868, US915, AS923) and configurable via AT commands over a UART interface for rapid IoT network deployment.
Features
- Integrated STM32WLE5CCU6 SoC combines Cortex-M4 MCU with Semtech SX126x LoRa transceiver for a complete node solution.
- Supports global LoRaWAN 1.0.4 standards (EU868, US915, AU915, AS923, IN865, KR920, RU864) and Class A/C operation.
- Configurable via simple AT commands over UART interface for quick ABP or OTAA network activation.
- High 22dBm transmit power and -118dBm receive sensitivity enable robust communication over long distances.
- Ultra-low power consumption with multiple sleep modes, ideal for battery-powered remote sensor applications.
Out of stock
The E77-900M22S module from EByte integrates a powerful STM32WLE5CCU6 system-on-chip, which features a 32-bit Arm Cortex-M4 core paired with a Semtech SX126x-series LoRa transceiver. This all-in-one design eliminates the need for an external microcontroller, simplifying hardware design and reducing the bill of materials for LoRaWAN end-node devices. The module operates across the 868-930MHz frequency band, making it adaptable for various global sub-GHz ISM bands.
Engineered for low-power operation, the module supports multiple deep sleep modes, significantly extending battery life in field deployments where energy harvesting or infrequent data transmission is required. Network configuration and data transmission are managed entirely through a straightforward AT command set via its UART interface, allowing developers to integrate it quickly with host systems or use it as a standalone LoRaWAN communicator. The compact 14x20mm form factor and dual IPEX connector or stamp hole antenna options provide flexibility for different PCB layouts and enclosure designs.
Additional Information
| Weight | 0.0016 kg |
|---|---|
| Dimensions | 2 × 1.4 cm |
