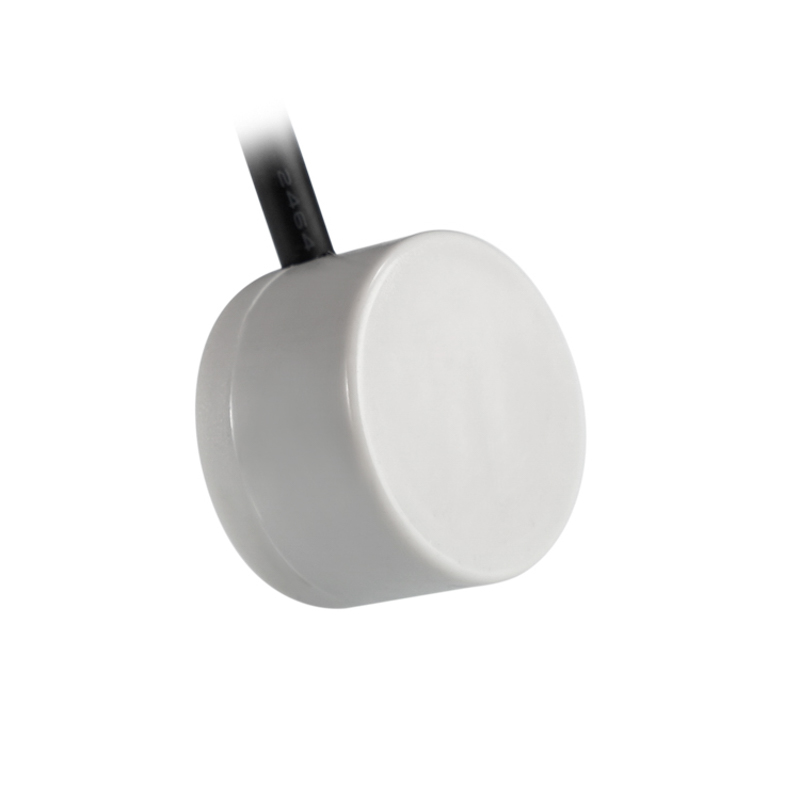

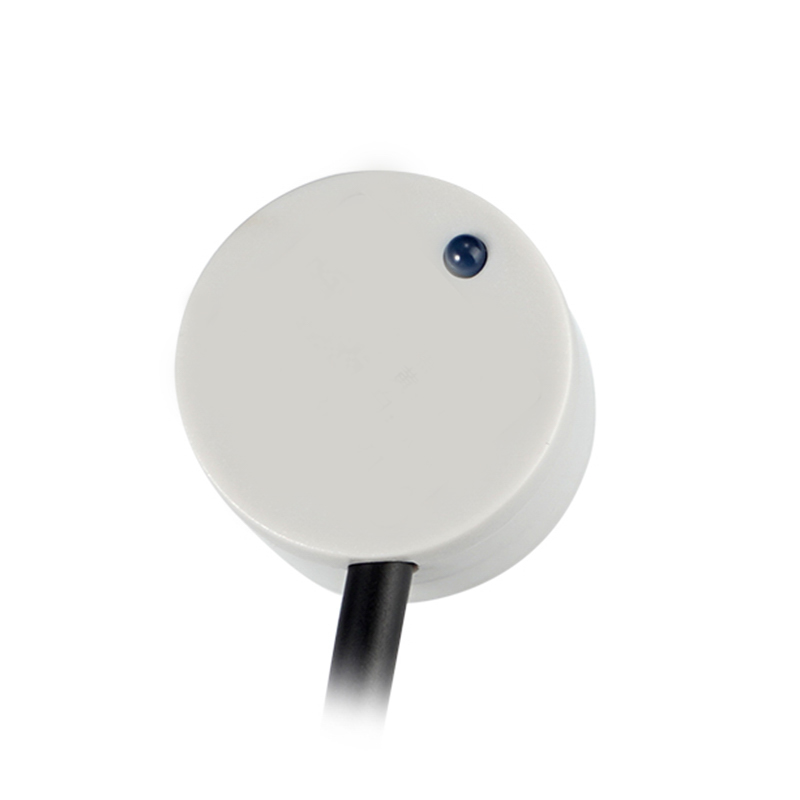

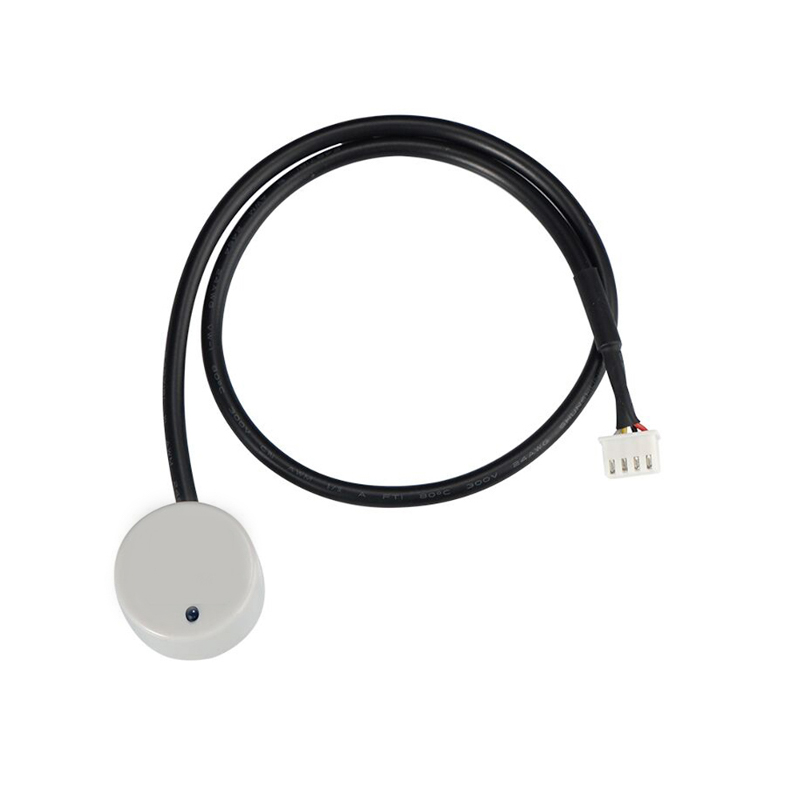

DYP DS1603NF V1.0 Switch Ultrasonic Sensor Measuring Range 50–2000mm
The DYP DS1603NF V1.0 is a switch-output ultrasonic sensor designed for non-contact liquid level measurement in sealed containers. Operating from a 10-36V DC supply, it provides a reliable digital signal for integration with PLCs, industrial controllers, and automation systems.
Features
- Non-contact ultrasonic measurement for safe, non-invasive liquid level detection.
- Wide 10-36V DC operating voltage range for industrial compatibility.
- Switch output provides a simple on/off signal for level control applications.
- Designed for installation directly beneath containers, eliminating the need for tank penetration.
- Suitable for measuring aggressive liquids like acids, alkalis, and toxic substances.
Out of stock
The DYP DS1603NF V1.0 ultrasonic sensor utilizes high-frequency sound waves to perform non-contact liquid level measurement from the bottom of a sealed container. This bottom-mount installation method eliminates the need for drilling or creating openings, preserving container integrity and preventing leaks, making it ideal for handling hazardous or corrosive media.
The sensor features a robust design capable of operating in environments from -15°C to +60°C. Its switch-type output provides a straightforward digital signal, indicating when the liquid level is within or outside the preset detection range, simplifying integration into industrial control loops, pump control systems, and high/low-level alarm circuits.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 14 × 9 × 5 cm |
