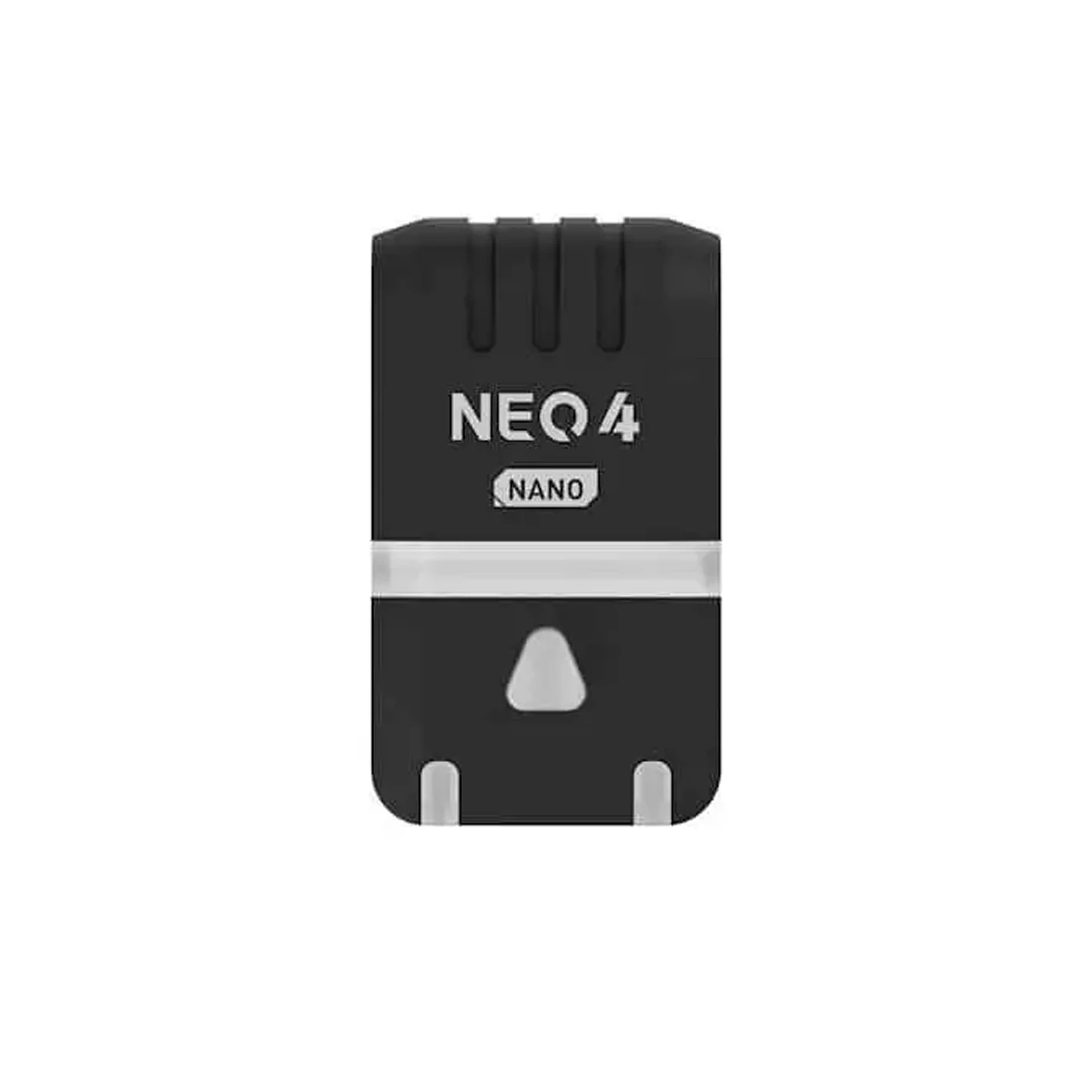

CUAV NEO 4 NANO Mini GNSS Module u-blox M10 GPS

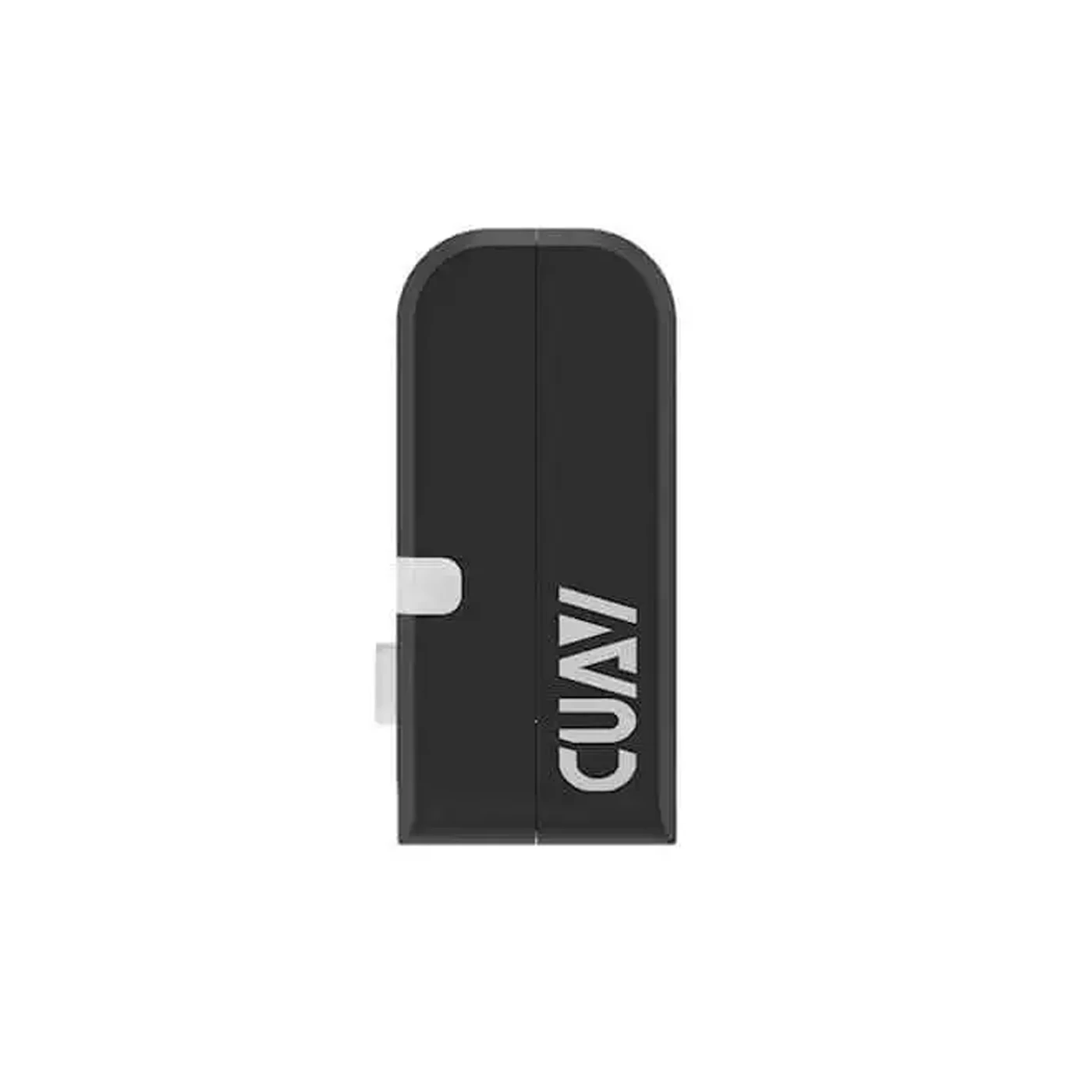

CUAV NEO 4 NANO Mini GNSS Module u-blox M10 GPS - Image 2

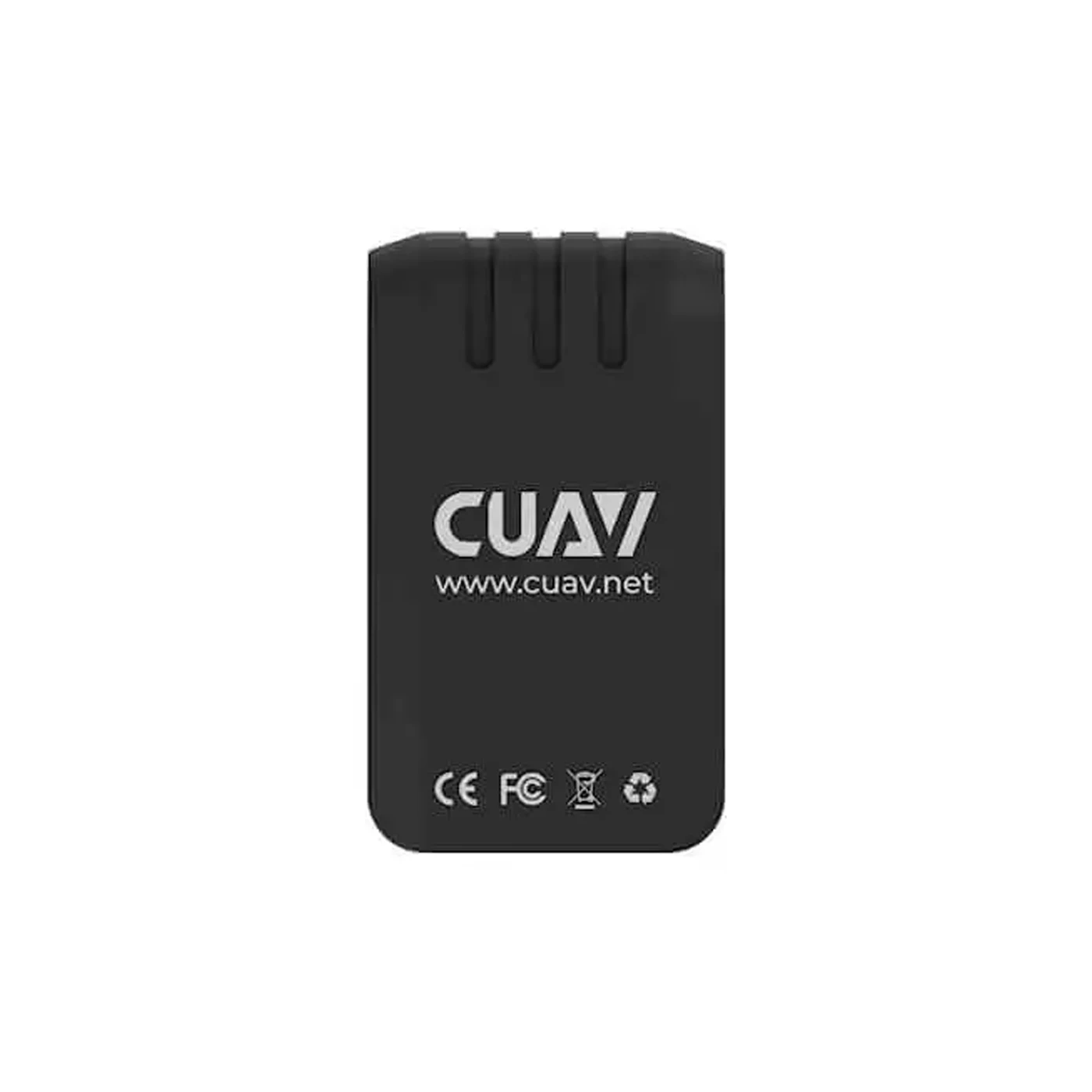

CUAV NEO 4 NANO Mini GNSS Module u-blox M10 GPS - Image 3

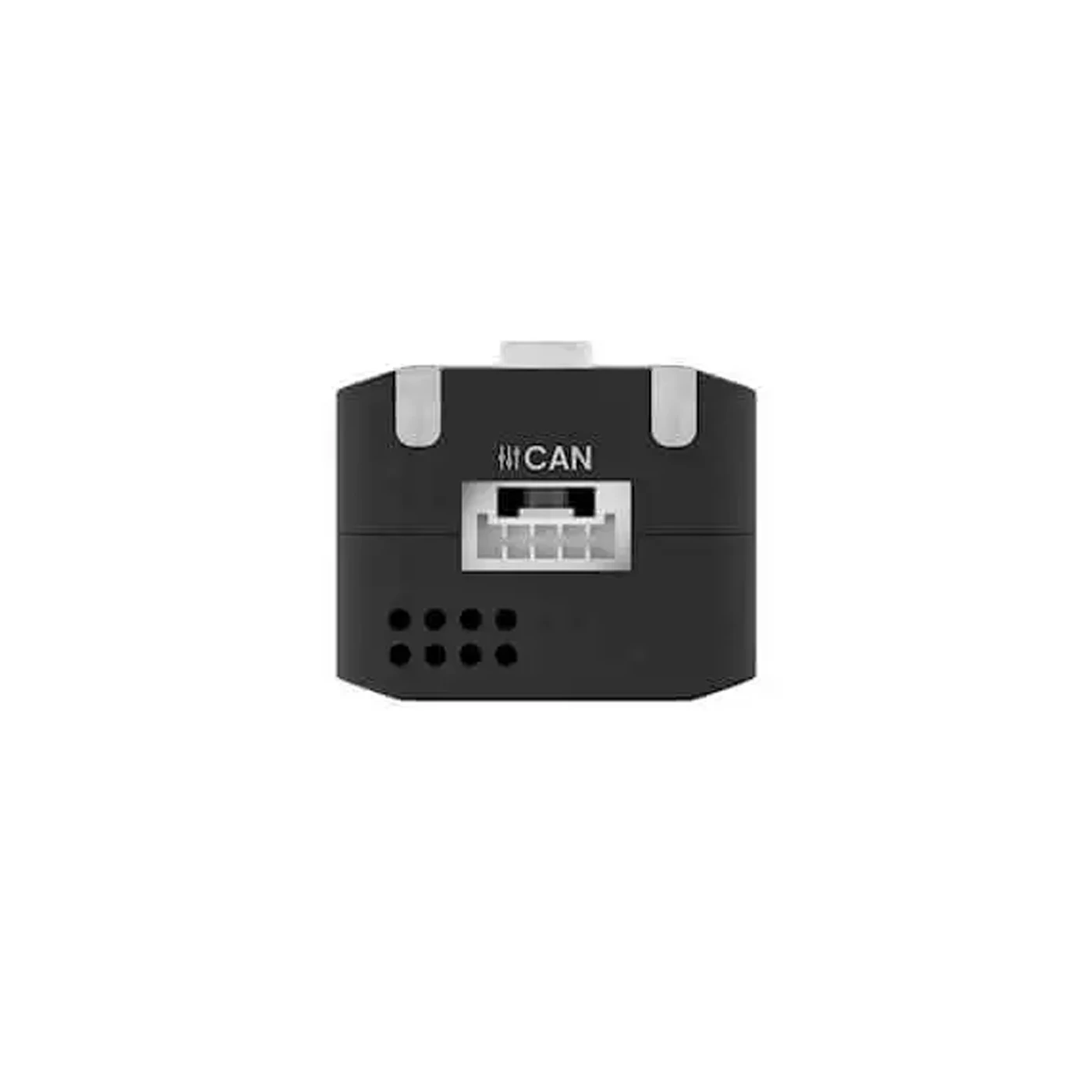

CUAV NEO 4 NANO Mini GNSS Module u-blox M10 GPS - Image 4
SKU: DRFC-0759
📋 GST Invoice Available

CUAV NEO 4 NANO Mini GNSS Module u-blox M10 GPS

₹9,559.00 (Inclusive of all taxes)
Out of Stock

The CUAV NEO 4 NANO is an ultra-compact GNSS module featuring the u-blox M10 GPS engine for precise multi-constellation satellite navigation. Equipped with an integrated IIS2MDC compass and DroneCAN protocol, it ensures robust positioning and seamless integration with ArduPilot and PX4 flight control systems.

Features

  • Ultra-compact and lightweight (10.6g) design for micro UAVs, enabling versatile integration.
  • Features the advanced u-blox M10 GNSS engine with multi-constellation (GPS, GLONASS, BeiDou, Galileo) support for 1.5m CEP accuracy.
  • Integrated STM32H5 processor and IIS2MDC electronic compass deliver high-performance data processing and precise heading.
  • Dual SAW + LNA architecture and robust EMI/RFI protection enhance signal reception and positioning reliability.
  • Utilizes the DroneCAN protocol for seamless communication and full compatibility with ArduPilot and PX4 flight control systems.

Out of stock

Description

The CUAV NEO 4 NANO is a miniature satellite navigation receiver module meticulously engineered for high-precision UAV applications. Its highly integrated, compact design incorporates the advanced u-blox M10 GNSS receiver, enabling concurrent reception of signals from four major global navigation satellite systems (GPS, GLONASS, BeiDou, and Galileo). This multi-constellation capability ensures superior accuracy and reliability, even in challenging RF environments.

Equipped with a high-performance STM32H5 Cortex-M33 processor clocked at 250MHz, the NEO 4 NANO offers rapid data processing for optimal navigation. An integrated ST IIS2MDC electronic compass provides accurate heading information with strong anti-interference capabilities, enhancing overall system stability. The module features dual SAW + LNA architecture for improved signal integrity and robust EMI/RFI protection. Supporting the industry-standard DroneCAN protocol, it ensures seamless integration with popular flight control systems like ArduPilot and PX4, making it an ideal solution for a wide range of unmanned system applications requiring precise and dependable positioning data.

Visual and audio feedback is provided through an RGB status LED indicator and an onboard buzzer, simplifying system diagnostics. With its compact form factor, comprehensive GNSS support, and advanced processing, the NEO 4 NANO delivers precise positioning with excellent anti-interference capabilities and environmental adaptability, catering to the stringent demands of modern drone operations.

Key Features

  • Ultra-compact and lightweight design (10.6g) ideal for micro UAVs and space-constrained applications.
  • Multi-constellation GNSS support including GPS, GLONASS, BeiDou, and Galileo for enhanced accuracy and satellite coverage.
  • Utilizes the advanced u-blox M10 GNSS engine, providing rapid satellite acquisition and highly stable positioning.
  • Equipped with a high-performance STM32H5 Cortex-M33 processor (250MHz) for efficient data handling and reliable operation.
  • Integrated ST IIS2MDC electronic compass delivers precise heading information with robust anti-interference capabilities.
  • Features a dual SAW + LNA architecture to significantly improve signal reception and overall positioning reliability in complex environments.
  • Incorporates jamming and spoofing detection for enhanced signal integrity and security.
  • Built-in EMI/RFI protection safeguards against electromagnetic interference.
  • Includes an RGB status LED and buzzer for clear visual and audible system feedback and alerts.
  • Supports the DroneCAN communication protocol, ensuring seamless and robust integration with ArduPilot and PX4 flight control systems.

Applications

  • FPV racing and freestyle drones requiring accurate positioning.
  • Compact cinematic drones and CineWhoops for stable flight paths.
  • Autonomous mapping and inspection UAVs.
  • Fixed-wing aircraft and VTOL platforms needing precise navigation.
  • Integration with ArduPilot and PX4-based flight controllers.

Technical Specifications

Receiver Typeu-blox MIA-M10Q
ProcessorSTM32H5 Arm Cortex-M33, 250MHz
CompassIIS2MDC
Frequency BandGPS L1 C/A, GLONASS L1OF, BDS B1I/B1C, Galileo E1B/C
Augmentation SystemsSBAS (EGNOS, GAGAN, MSAS, WAAS, BDSBAS, KASS, SouthPAN), QZSS L1S (SLAS)
Concurrent GNSS4 (GPS, GLONASS, Galileo, BDS)
OscillatorTCXO
Cold Start Time27s
Hot Start Time1s
Aided Start Time1s
Navigation Update RateUp to 10Hz (4 GNSS), Up to 25Hz (Single GNSS)
Horizontal Position Accuracy1.5m CEP
Signal IntegrityJamming & Spoofing Detection
Wave FilteringSAW + LNA + SAW + LNA
EMI/RFI ProtectionEMI + RFI
ProtocolDroneCAN
FirmwareCUAV M4C GNSS
Firmware UpgradeSupported
Data InterfaceGHR-04V-S
Input Voltage4.5V ~ 5.4V
Operating Temperature-10°C to +80°C
Dimensions34 × 20 × 14.5 mm
Weight10.6g

Frequently Asked Questions

What GNSS constellations does the CUAV NEO 4 NANO support for positioning?

The NEO 4 NANO supports concurrent reception from four major global navigation satellite systems: GPS, GLONASS, BeiDou, and Galileo. This multi-constellation capability significantly enhances positioning accuracy and reliability, ensuring robust performance even in challenging environments with limited satellite visibility for your drone applications.

How does the DroneCAN protocol benefit integration with flight controllers?

DroneCAN is a robust, fault-tolerant communication protocol designed specifically for UAVs. Its support on the NEO 4 NANO enables seamless, reliable, and high-speed data exchange with popular flight controllers like ArduPilot and PX4. This ensures straightforward setup, comprehensive telemetry, and enhanced system integrity for various drone platforms.

What is the significance of the integrated IIS2MDC electronic compass?

The integrated ST IIS2MDC electronic compass is crucial for providing accurate heading information to the flight controller. It offers strong anti-interference capabilities, which is vital for maintaining precise orientation and stable flight, especially during complex maneuvers or in environments with electromagnetic noise. This enhances overall navigation reliability.

What input voltage is required for the CUAV NEO 4 NANO module?

The CUAV NEO 4 NANO module requires an input voltage ranging from 4.5V to 5.4V. It's essential to supply power within this specified range to ensure optimal performance and prevent damage to the module. Always verify your power source adheres to these requirements when integrating it into your drone system.

Package Includes

  • 1x CUAV NEO 4 NANO Mini GNSS Module (u-blox M10 GPS)
  • 1x Connecting Cable
  • 1x Mount Sticker

Additional Information

Dimensions 3.4 × 2 × 1.45 cm
