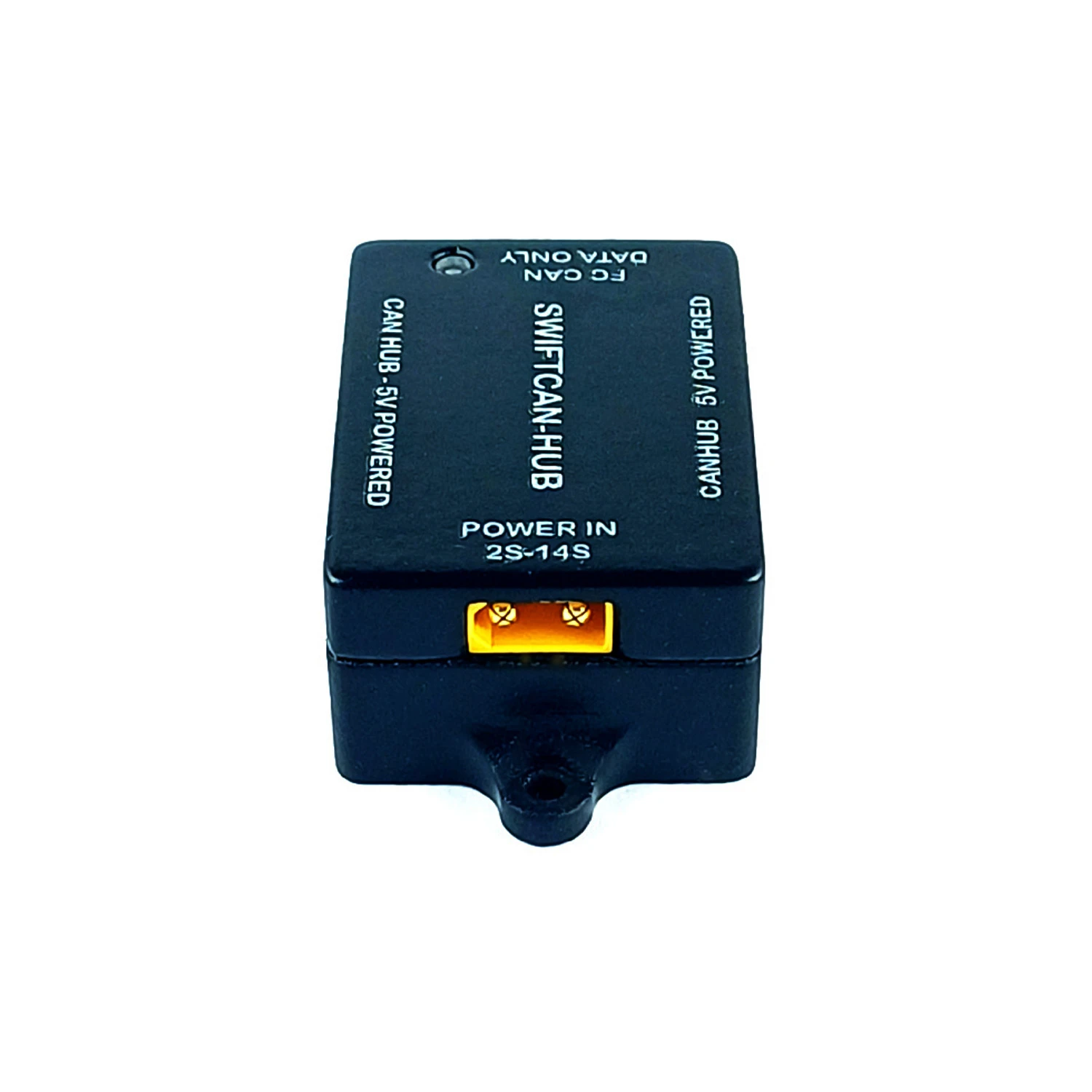

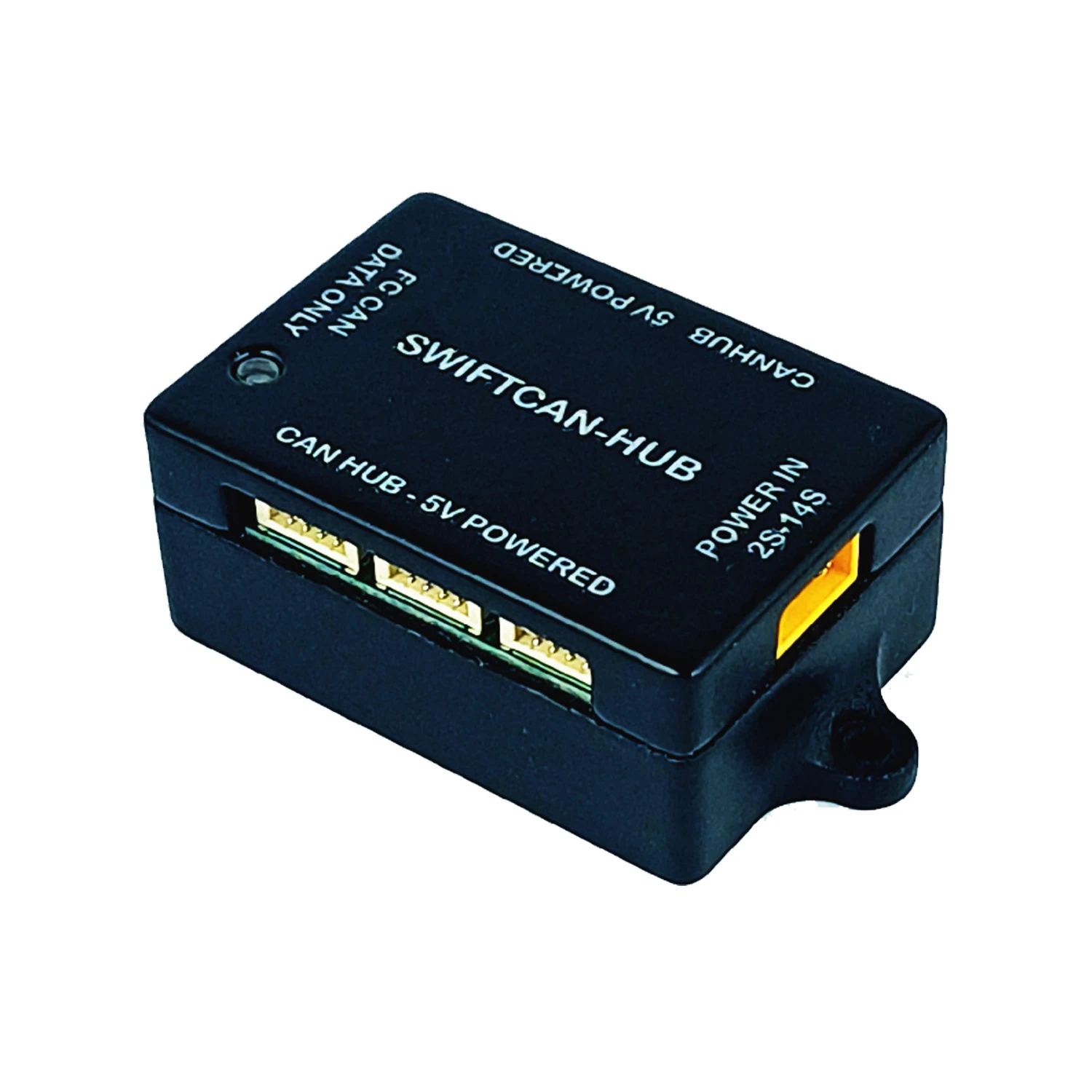

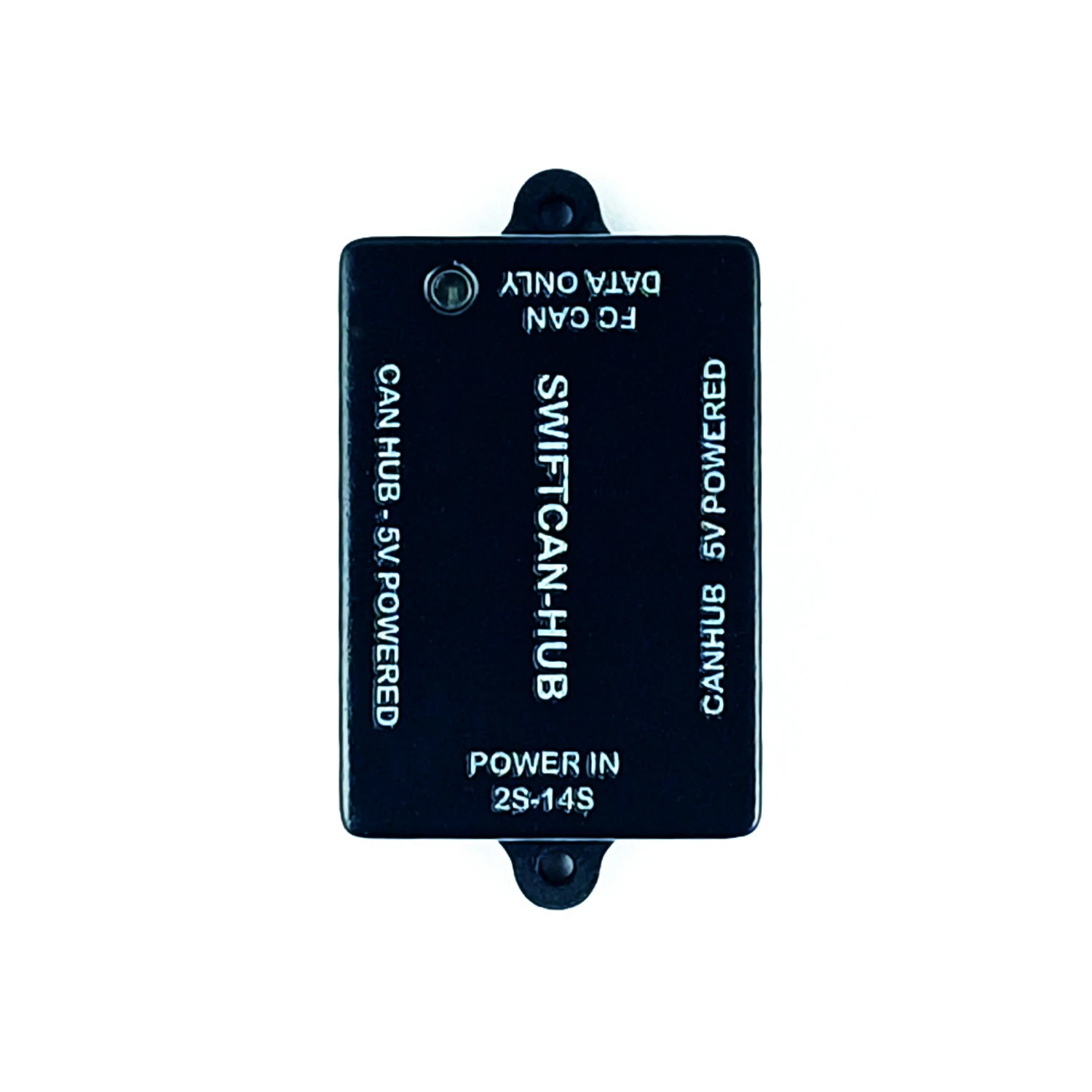

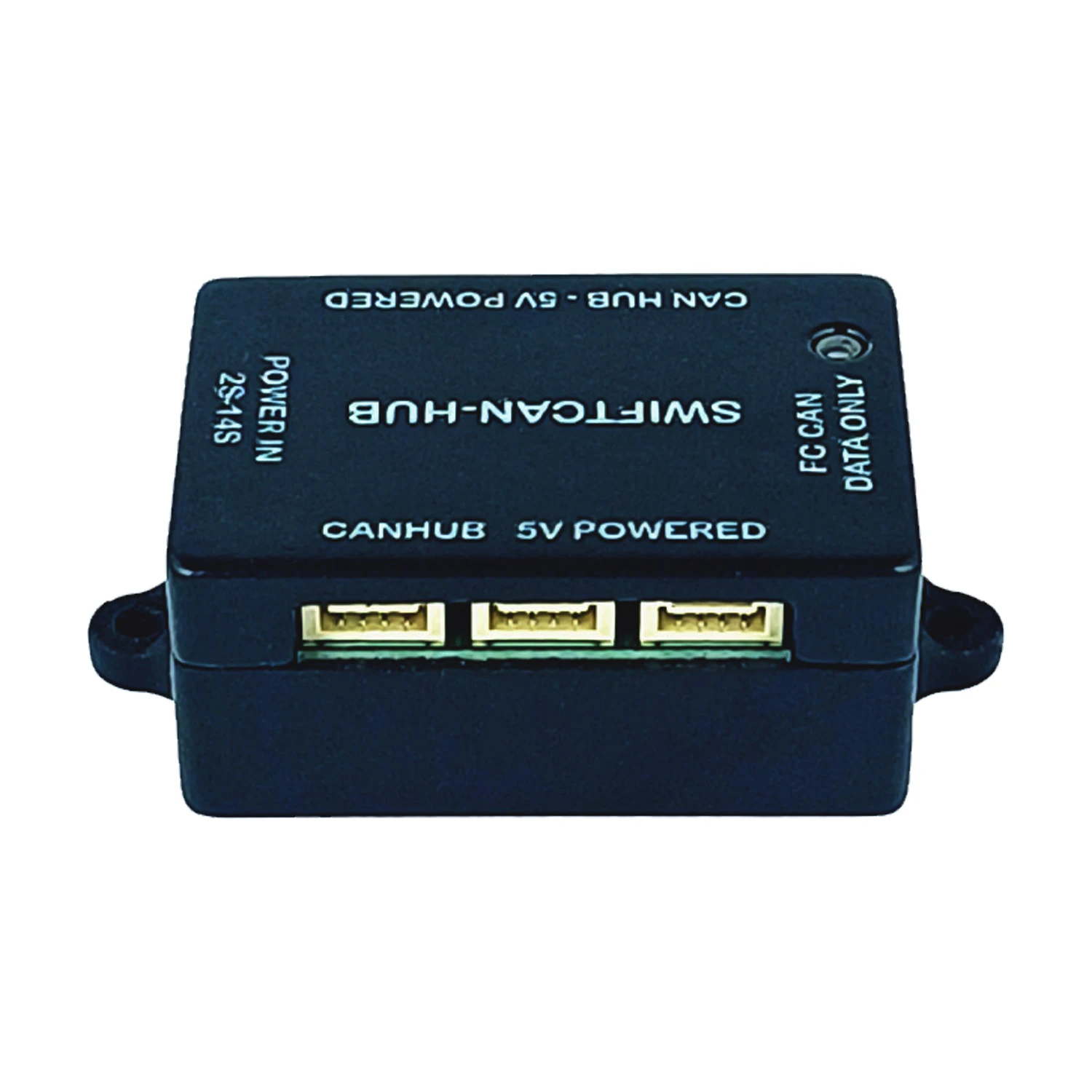

SwiftCAN-HUB 6-Port Powered CAN Hub for ArduPilot, PX4, DroneCAN
The SwiftCAN-HUB is a versatile 6-port powered CAN expansion hub, providing a stable 5.3V @ 5A output from 2S–14S LiPo input. It streamlines connectivity for ArduPilot, PX4, and DroneCAN systems by offloading power from the flight controller.
Features
- Expands one CAN port into six independent, powered peripheral ports.
- Integrated DC-DC regulator delivers a stable 5.3V/5A output for connected devices.
- Wide input voltage compatibility from 2S to 14S LiPo batteries.
- Optimized for seamless integration with ArduPilot, PX4, and DroneCAN ecosystems.
- Compact design with reliable JST-GH connectors and power status LED.
Out of stock
The SwiftCAN-HUB is a reliable and efficient CAN expansion solution designed for advanced UAV and robotics systems. It allows a single CAN interface from the flight controller to connect up to six CAN-based peripherals with ease. The built-in high-efficiency DC-DC regulator converts a 2S–14S LiPo battery input into a stable 5.3V output, delivering up to 5A current to connected devices. This removes the load from the flight controller and simplifies wiring architecture.
With JST-GH connectors, a compact enclosure, and a power status LED, the hub ensures robust connectivity and easy installation. It supports DroneCAN and other CAN-based devices like GNSS modules, ESCs, various sensors, and telemetry modules, enhancing system scalability and performance.
Additional Information
| Dimensions | 5.5 × 3 × 1.8 cm |
|---|
