CC3D Main Port Cable - 15cm Silicone JST-SH Adapter

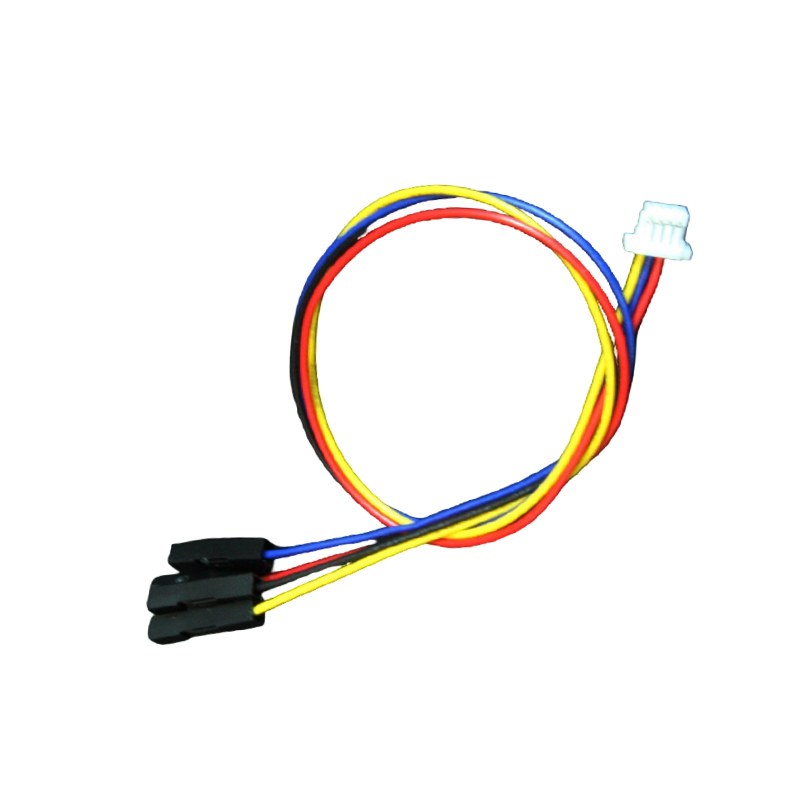

The CC3D Main Port Cable is a 15cm silicone adapter cable designed to interface CC3D flight controllers with external components, featuring a female JST-SH connector on one end and color-coded female pin connectors for standard 0.1″ headers.
Features
- 15cm total length super-soft silicone cable for flexible routing.
- Female JST-SH 1.0mm pitch connector for direct CC3D main port interface.
- Color-coded female pin connectors (Red, Black, Blue, Yellow) for standard 0.1″ male headers.
- Pre-terminated adapter simplifies connections to servos, telemetry modules, or logic analyzers.
- Standard Qwiic/I2C color scheme: Red (3.3V), Black (GND), Blue (SDA), Yellow (SCL).
Out of stock
This adapter cable provides a direct, reliable connection between the main port of a CC3D flight controller and peripheral devices. The super-soft silicone insulation ensures durability and resistance to vibration and abrasion in tight drone builds, while maintaining flexibility for clean wire management.
The cable is pre-assembled with a secure female JST-SH connector on one end, matching the CC3D’s main port pinout. The opposite end features four individual female pin connectors, allowing for easy attachment to standard 0.1″ pitch male pins on breakout boards, servo leads, or diagnostic tools. The consistent color-coding follows common I2C/Qwiic conventions for immediate voltage and signal identification.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 6.5 × 7.5 × 1 cm |
