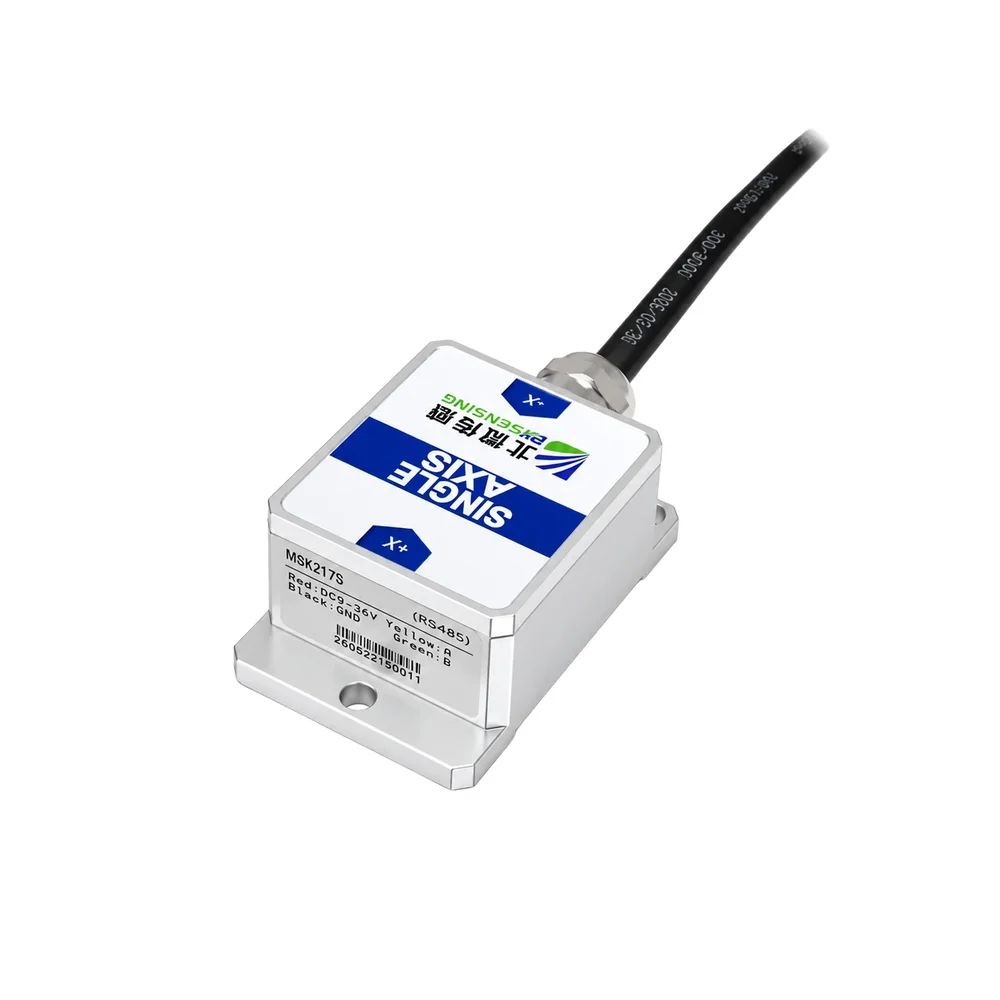

BWSENSING MSK217S Single-Axis Inclinometer ±180° Tilt Sensor - RS485 IP67

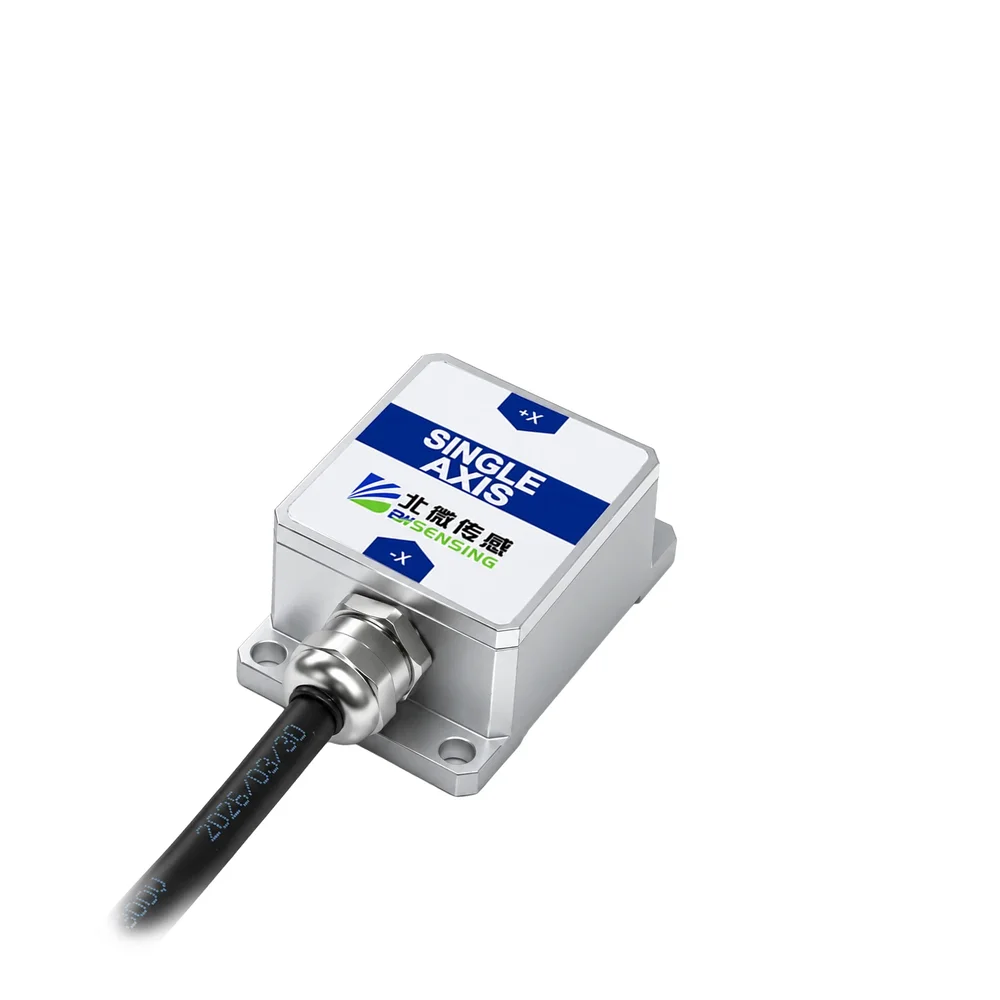

BWSENSING MSK217S Single-Axis Inclinometer ±180° Tilt Sensor - RS485 IP67 - Image 2

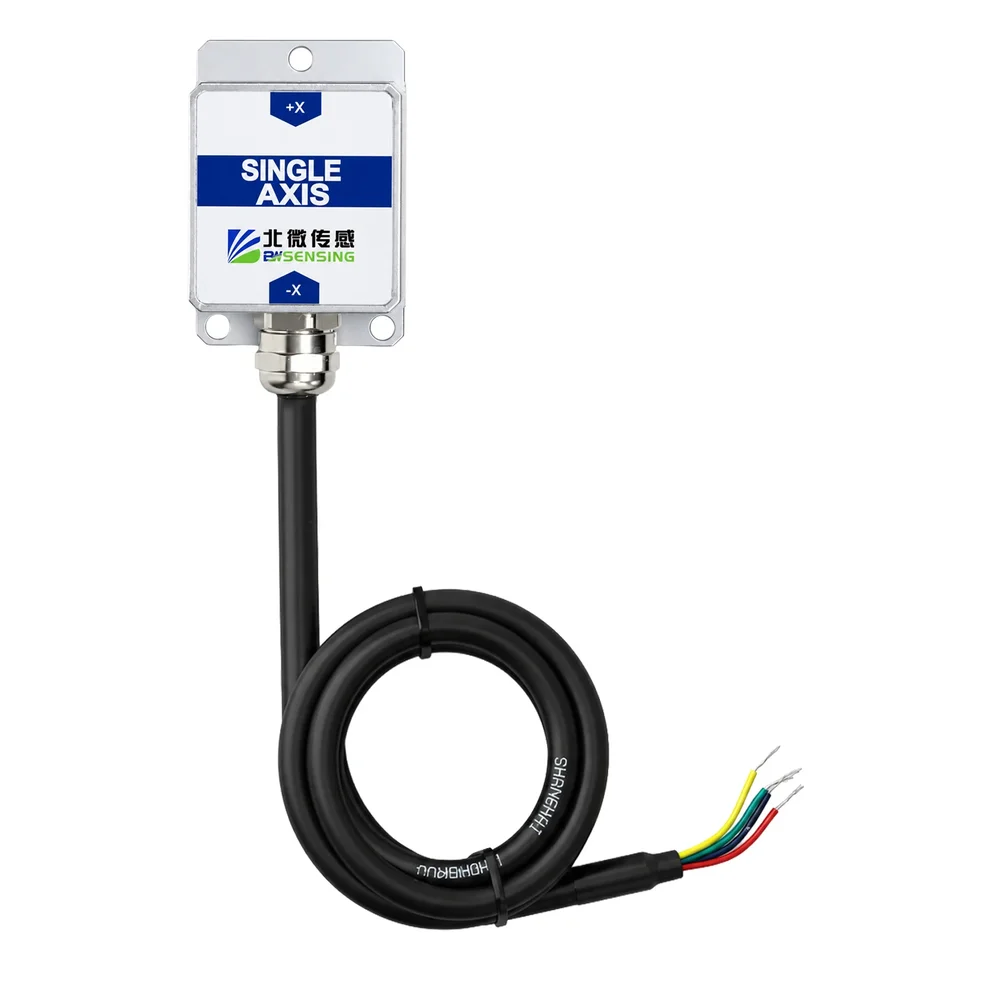

BWSENSING MSK217S Single-Axis Inclinometer ±180° Tilt Sensor - RS485 IP67 - Image 3
SKU: SENS-4270
📋 GST Invoice Available

BWSENSING MSK217S Single-Axis Inclinometer ±180° Tilt Sensor - RS485 IP67

₹5,329.00 (Inclusive of all taxes)
Out of Stock

The BWSENSING MSK217S is a high-precision, single-axis MEMS inclinometer with a ±180° measurement range and 0.3° accuracy, delivering stable digital RS485 output for integration with industrial PLCs, SCADA systems, and automation controllers.

Features

  • High-precision single-axis tilt measurement with ±180° range and 0.3° accuracy.
  • Industrial RS485 digital communication interface for robust, noise-immune data transmission.
  • Rugged magnesium aluminum alloy housing with IP67 protection for harsh environments.
  • Wide operating voltage range of 9-35V DC and temperature range of -40°C to +85°C.
  • Compact, lightweight design with M4 mounting holes and a 1.5-meter integrated cable.

Out of stock

Description

The BWSENSING MSK217S is engineered around a high-stability MEMS accelerometer, providing precise single-axis inclination measurement for demanding industrial applications. Its digital signal conditioning ensures minimal temperature drift and strong immunity to electromagnetic interference, delivering reliable data via an RS485 interface that supports Modbus RTU protocol for seamless integration into automation networks.

Housed in a robust magnesium aluminum alloy enclosure with an IP67 rating, the sensor is protected against dust ingress and temporary immersion, making it suitable for outdoor installations, construction equipment, and industrial machinery. The wide 9-35V DC input range and extended operating temperature from -40°C to +85°C guarantee dependable performance in variable and challenging environmental conditions.

Key Features

  • High-accuracy MEMS sensing core with 0.03° resolution for precise angle detection.
  • Industrial-grade RS485 output with adjustable baud rate and output frequency up to 100Hz.
  • Rugged IP67-protected magnesium aluminum alloy housing ensures durability.
  • Wide operating voltage range (9-35V DC) compatible with standard industrial power supplies.
  • Excellent temperature stability and low drift across the full -40°C to +85°C range.
  • High shock resistance (2000g, 0.5ms) for reliable operation in high-vibration environments.
  • Integrated 1.5-meter shielded cable with metal connector for secure connection.
  • Long-term reliability with a Mean Time Between Failures (MTBF) ≥ 90,000 hours.

Applications

  • Solar photovoltaic panel tracking systems for optimal sun angle alignment.
  • Structural health monitoring of towers, cranes, and construction equipment.
  • Industrial leveling and inclination control in lifting platforms and heavy machinery.
  • Precision angle measurement in medical imaging and rehabilitation equipment.
  • Agricultural machinery tilt monitoring for grader blades and implement control.

Technical Specifications

Measurement TypeSingle-Axis Inclinometer
Measurement Range±180°
Accuracy0.3°
Resolution0.03°
Output InterfaceRS485
Sensor TechnologyMEMS Accelerometer
Operating Voltage9V – 35V DC
Working Current20mA – 40mA
Output Frequency5Hz – 100Hz Adjustable
Operating Temperature-40°C to +85°C
Storage Temperature-55°C to +100°C
Protection LevelIP67
Housing MaterialMagnesium Aluminum Alloy
Impact Resistance2000g, 0.5ms
Insulation Resistance≥100MΩ
MTBF≥90000h
InstallationThree M4 Screws
ConnectorMetal Joint with 1.5m Cable
Dimensions (L×W×H)55 × 37 × 24 mm
Weight210g

Frequently Asked Questions

What is the communication protocol for the MSK217S RS485 interface?

The MSK217S RS485 interface typically uses the Modbus RTU protocol for communication. The baud rate, parity, and output frequency (5Hz to 100Hz) are configurable, allowing for seamless integration with industrial PLCs, SCADA systems, and data acquisition units that support standard Modbus communication.

What is the recommended power supply for this inclinometer?

The sensor operates on a wide 9V to 35V DC input range, making it compatible with common industrial 12V or 24V DC power supplies. It has low power consumption, drawing between 20mA and 40mA. Ensure the power source is stable and properly grounded to minimize electrical noise on the RS485 communication lines.

How do I mount and calibrate the MSK217S sensor?

Mount the sensor securely using the three provided M4 mounting holes, ensuring its sensing axis is aligned with the plane of measurement you wish to monitor. The sensor is factory-calibrated. For initial setup, you may need to define a zero-reference position in your control software after installation, as the output provides an absolute angle relative to gravity.

Is the MSK217S suitable for outdoor or high-vibration environments?

Yes. The sensor's IP67-rated magnesium aluminum alloy housing protects against dust and temporary water immersion. With a high shock resistance rating of 2000g and an operating temperature range from -40°C to +85°C, it is engineered for reliable performance in outdoor, construction, and high-vibration industrial applications.

Package Includes

  • 1 x BWSENSING MSK217S Single-Axis Inclinometer Sensor

Additional Information

Weight 0.21 kg
Dimensions 5.5 × 3.7 × 2.4 cm
