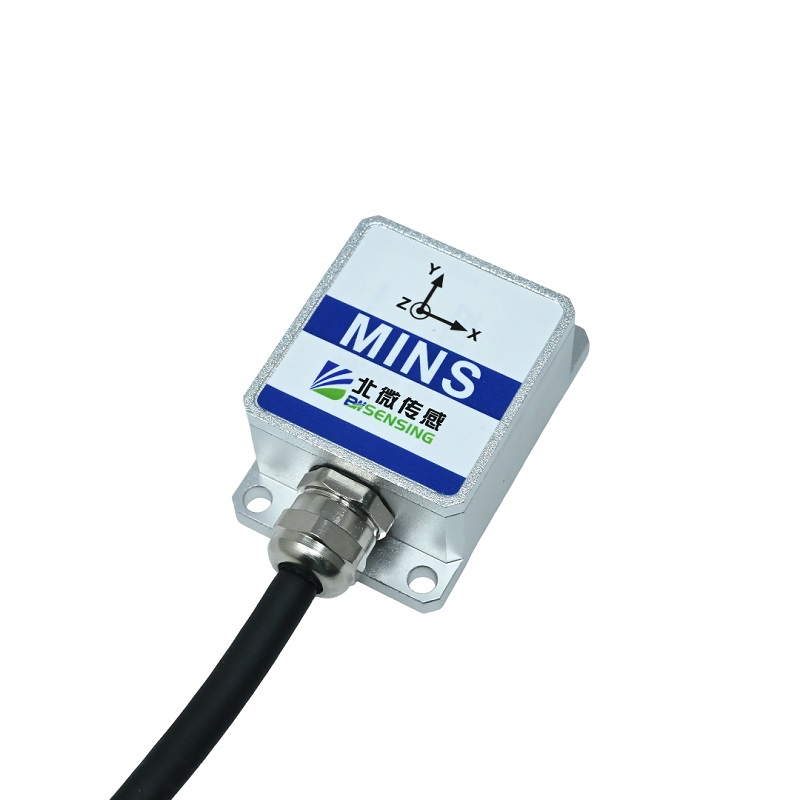

BWSENSING MINS55 Inclinometer Sensor, CAN Output, Pitch ±90°, Roll ±180°, Aluminum Shell
The BWSENSING MINS55 is a high-precision dual-axis inclinometer sensor with CAN bus output, designed for industrial automation and mobile equipment. It provides accurate pitch (±90°) and roll (±180°) measurements with a resolution of 0.01°, making it compatible with industrial PLCs, vehicle ECUs, and robotic control systems.
Features
- High-precision dual-axis tilt measurement with ±90° pitch and ±180° roll range.
- CAN bus (Controller Area Network) output for robust, noise-immune data communication.
- Excellent accuracy: 0.1° static and 3° dynamic for stable and moving applications.
- Wide operating temperature range from -40°C to +85°C for harsh environments.

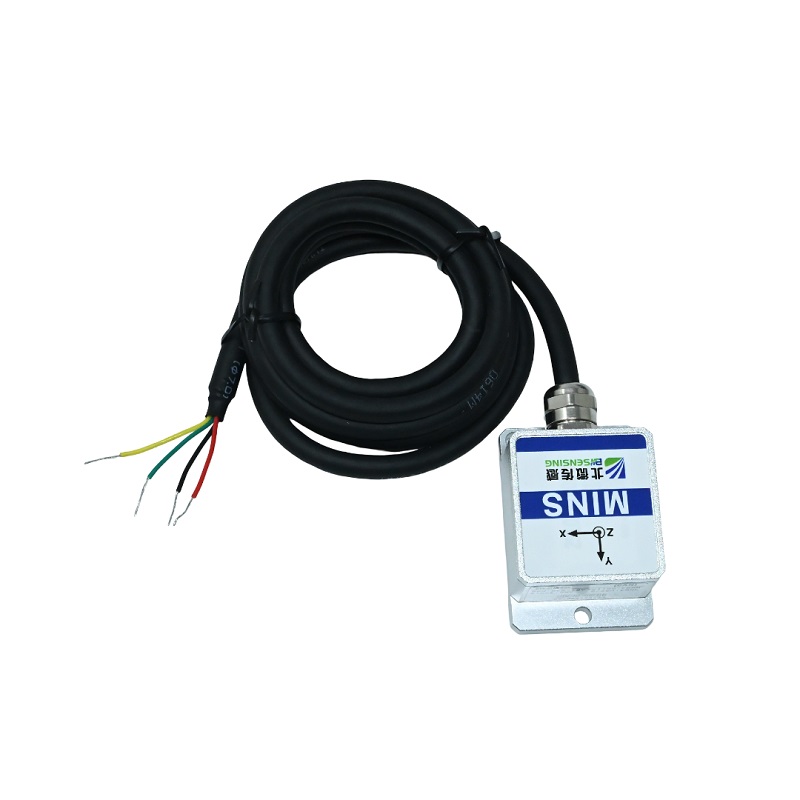

- Robust aluminum housing with integrated 1.5-meter cable for durable installation.
Out of stock
The BWSENSING MINS55 Inclinometer Sensor utilizes a Hall-effect sensing principle to provide precise and reliable angle measurement. Its robust aluminum shell ensures mechanical durability and thermal stability, allowing it to perform consistently across a wide temperature span from -40°C to +85°C.
Designed for integration into demanding control systems, the sensor outputs data via a CAN interface, which is ideal for applications requiring multi-node communication and high noise immunity, such as in automotive, construction machinery, and industrial automation networks. The device offers distinct accuracy specifications for static (0.1°) and dynamic (3°) conditions, making it suitable for both stationary monitoring and mobile equipment.
Additional Information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 5.5 × 3.7 cm |
