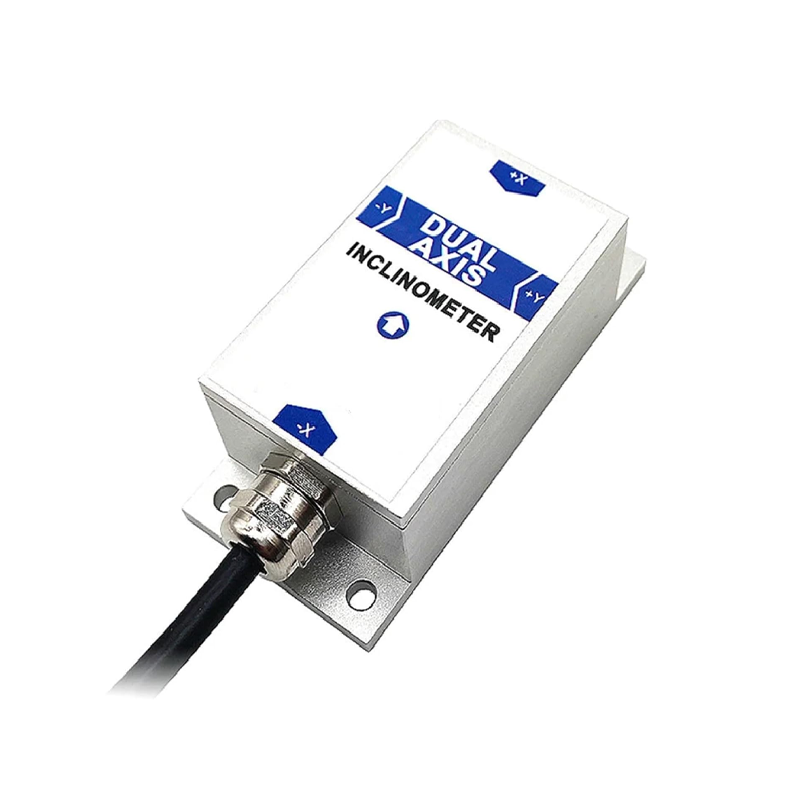

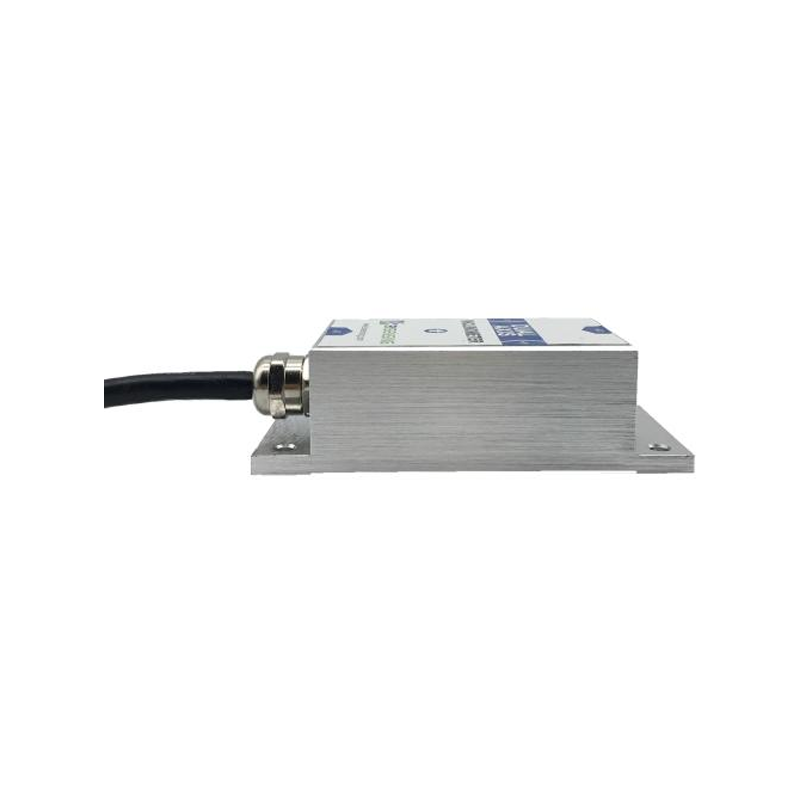

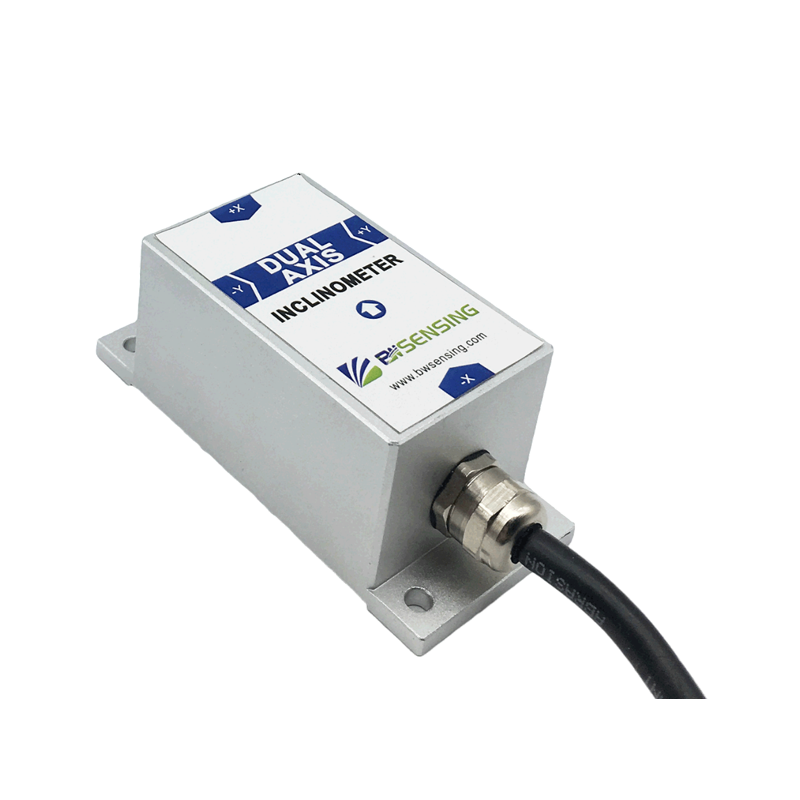

BWSENSING BWK228 Dual Axis Inclinometer Sensor, ±90° Range, 4-20mA Output
The BWSENSING BWK228 is a high-precision dual-axis inclinometer sensor with a ±90° measurement range and 4-20mA current output, designed for direct integration into industrial PLCs, SCADA systems, and 12-36V DC control panels for robust tilt and angle monitoring.
Features
- Dual-axis (X-Y) inclination measurement with ±90° range.
- High-precision 0.2° accuracy and 0.02° resolution.
- Industrial 4-20mA current loop output for long-distance transmission.
- IP67-rated aluminum housing for harsh environment durability.
- Wide operating temperature from -40°C to +85°C.
Out of stock
The BWSENSING BWK228 employs a MEMS-based sensing element to provide precise dual-axis tilt measurement, converting angular displacement into a stable 4-20mA analog signal ideal for noise-immune industrial communication. Its robust aluminum housing and IP67 protection ensure reliable operation in environments with dust, moisture, and mechanical vibration.
Designed for continuous monitoring, the sensor features a fast start-up time and a high response frequency of 100Hz, making it suitable for dynamic applications requiring real-time feedback. The wide 12-36V DC supply range and ≤500Ω output load capability offer flexible integration into existing industrial power and control architectures.
Additional Information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 9 × 4 cm |
