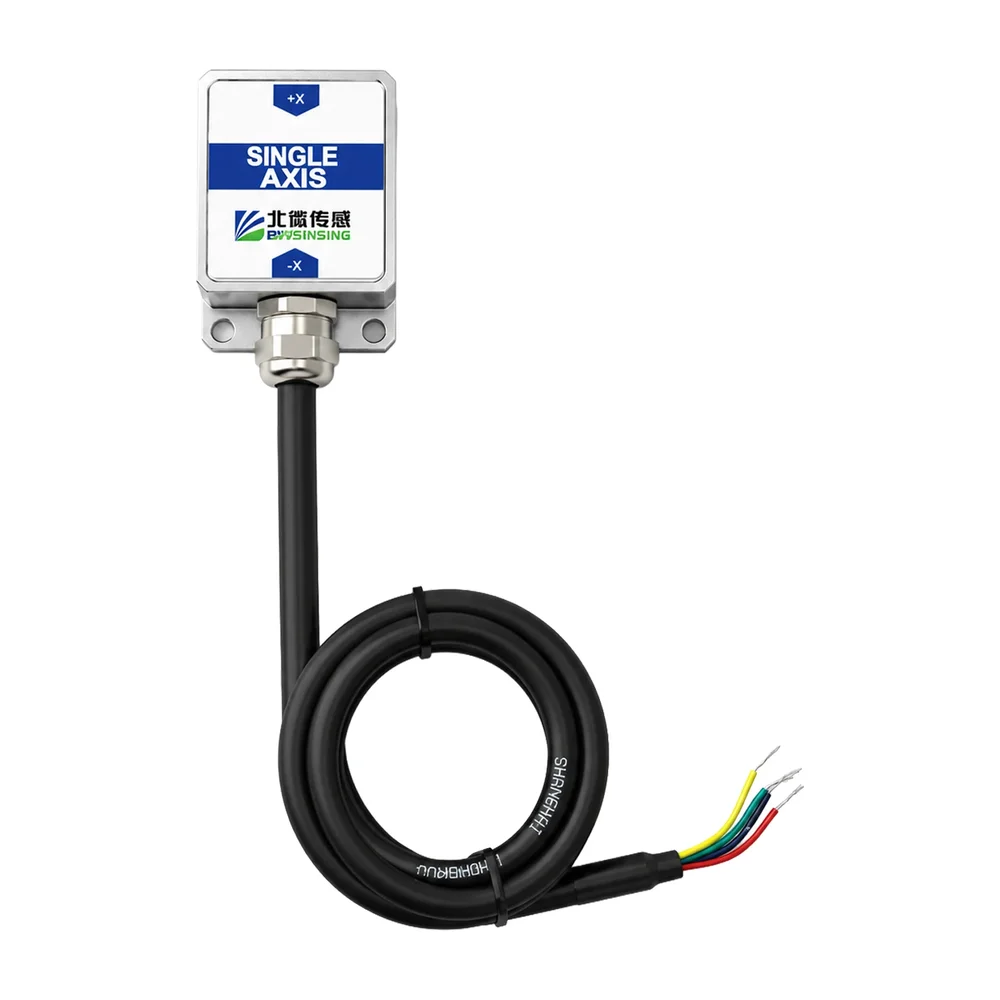

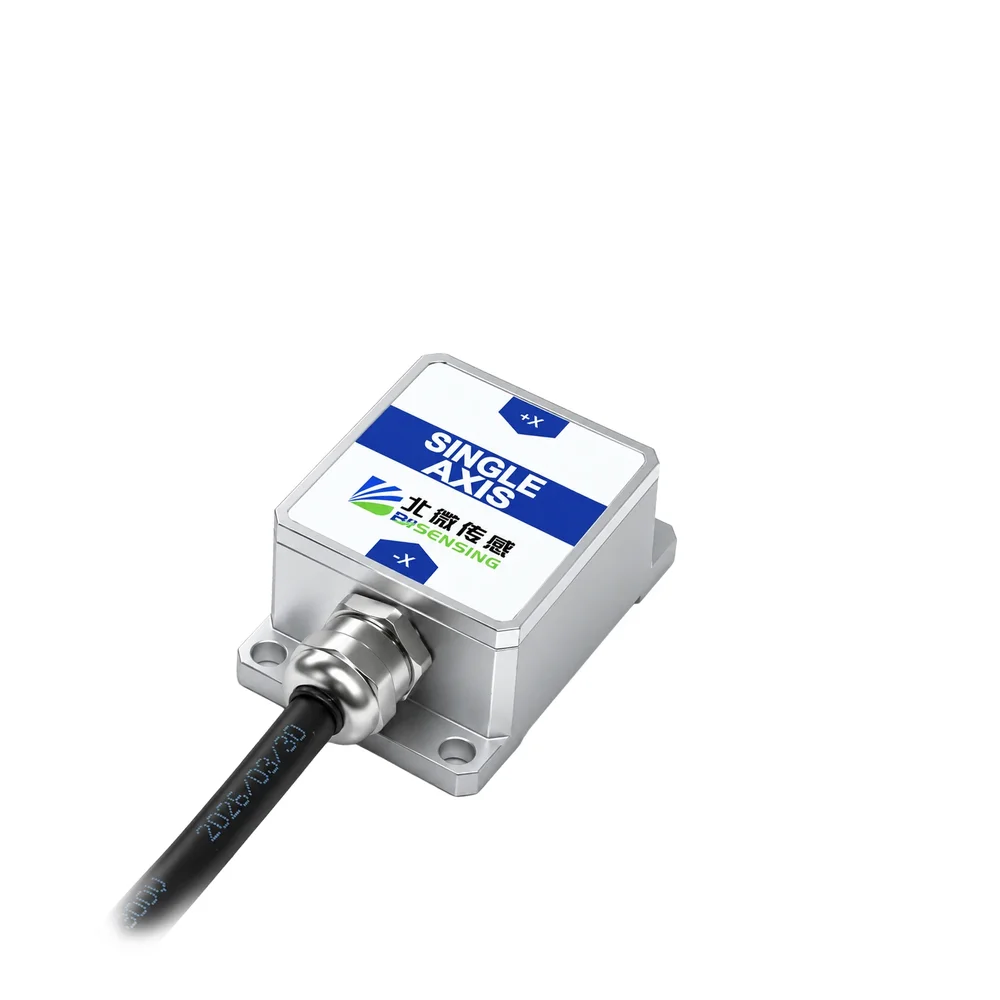

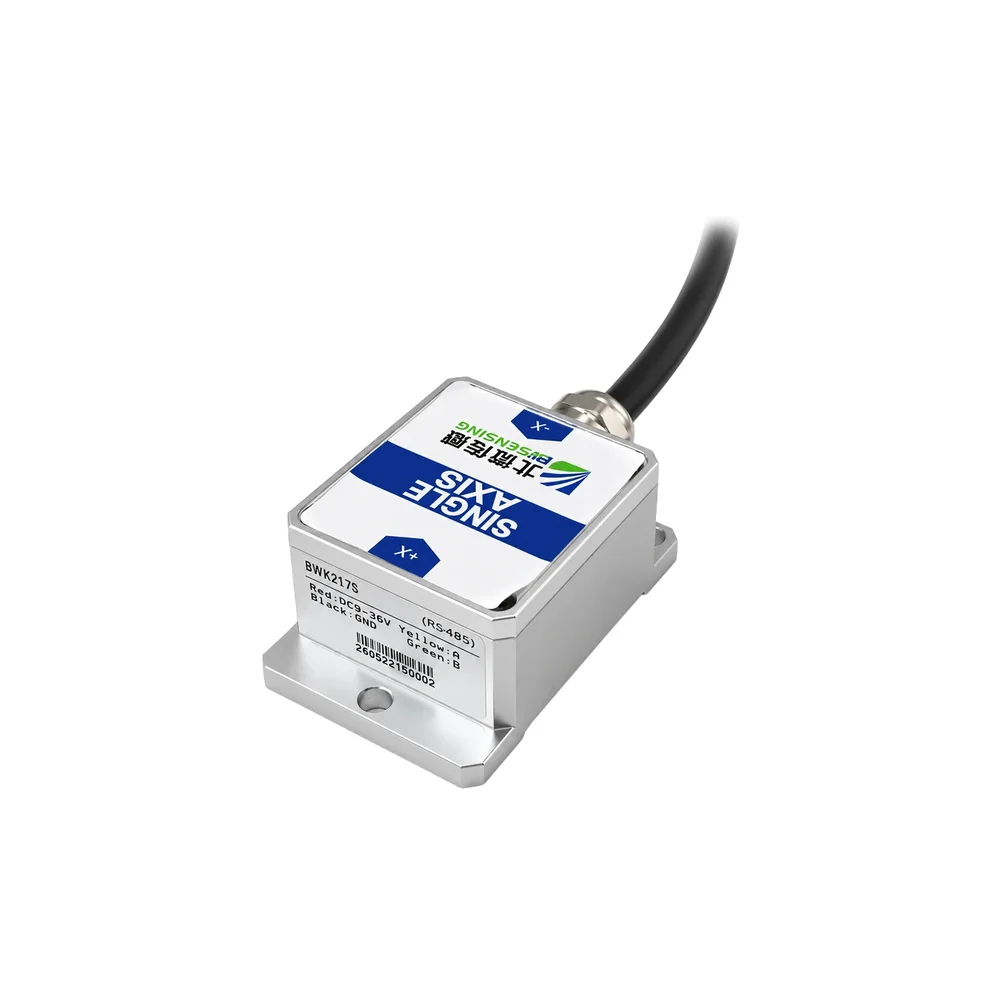

BWSENSING BWK217S Single-Axis Inclinometer Sensor, ±180° Range, 0.2° Accuracy, MEMS, RS485 Modbus
The BWSENSING BWK217S is a high-precision, single-axis MEMS inclinometer sensor offering a ±180° measurement range with 0.2° accuracy and RS485 Modbus output, designed for integration into industrial automation, structural monitoring, and leveling systems.
Features
- High-precision single-axis tilt measurement with ±180° range and 0.2° accuracy.
- MEMS sensing technology ensures stable, reliable, and long-term performance.
- Industrial-grade RS485 Modbus communication for robust, long-distance data transmission.
- Rugged IP67-rated enclosure for reliable operation in harsh environments.
- Wide 9–35V DC supply voltage range compatible with standard industrial power systems.
Out of stock
The BWSENSING BWK217S employs advanced MEMS (Micro-Electro-Mechanical Systems) sensing technology to deliver precise and stable single-axis inclination measurements. Its robust design and signal conditioning ensure reliable performance in industrial settings with significant vibration or temperature fluctuations.
Featuring an RS485 interface with Modbus RTU protocol, the sensor enables seamless integration into PLCs, SCADA systems, and data acquisition units, supporting multi-drop networks for efficient system monitoring. The IP67 protection rating safeguards the internal electronics against dust ingress and temporary water immersion, making it suitable for outdoor and challenging industrial applications.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 12 × 12 × 7 cm |
