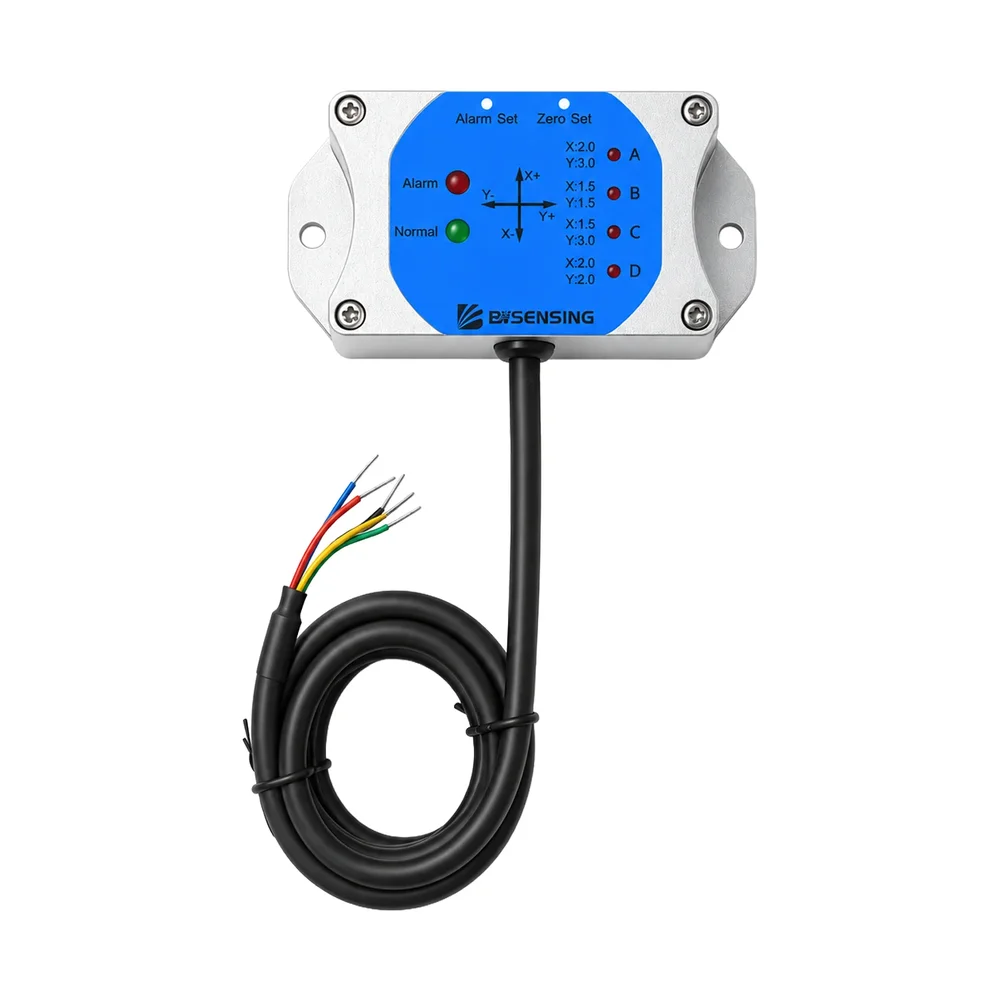

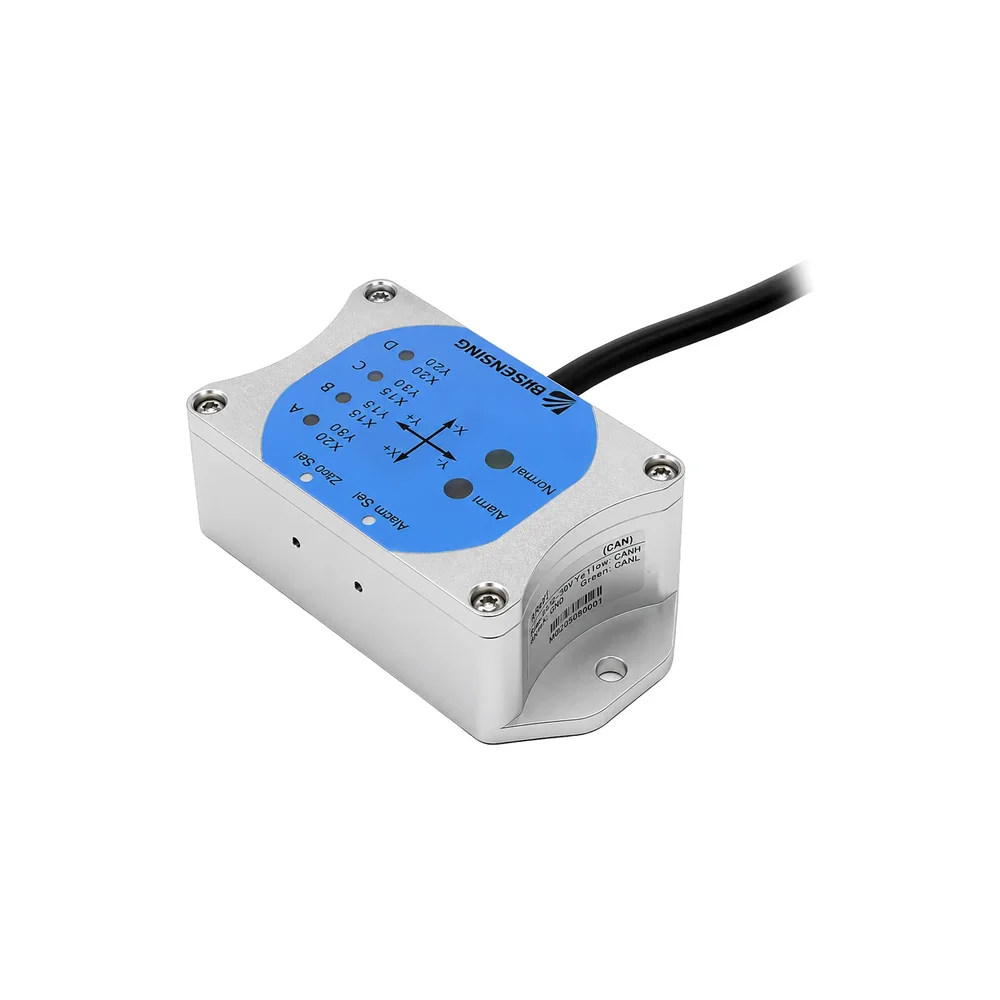

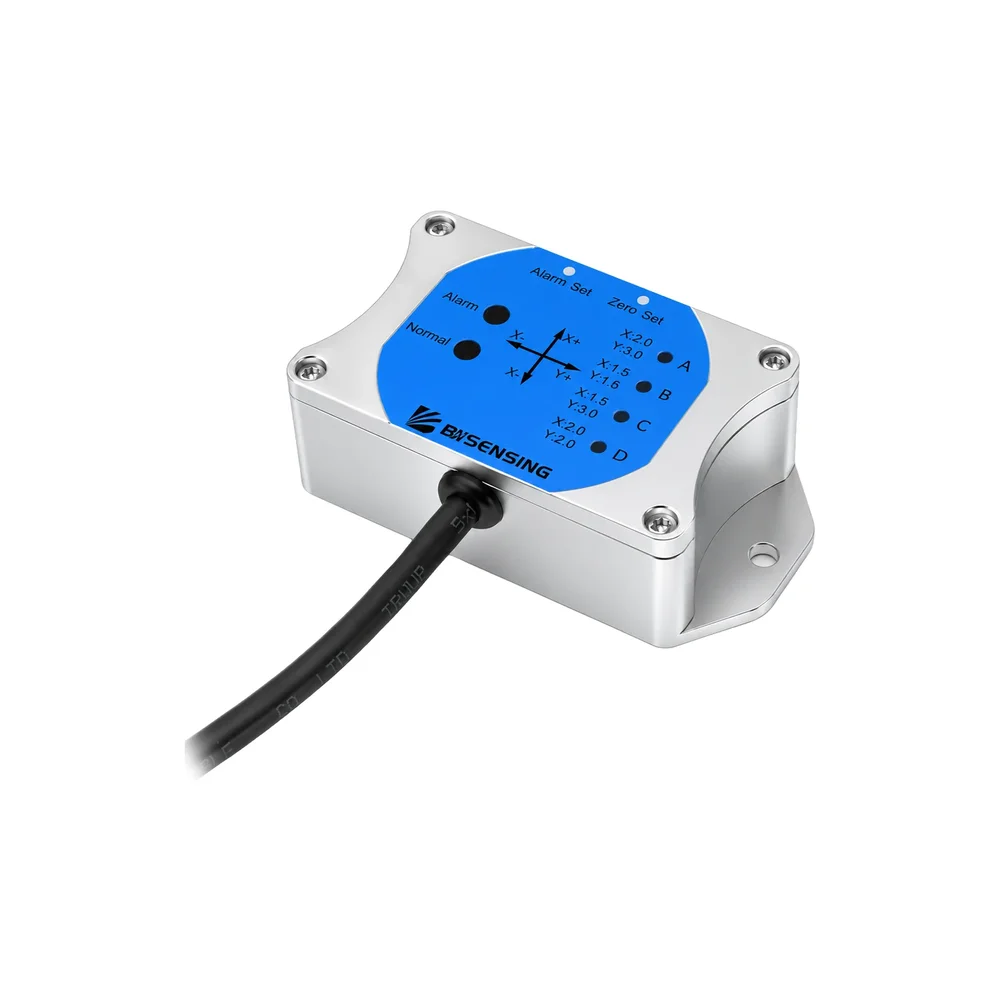

BWSENSING BIS341 Dual-Axis MEMS Inclinometer ±90° Range - RS485 Modbus, IP67
The BWSENSING BIS341 is a high-precision, dual-axis MEMS inclinometer offering a ±90° measurement range with 0.01° accuracy and 0.001° resolution. Designed for industrial integration, it features RS485 Modbus communication for robust, long-distance data transmission and is housed in an IP67-rated enclosure for harsh environment operation.
Features
- High-precision dual-axis tilt measurement with ±90° range.
- Advanced MEMS technology ensures 0.01° accuracy and 0.001° resolution.
- Industrial RS485 Modbus communication interface for noise-resistant data transmission.
- Rugged IP67-rated housing for operation in demanding outdoor and industrial conditions.
- Wide operating temperature range from -40°C to +85°C.
Out of stock
The BWSENSING BIS341 utilizes a sophisticated MEMS (Micro-Electro-Mechanical Systems) sensing element to provide stable and repeatable angle measurements across two perpendicular axes. This technology translates minute changes in gravitational force into precise digital angle data, making it ideal for structural health monitoring and platform leveling where long-term stability is critical.
Engineered for industrial environments, the sensor incorporates signal conditioning and digital filtering to deliver reliable performance despite vibration and thermal drift. Its IP67-rated enclosure provides robust protection against dust ingress and temporary water immersion, ensuring operational integrity in outdoor, construction, and heavy machinery applications.
Additional Information
| Weight | 0.372 kg |
|---|---|
| Dimensions | 12 × 12 × 7 cm |
