Flywoo GOKU F722 Pro V2 55A 32Bit 128K Stack (30x30) AM32 Version

₹9,689.00 (Inclusive of all taxes)
Out of Stock

The Flywoo GOKU F722 Pro V2 55A Stack is a high-performance 30x30mm flight controller and 4-in-1 ESC combo designed for 2-6S FPV drones. It features an STM32F722 processor, AM32 ESC firmware, and plug-and-play compatibility with the DJI O3 Air Unit for advanced freestyle and cinematic builds.

Features

  • High-performance STM32F722 MCU running at up to 216 MHz with 128KB Flash.
  • 55A continuous current 4-in-1 ESC running AM32 firmware on an AT32DEVF421 MCU.
  • Integrated 16MB black box for detailed flight logging and tuning diagnostics.
  • Dual BEC outputs: 10V/3A and 5V/3A for powering VTXs and accessories.
  • Snap-lock socket design for solder-free installation plus full solder pads for customization.

Out of stock

Description

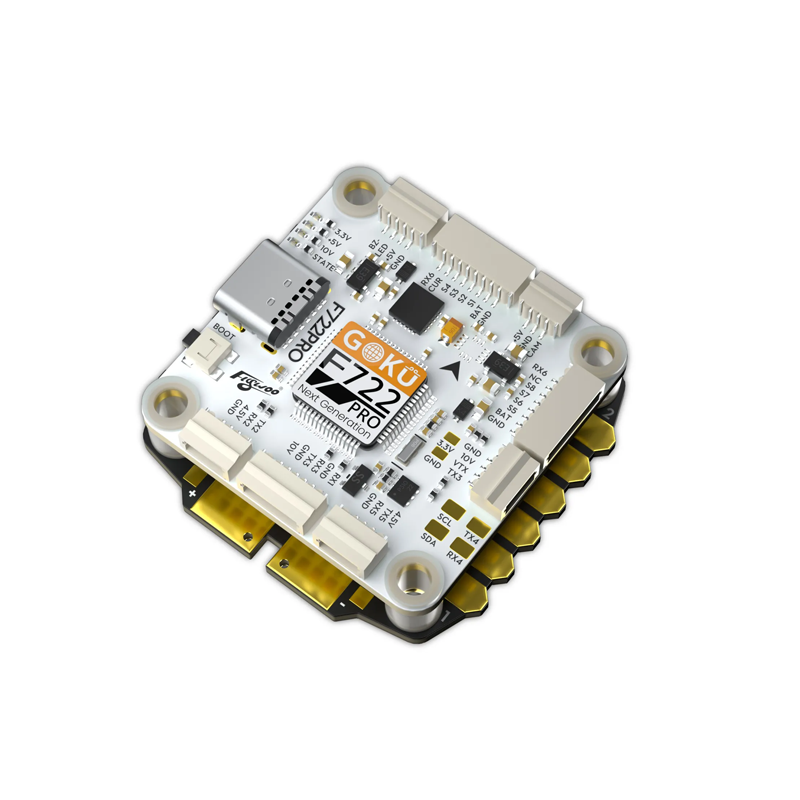

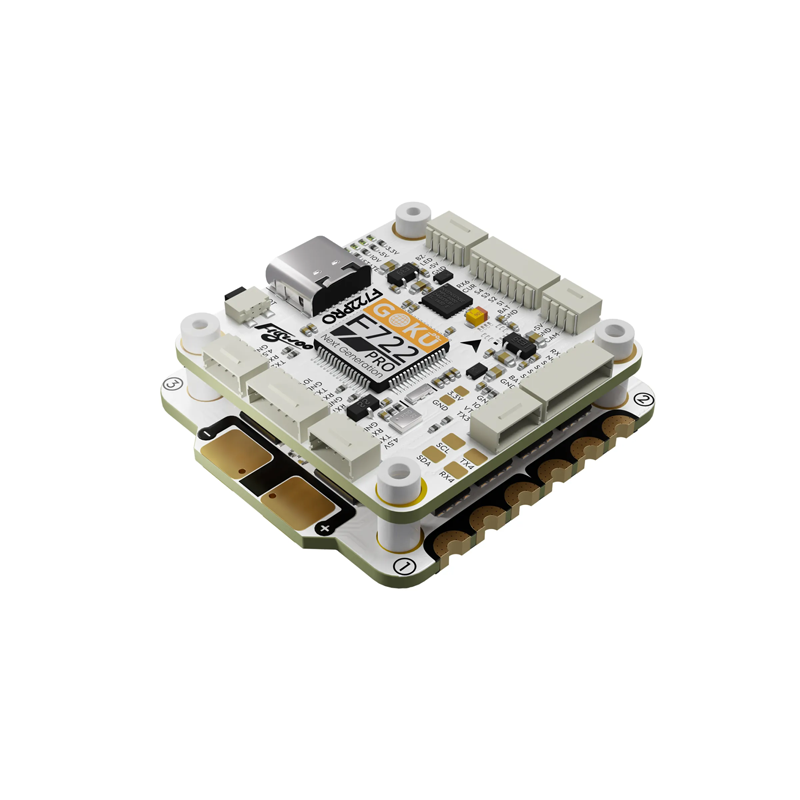

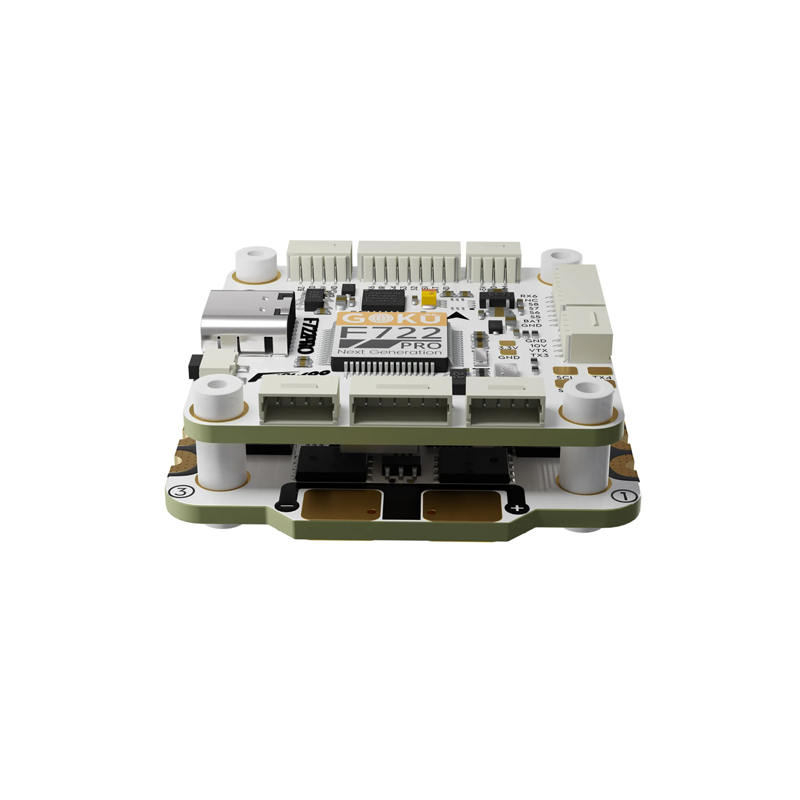

The GOKU F722 Pro V2 Stack combines a feature-rich flight controller with a robust 55A 4-in-1 ESC in a compact 30.5×30.5mm M3 mounting footprint. The FC is built around the STM32F722 microcontroller, delivering high-speed processing for complex flight algorithms and Betaflight/ArduPilot firmware. It is paired with an ICM42688 gyroscope for precise, low-noise attitude sensing, ensuring stable and responsive flight characteristics.

The integrated ESC utilizes the AM32 firmware platform on an AT32DEVF421 processor, supporting DShot300/600/1200 and a wide range of PWM frequencies. The immersion-gold PCB enhances durability and thermal performance under high-current loads. The stack’s modular design, featuring snap-lock connectors, simplifies wiring and assembly while maintaining the option for direct soldering, making it suitable for both quick builds and fully customized installations.

Key Features

  • Advanced Flight Controller: STM32F722 processor with 216 MHz clock speed and 128KB Flash memory for high-performance flight control firmware.
  • Precision Gyroscope: Integrated ICM42688 IMU provides accurate, low-drift angular rate data for stable flight performance.
  • High-Current ESC: 55A continuous current rating per motor output, capable of handling high-power 6S setups with robust AM32 firmware.

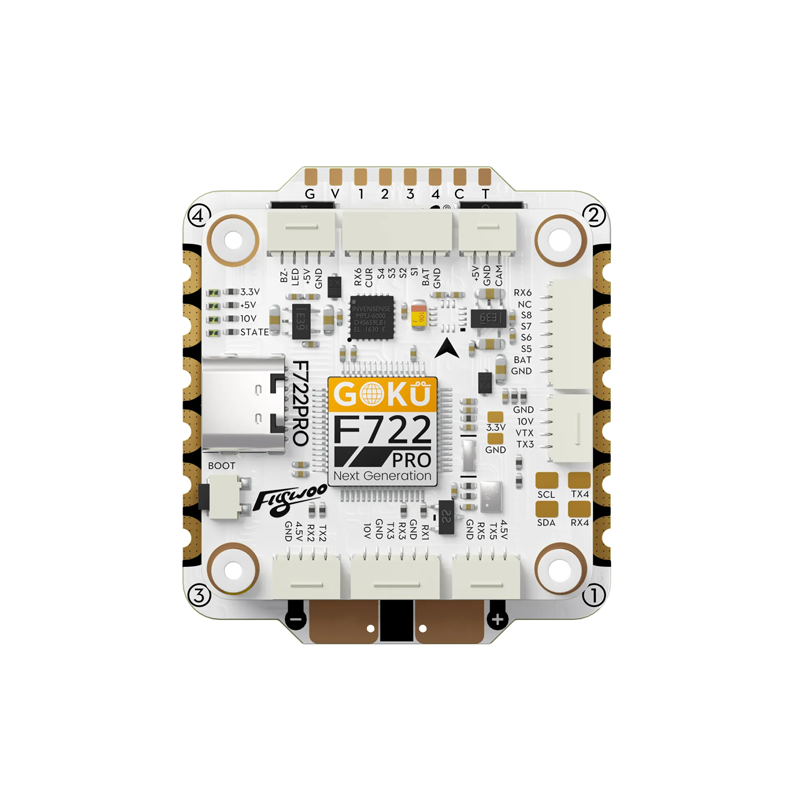

  • Comprehensive Connectivity: Features six UARTs, dedicated plugs for DJI O3 Air Unit, GPS, receiver, camera, and analog VTX systems.
  • Dual Switching BECs: Independent 10V/3A and 5V/3A regulated voltage outputs for powering digital VTXs, FPV cameras, and other peripherals.
  • Extensive Flight Logging: Onboard 16MB flash memory for black box data recording, essential for advanced PID tuning and crash analysis.
  • Durable Construction: Immersion-gold PCB finish improves corrosion resistance and thermal management for long-term reliability.

Applications

  • High-performance 5-inch FPV freestyle and racing drones requiring robust 6S power and advanced tuning capabilities.
  • Cinematic FPV builds utilizing the DJI O3 Air Unit for digital HD video transmission.
  • Long-range and exploration drones benefiting from multiple UARTs for GPS, telemetry, and peripheral integration.
  • Heavy-lift or payload-carrying multirotors where the 55A continuous current rating ensures motor control headroom.
  • Advanced DIY builds where the snap-lock modular design and extensive solder pads allow for flexible and clean installations.

Technical Specifications

Item TypeFC + ESC Stack
FC ProcessorSTM32F722 (216 MHz)
GyroscopeICM42688
BarometerDPS310/SPL06
ESC FirmwareAM32 (AT32DEVF421 MCU)
ESC Continuous Current55A
Input Voltage7.4V - 26V (2-6S LiPo)
BEC Outputs10V/3A, 5V/3A
Black Box Memory16 MB Flash
Motor ProtocolsDShot300/600/1200, PWM (24-128 kHz)
UART Ports6 (UART1, UART2, UART3, UART4, UART5, UART6)
Mounting Pattern30.5 x 30.5 mm (M3)
Dimensions (L x W)45 x 40 mm
Weight30 g

Frequently Asked Questions

What is the input voltage range for the GOKU F722 Pro V2 stack?

The stack accepts a wide input voltage range from 7.4V to 26V, which corresponds to 2S through 6S LiPo battery configurations. This makes it suitable for a broad spectrum of builds, from lightweight 2S setups to high-power 6S freestyle drones. The onboard dual BECs provide stable 10V and 5V outputs for your peripherals regardless of the main battery voltage.

Is this stack compatible with the DJI O3 Air Unit?

Yes, the GOKU F722 Pro V2 stack offers plug-and-play compatibility with the DJI O3 Air Unit. A dedicated connection cable is included in the package, simplifying the wiring for digital HD FPV systems. This integration provides a clean and reliable setup for cinematic and high-performance digital drone builds.

What firmware does the ESC run, and what motor protocols are supported?

The 4-in-1 ESC runs the AM32 firmware on an AT32DEVF421 microcontroller. It supports modern digital protocols including DShot300, DShot600, and DShot1200 for precise and fast motor control. It also supports traditional PWM signals with adjustable frequencies from 24 kHz to 128 kHz for compatibility with various flight controller firmware.

How many UARTs are available on the flight controller for peripherals?

The flight controller provides six fully accessible UART ports (UART1 through UART6). This ample connectivity allows you to simultaneously integrate a wide array of peripherals such as GPS modules, digital VTX control (like DJI O3), telemetry radios, RC receivers with serial protocols, and other sensors like airspeed or lidar without requiring softserial.

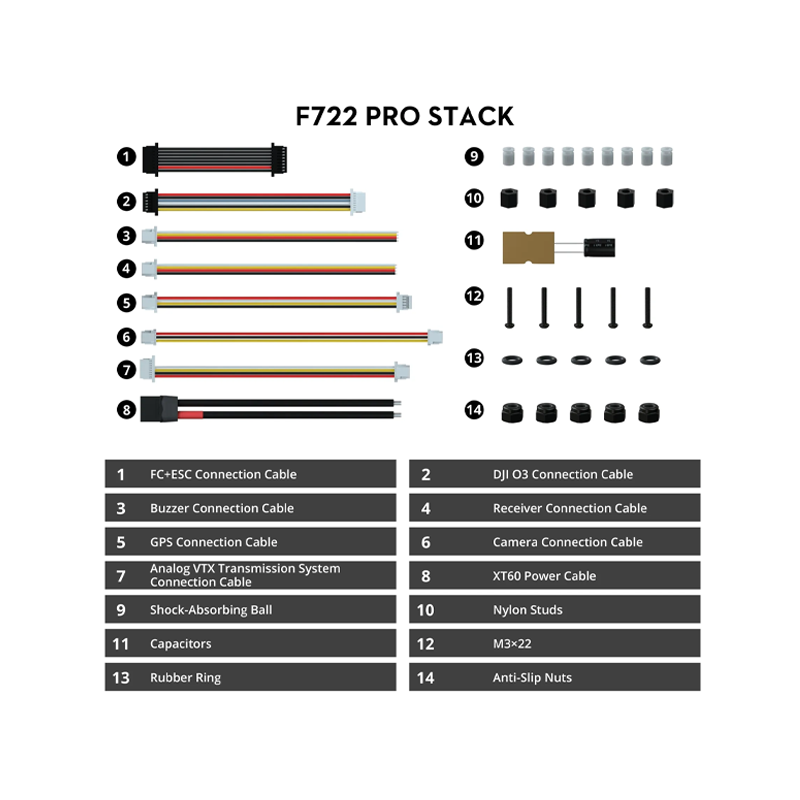

Package Includes

  • 1 x GOKU F722 PRO V2 Flight Controller
  • 1 x GOKU G55M BL32 AM32 4-in-1 ESC
  • 1 x FC to ESC Connection Cable
  • 1 x DJI O3 Connection Cable
  • 1 x Buzzer Connection Cable
  • 1 x Receiver Connection Cable
  • 1 x GPS Connection Cable
  • 1 x Camera Connection Cable
  • 1 x Analog VTX Connection Cable
  • 1 x XT60 Power Cable
  • 9 x Shock-Absorbing Balls
  • 5 x Nylon Standoffs
  • 1 x Capacitor
  • 5 x M3x22 Screws
  • 5 x Rubber Rings
  • 5 x Anti-Slip Nuts

Additional Information

Weight 0.03 kg
Dimensions 4.5 × 4 cm
