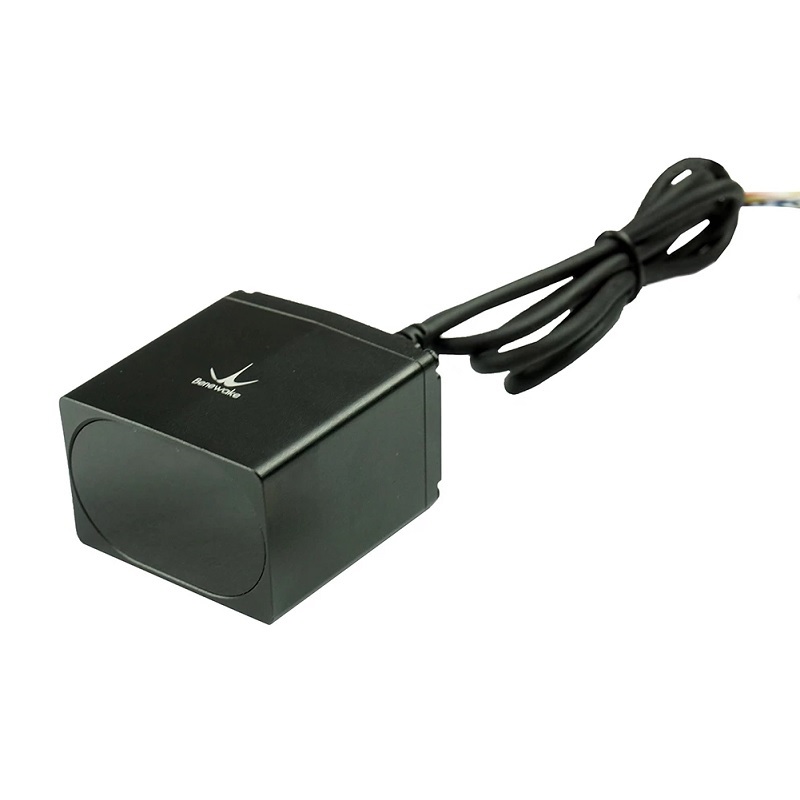

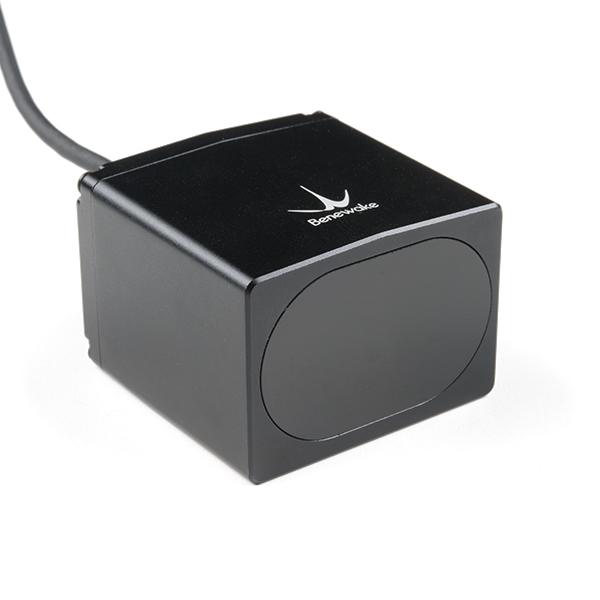

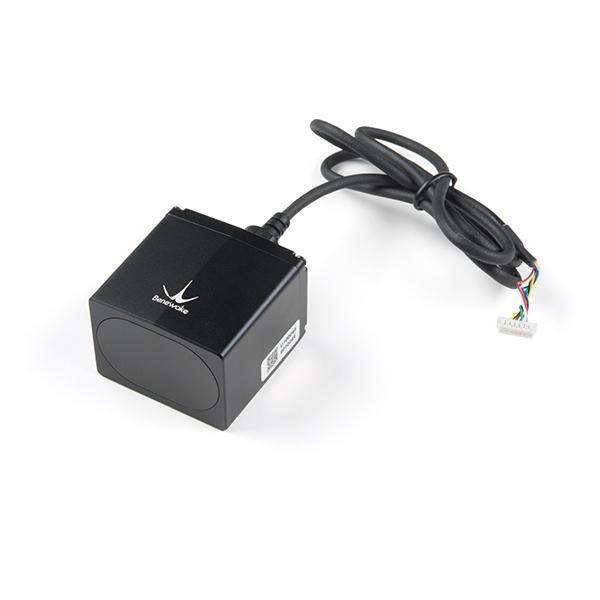

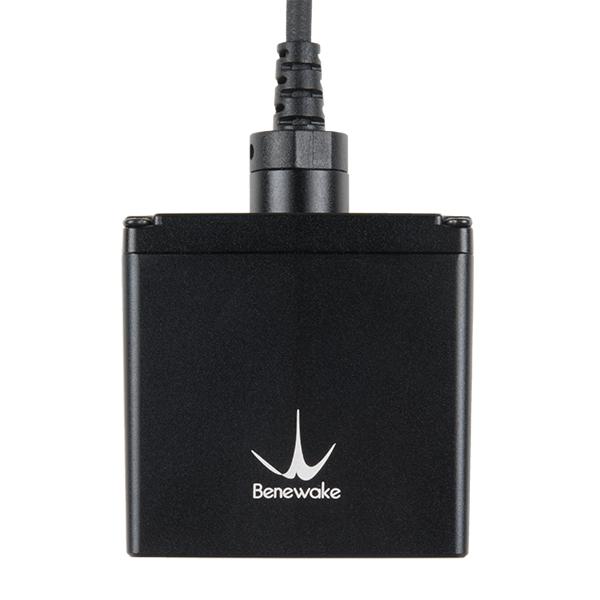

Benewake TF03-180 Industrial LiDAR Sensor, Range: 0.1m~180m - RS485/RS232 Interface, IP67
The Benewake TF03-180 is an industrial-grade, long-range LiDAR sensor utilizing pulsed time-of-flight (ToF) technology. It offers RS485 and RS232 communication interfaces, operates from a 6-24V DC supply, and is engineered for reliable performance in demanding outdoor environments with high ambient light resistance.
Features
- Extended detection range up to 180 meters (90% reflectivity) with high accuracy and resolution.
- Dual RS485/RS232 communication interfaces for flexible industrial system integration.
- IP67-rated rugged housing ensures reliable operation in rain, dust, and harsh conditions.
- High ambient light immunity (100 Klux) and multi-echo capability for stable outdoor use.
- Configurable frame rate up to 1 kHz and low power consumption for versatile applications.
Out of stock
The TF03-180 Industrial LiDAR Sensor from Benewake represents the third generation of the TF series, engineered for precision long-distance ranging. It employs a pulsed time-of-flight (ToF) principle, enhanced by a refined optical system and signal processing circuit to deliver consistent accuracy, repeatability, and high-speed measurement up to 10 kHz. The sensor integrates a compensating algorithm to mitigate interference from outdoor glare, rain, fog, and snow.
Designed for seamless integration into industrial control systems, drones, and automated machinery, the TF03-180 operates across a wide voltage range of 6-24V DC. Its compact, IP67-rated aluminum housing provides robust environmental protection, ensuring high reliability in challenging operational conditions. Multiple built-in operating modes allow for parameter customization to suit specific application requirements.
Additional Information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 4.4 × 4.3 × 3.2 cm |
