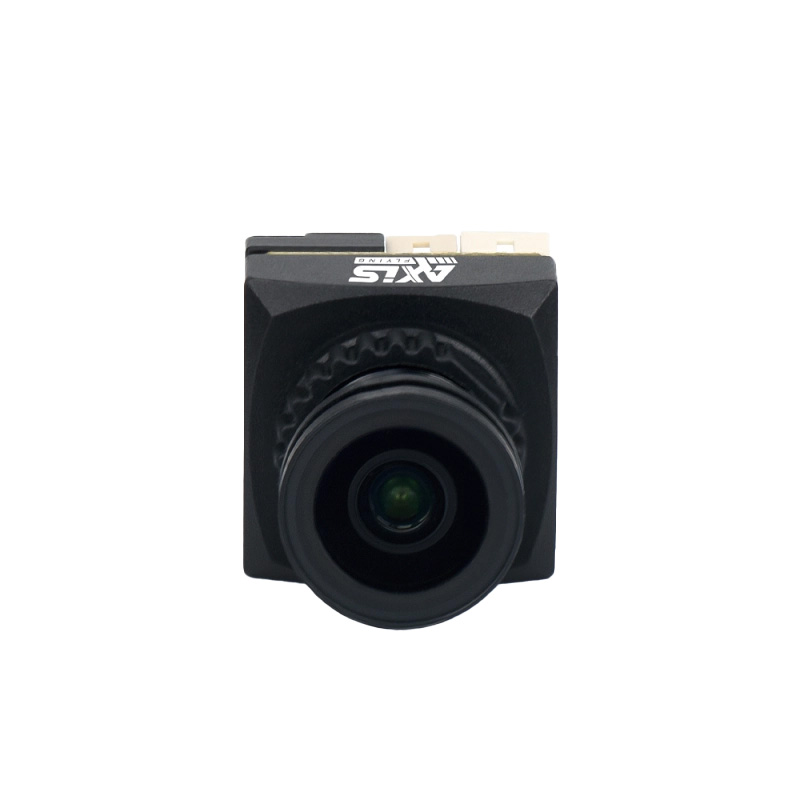

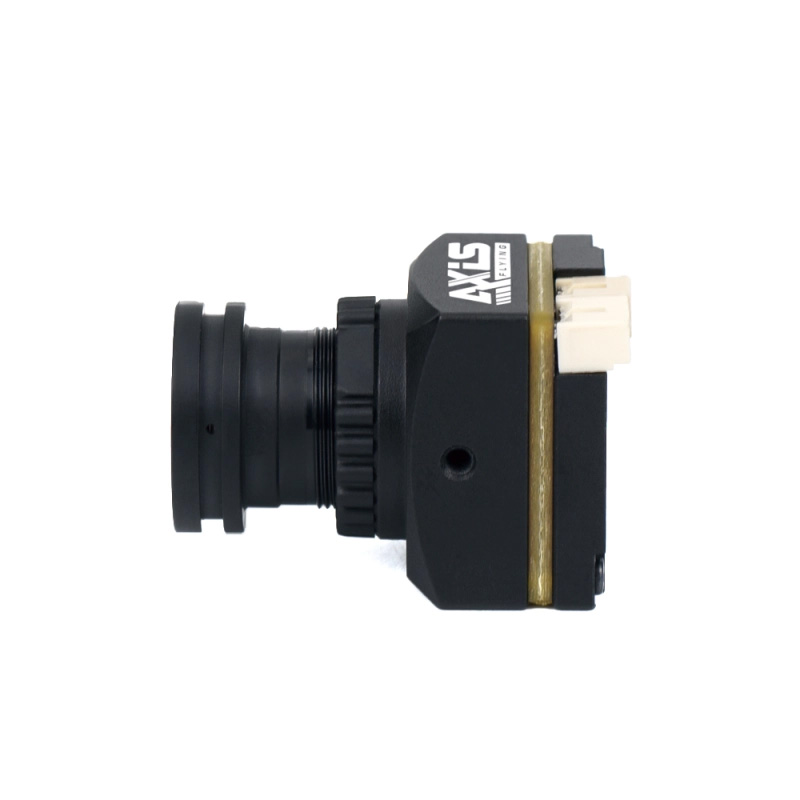

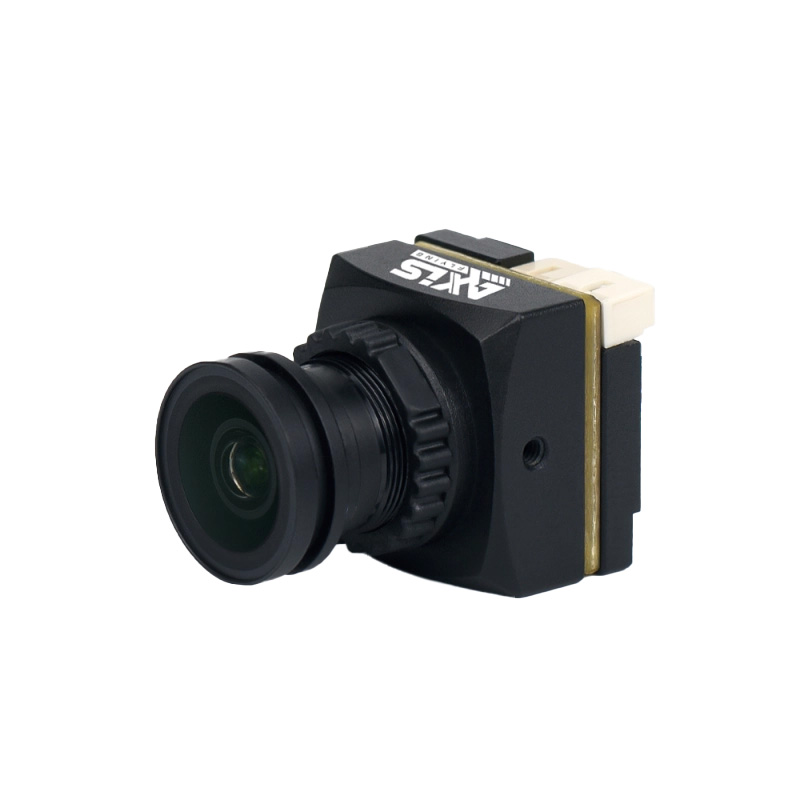

AxisFlying OWL Black Light CVBS Coaxial HD Module FPV Camera
The AxisFlying OWL Black Light CVBS Coaxial HD Module is a high-sensitivity FPV camera engineered for low-light and night flying applications. It features a 1/2.7″ sensor delivering 1080P @ 60fps video via CVBS coaxial output and is compatible with a wide 4.5V to 42V power input range for versatile FPV system integration.
Features
- Ultra-low-light sensitivity of 0.00001 Lux for night and dusk flying.
- 1080P @ 60fps high-definition video output via CVBS coaxial interface.
- Wide 4.5V to 42V DC input voltage range for flexible power system compatibility.
- Robust operational temperature range from -40°C to 75°C.
- On-screen display (OSD) menu for in-flight adjustment of brightness, contrast, and exposure settings.
Out of stock
The OWL Black Light camera utilizes a 1/2.7″ CMOS sensor with a high dynamic range of 72dB to preserve detail in both shadows and highlights during challenging lighting conditions. Its CVBS coaxial video output ensures straightforward compatibility with a wide array of analog FPV video transmitters and ground station equipment.
Engineered for durability, the module operates reliably across an extreme temperature spectrum, making it suitable for demanding environments. The integrated OSD menu, accessible via standard RC channel commands, provides pilots with real-time control over key imaging parameters without requiring external configuration software.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 1.96 × 1.96 cm |
