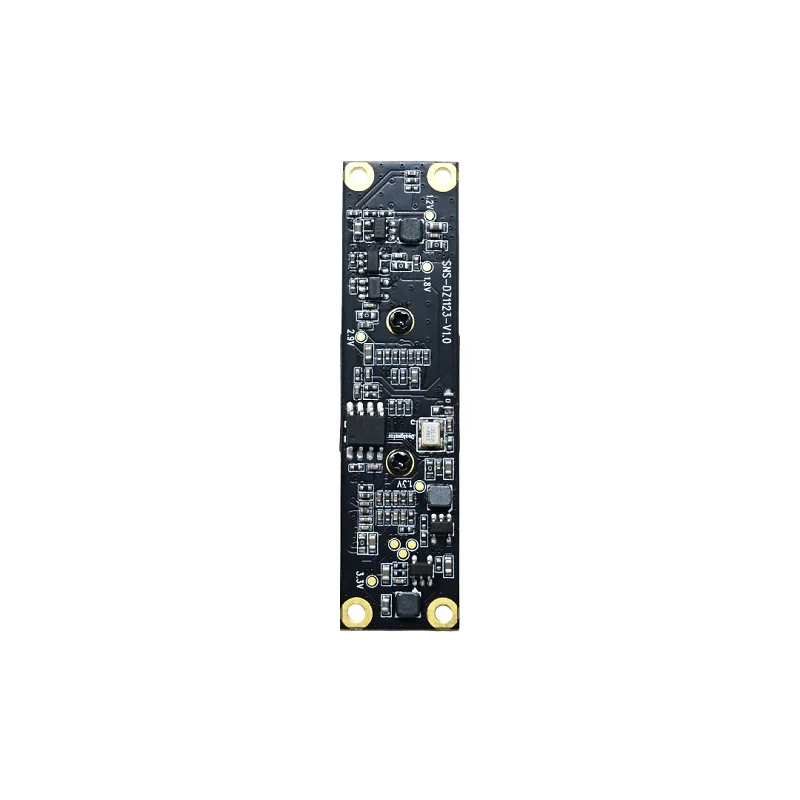

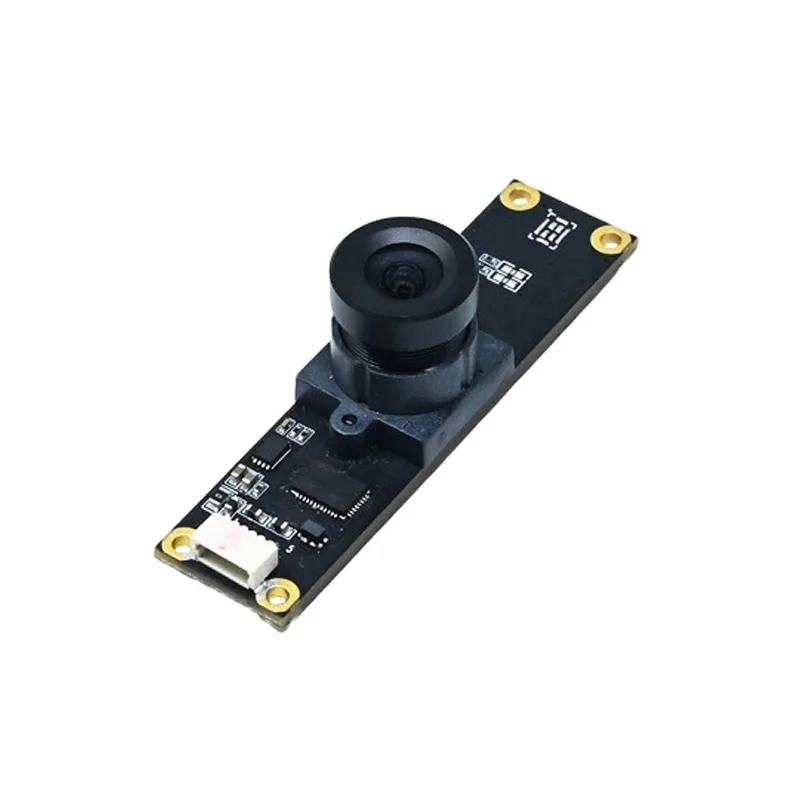

SinoSeen IMX307 USB 2.0 Camera Module 1080p Full HD
This SinoSeen camera module integrates a Sony IMX307 CMOS sensor for 1080p Full HD video at 30fps, featuring a USB 2.0 interface for plug-and-play compatibility with Windows, Linux, Mac, and Android systems. Its excellent low-light performance and integrated microphone make it ideal for machine vision and embedded applications.
Features
- Sony IMX307 1/2.8-inch CMOS sensor delivers 1920×1080 Full HD video at 30fps with excellent low-light sensitivity.
- USB 2.0 high-speed interface (480 MB/s) enables plug-and-play operation on Windows, Linux, Mac, and Android without external drivers.
- Fixed-focus M12 mount lens with 10mm focal length, F/6.0 aperture, and 35° field of view provides stable imaging.
- Supports multiple video output formats including RAW 10-bit, MJPG, and YUY2 for flexible integration into vision systems.
- Integrated dual digital noise reduction microphone enhances audio capture for multimedia and communication applications.
Out of stock
The SinoSeen IMX307 USB Camera Module is a compact imaging solution built around the industry-proven Sony IMX307 CMOS sensor. This progressive scan sensor outputs uncompressed 10-bit RAW data alongside compressed MJPG and YUY2 formats, providing developers with flexibility for computer vision and video streaming applications. Its 2.9µm pixel size is engineered for reliable performance in challenging low-illumination environments.

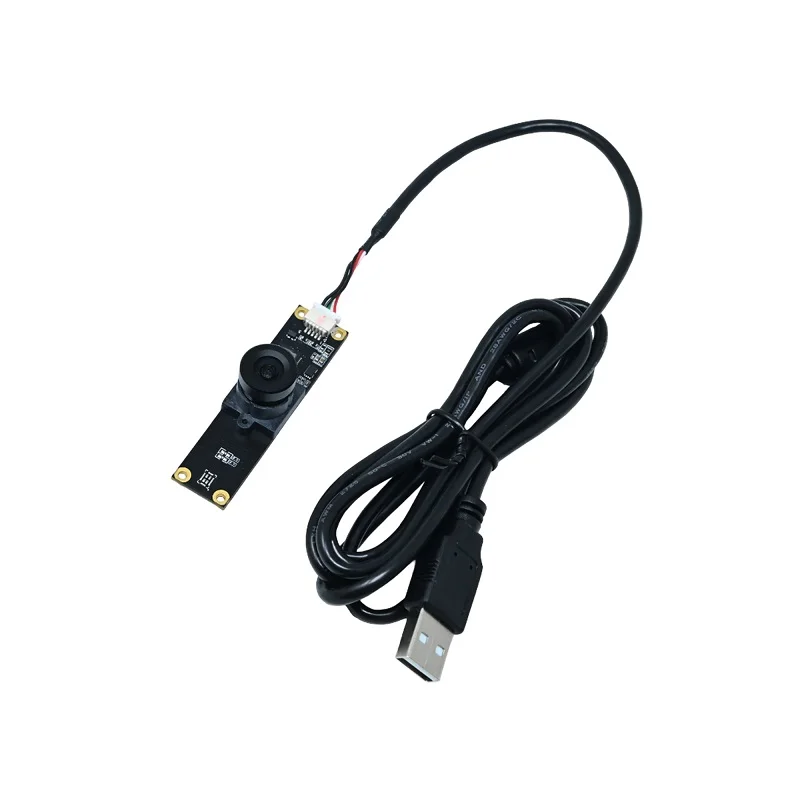

Connection is simplified via a standard USB 2.0 interface, offering a high-speed 480 MB/s transfer rate for real-time 1080p video. The module includes a fixed-focus M12 lens system with a 10mm focal length and a 35° field of view, designed for stable imaging in industrial settings. An onboard dual-microphone array with digital noise reduction further expands its utility in multimedia and teleconferencing setups.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 6.5 × 2 cm |
