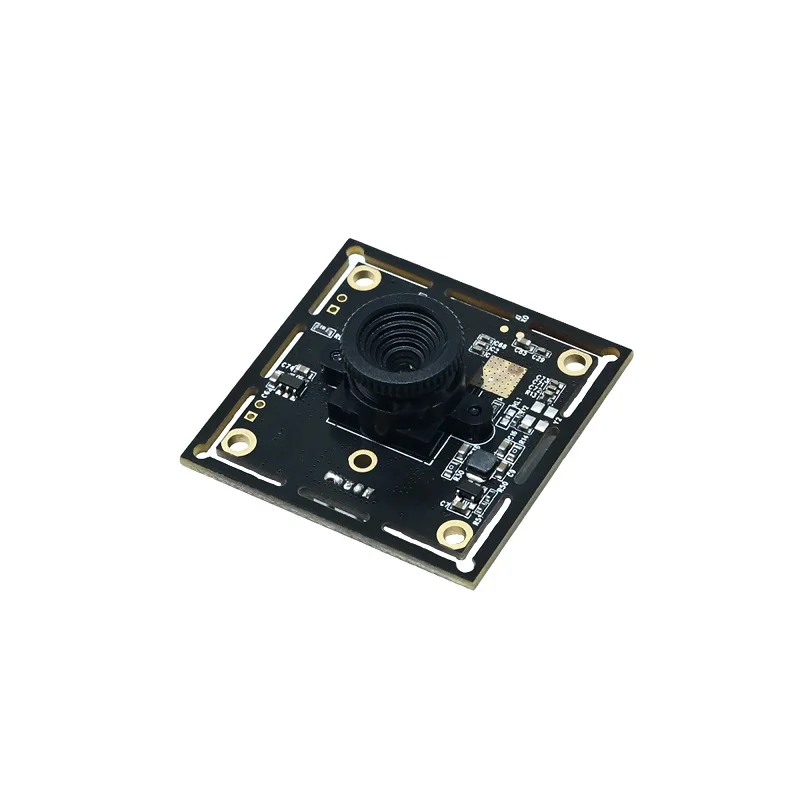

SinoSeen OV2735 USB2.0 Wide-Angle 1080p 30fps Surveillance Camera Module

The module offers plug-and-play USB Video Class (UVC) driver support, making it compatible with Windows (7/8/10/11), Linux (including Raspberry Pi OS), macOS, and Android systems. No additional proprietary drivers are typically required for basic MJPG or YUY2 streaming, ensuring quick integration into most development environments for computer vision applications.

To capture the uncompressed 10-bit RAW Bayer data, you must use a compatible software development kit or library that can configure the sensor's registers via the USB interface, such as OpenCV with V4L2 on Linux or specific manufacturer SDKs. This format provides the highest image data fidelity for advanced processing like debayering and dynamic range analysis but requires more bandwidth and processing power than compressed MJPG streams.

Yes, the module's F/1.8 aperture allows more light to reach the sensor, improving low-light performance. Furthermore, it supports the addition of external 940nm infrared LEDs (not included), which can be synchronized for invisible night illumination. This makes it suitable for 24/7 surveillance setups where maintaining a visible light source is undesirable.

This module features a remote-controlled auto-focus system. Focus adjustment is not manual; it is managed electronically through software commands sent via the USB interface. You will need to use a compatible application or SDK that can send the appropriate focus control commands (like auto-focus trigger or focus position) to the camera to adjust the lens from its default 60cm to infinity range.
