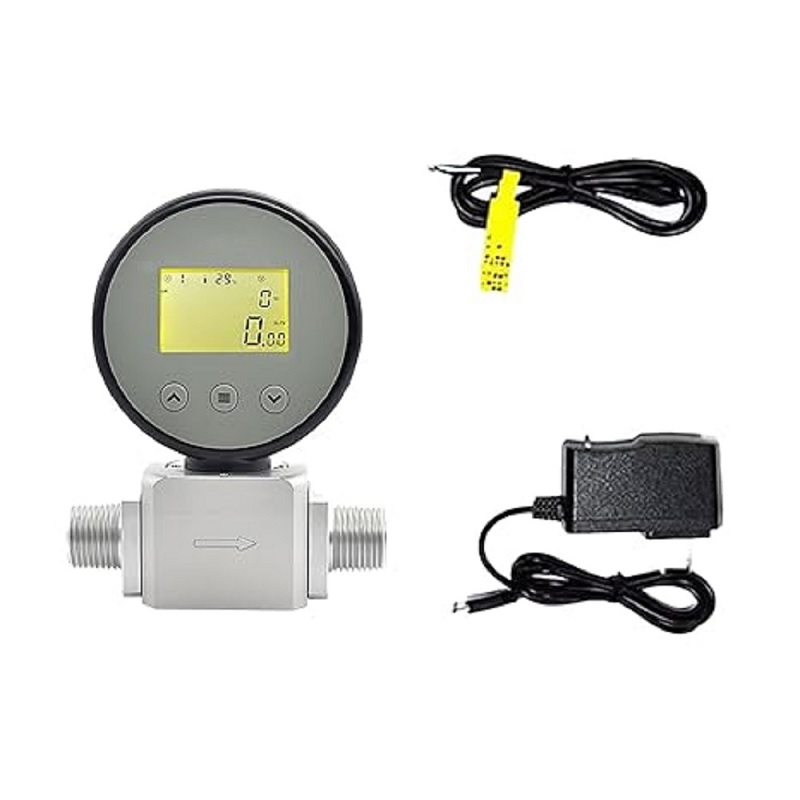

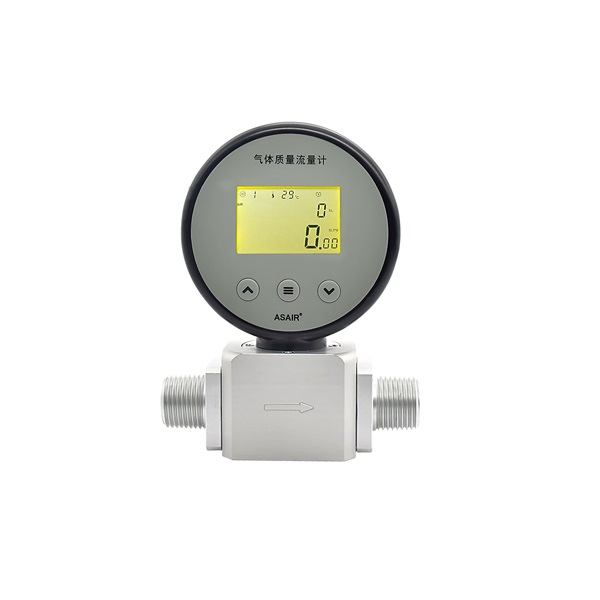

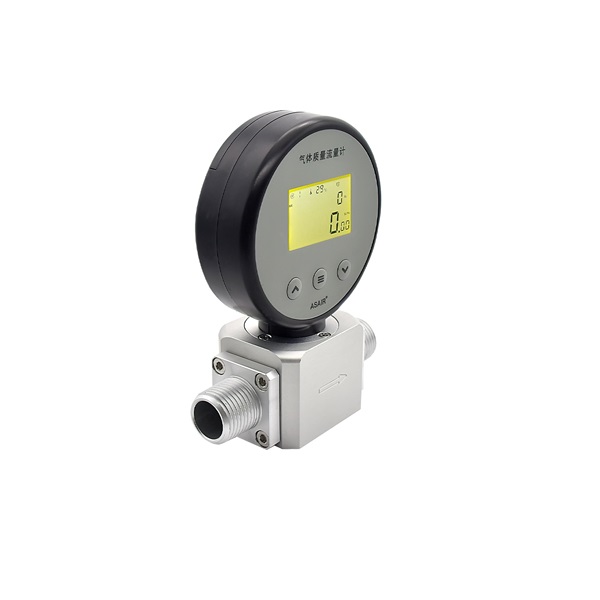

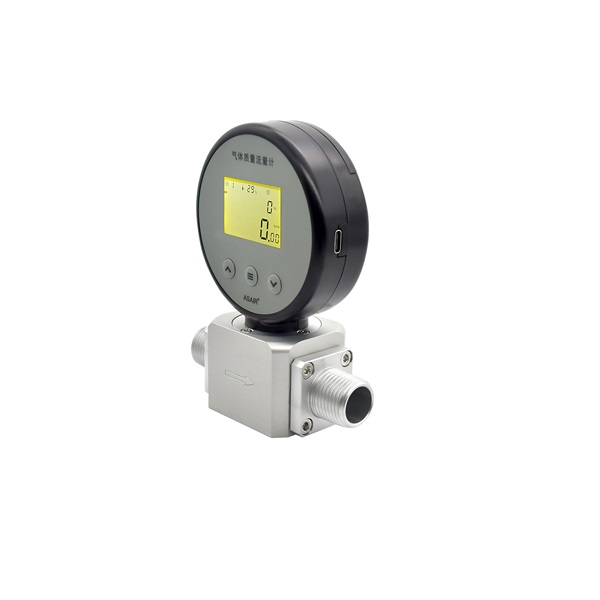

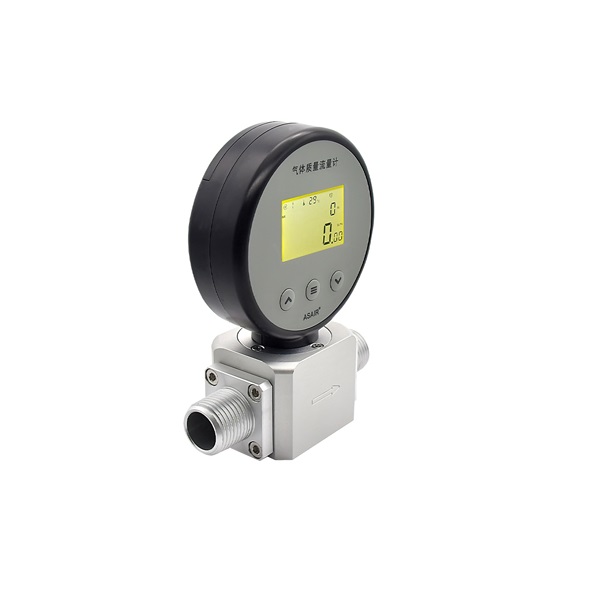

Asair AMS2106 Digital Display Gas Mass Flow Meter -200L/min - RS485 Modbus
The Asair AMS2106 is a digital display gas mass flow meter with a -200 L/min range, integrating thermal MEMS sensing technology and RS485 Modbus-RTU communication for direct mass flow and temperature measurement, compatible with industrial PLCs, SCADA systems, and data loggers.
Features
- Thermal MEMS mass flow chip for direct mass flow measurement with high accuracy and stability.
- Digital display shows real-time flow rate and temperature data.
- RS485 output with standard Modbus-RTU protocol for industrial system integration.
- Wide operating voltage range (9–24V DC) supports battery or external power.
- Broad measurement range from 0–50 mL/min to 0–300 L/min with good repeatability.
Out of stock
The Asair AMS2106 Digital Gas Mass Flow Meter operates on the thermal principle, calculating mass flow by measuring the resistance change in a self-developed MEMS chip. This design ensures excellent performance, stability, and reliability, characterized by high accuracy, good linearity, quick response, and resistance to high and low temperatures.
It provides integrated measurement of mass flow and temperature, supporting multiple gas types. The standard RS485 Modbus-RTU communication interface allows for seamless integration into industrial automation, process control, and environmental monitoring systems, providing precise, real-time flow data for critical applications.
Additional Information
| Weight | 0.533 kg |
|---|---|
| Dimensions | 16 × 15 × 8 cm |
