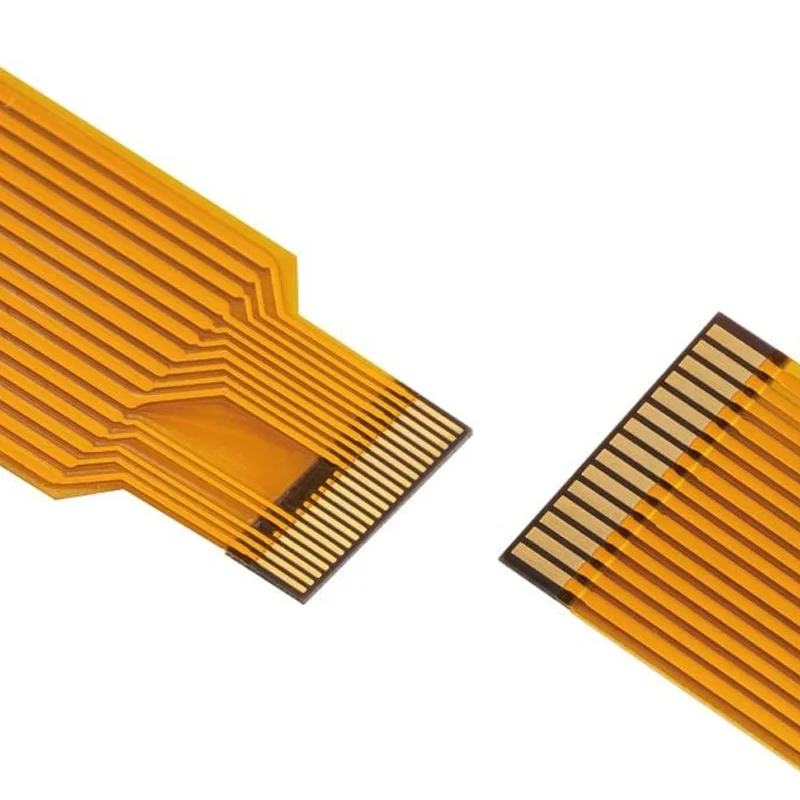

Arducam CB008 3.8cm 15-Pin to 22-Pin Camera Cable for Raspberry Pi Zero/W

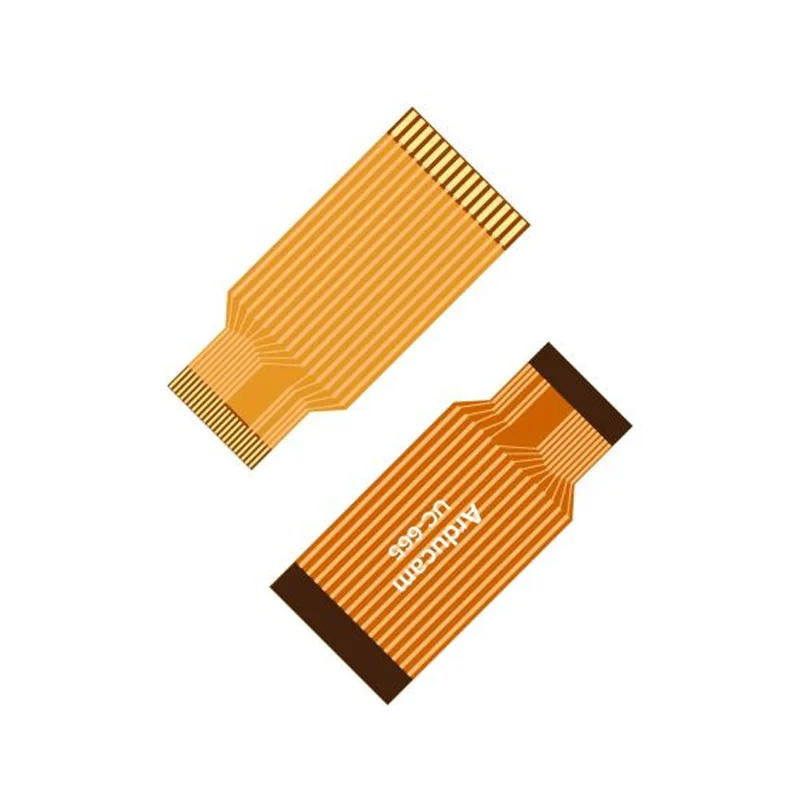

Arducam CB008 3.8cm 15-Pin to 22-Pin Camera Cable for Raspberry Pi Zero/W - Image 2

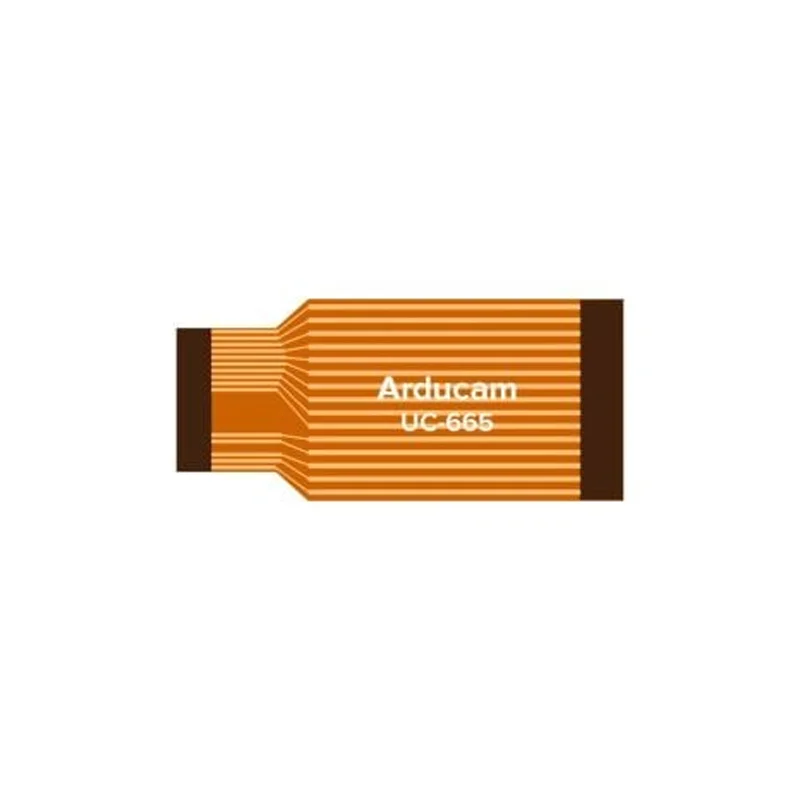

Arducam CB008 3.8cm 15-Pin to 22-Pin Camera Cable for Raspberry Pi Zero/W - Image 3
SKU: IOWC-0292
📋 GST Invoice Available

Arducam CB008 3.8cm 15-Pin to 22-Pin Camera Cable for Raspberry Pi Zero/W

₹229.00 (Inclusive of all taxes)
Out of Stock

The Arducam CB008 is a 3.8cm flexible flat cable (FFC) designed to interface Raspberry Pi Zero and Zero W boards with MIPI camera modules, enabling compact camera integration for embedded vision projects.

Features

  • 3.8cm flexible flat cable (FFC) for precise, space-constrained camera placement.
  • Converts Raspberry Pi Zero/W 15-pin (1.0mm pitch) to MIPI camera 22-pin (0.5mm pitch) interface.
  • Ensures reliable signal integrity for Arducam MIPI series camera modules.
  • Ideal for remote camera mounting in tight enclosures for security, monitoring, or 3D printing projects.

Out of stock

Description

The Arducam CB008 camera cable is a critical interface adapter for Raspberry Pi Zero and Zero W single-board computers, bridging the board’s native 15-pin camera connector to the 22-pin MIPI interface used by many compact camera modules. Its ultra-short 3.8cm length and flexible flat cable (FFC) construction allow for precise routing and placement in highly constrained project enclosures, essential for drones, portable devices, or embedded monitoring systems.

Engineered for signal integrity, this cable maintains the high-speed MIPI CSI-2 data lanes required for reliable video and image capture. It is the definitive solution for developers and makers needing to integrate Arducam or other compatible MIPI cameras with the Raspberry Pi Zero platform, facilitating projects in computer vision, smart home automation, and industrial inspection without sacrificing board compactness.

Key Features

  • Ultra-compact 3.8cm Flexible Flat Cable (FFC) for minimal-space integration.
  • Direct 15-pin to 22-pin interface conversion for Raspberry Pi Zero/W to MIPI cameras.
  • Maintains high-speed MIPI CSI-2 signal integrity for stable video capture.
  • Enables remote camera mounting away from the main board in tight enclosures.
  • Essential accessory for building compact, camera-based Raspberry Pi Zero projects.

Applications

  • Enabling camera modules on Raspberry Pi Zero for portable computer vision projects.
  • Remote camera mounting in tight-space security or monitoring enclosures.
  • Integrating vision sensors into 3D printer monitoring or robotics platforms.
  • Building compact IoT devices with embedded imaging capabilities.

Technical Specifications

Item TypeCamera Cable
CompatibilityRaspberry Pi Zero/W, Arducam MIPI Series
Connector A15-Pin, 1.0mm pitch (Raspberry Pi Zero/W)
Connector B22-Pin, 0.5mm pitch (MIPI Cameras)
Cable TypeFlexible Flat Cable (FFC)
Cable Length3.8 cm
Cable Width16 mm
Weight2 g

Frequently Asked Questions

Which Raspberry Pi models is the Arducam CB008 cable compatible with?

The CB008 cable is specifically designed for the Raspberry Pi Zero and Raspberry Pi Zero W models. It connects to the 15-pin camera serial interface (CSI) port on these boards. It is not compatible with the standard 22-pin connector found on larger Raspberry Pi models like the Pi 3 or Pi 4.

What cameras can I connect using this 15-pin to 22-pin cable?

This cable is intended to connect your Raspberry Pi Zero/W to camera modules that use a standard 22-pin MIPI CSI-2 interface with a 0.5mm pitch connector. It is explicitly compatible with Arducam's own MIPI series cameras. Always verify your specific camera module uses the correct 22-pin, 0.5mm pitch connector before purchase.

How do I install and connect the Arducam CB008 cable to my setup?

First, ensure your Raspberry Pi Zero is powered off. Gently lift the retaining clip on the Pi's 15-pin camera connector. Insert the cable's 15-pin end firmly, then press the clip back down to lock it. Next, connect the cable's 22-pin end to your MIPI camera module. Power on the Pi and enable the camera interface via `raspi-config` or by adding `start_x=1` to your `/boot/config.txt` file.

Why is the cable only 3.8cm long, and what are the benefits?

The 3.8cm length is designed for ultra-compact projects where the Raspberry Pi Zero and camera must be placed in very tight enclosures, such as in drones, portable devices, or small monitoring boxes. The short length minimizes cable clutter, reduces potential signal interference, and allows for precise, rigid mounting of the camera module relative to the main board.

Package Includes

  • 1 x Arducam CB008 3.8cm 15-pin to 22-pin Camera Cable

Additional Information

Weight 0.002 kg
Dimensions 3.8 × 0.8 cm
