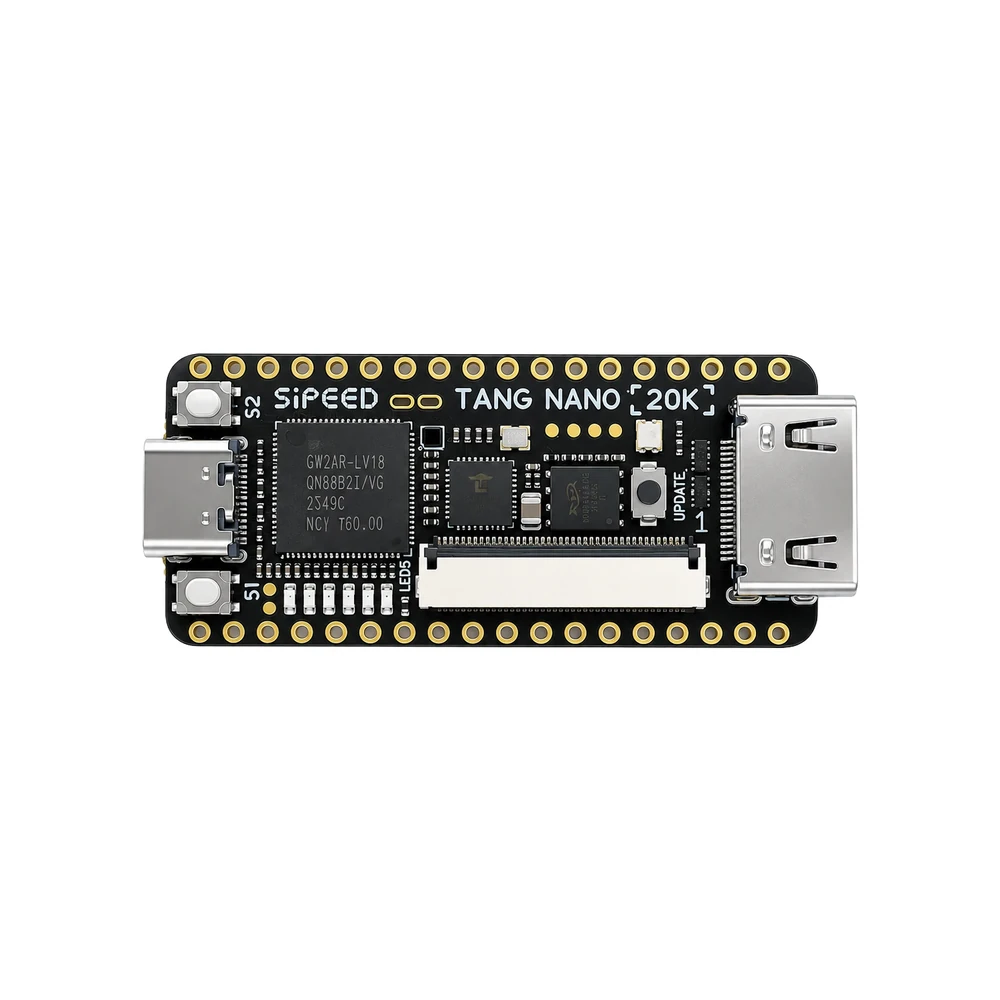

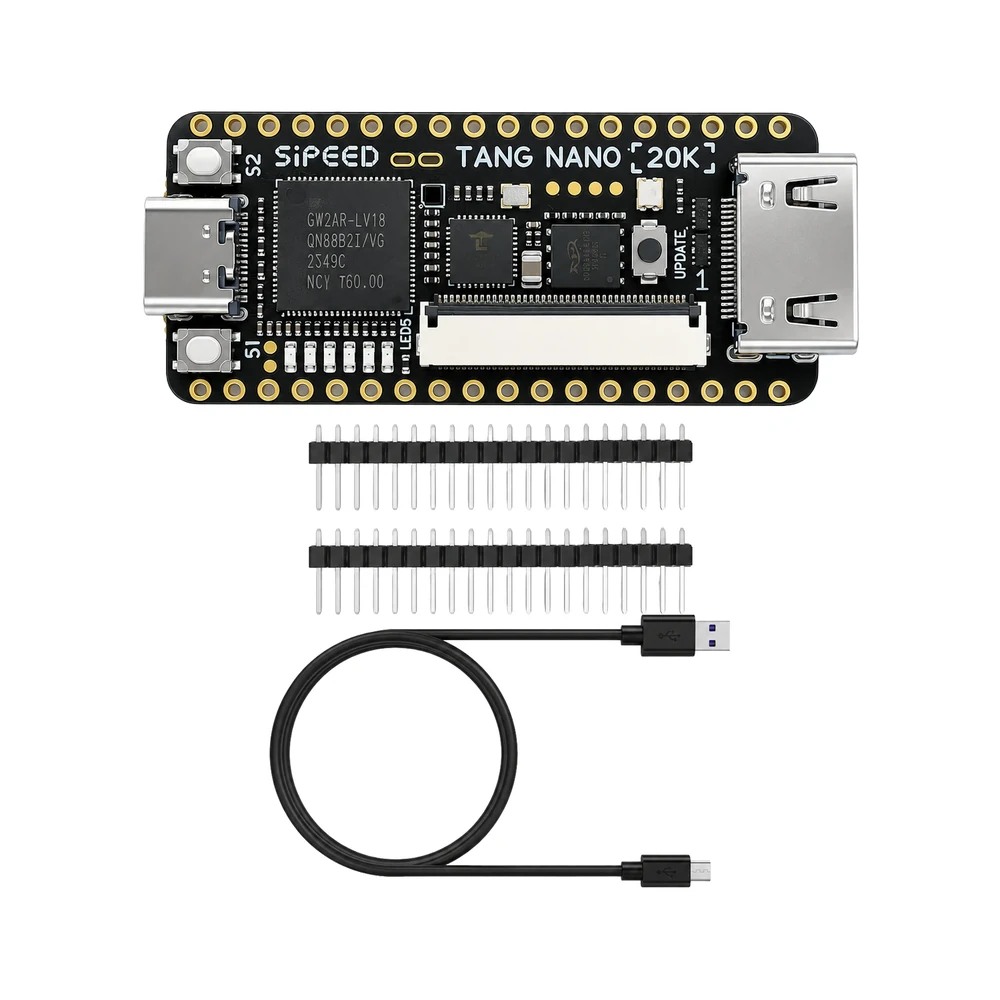

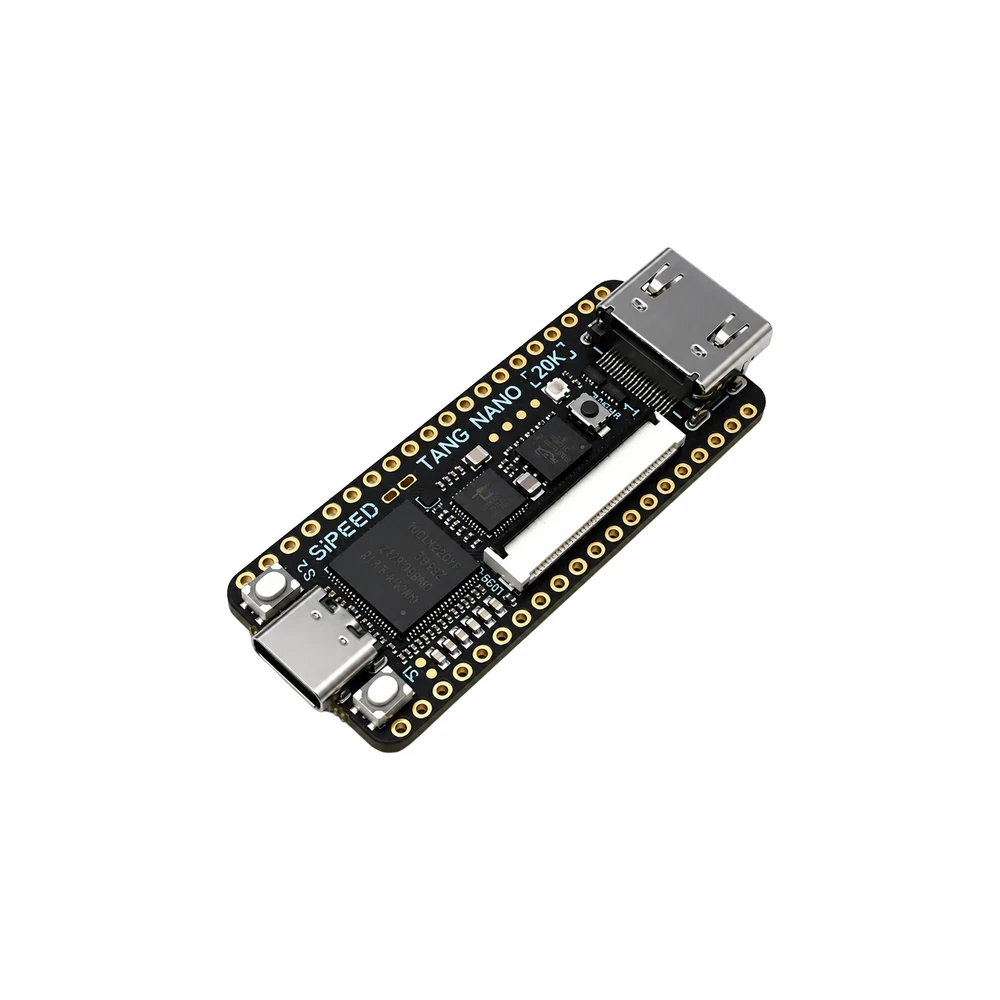

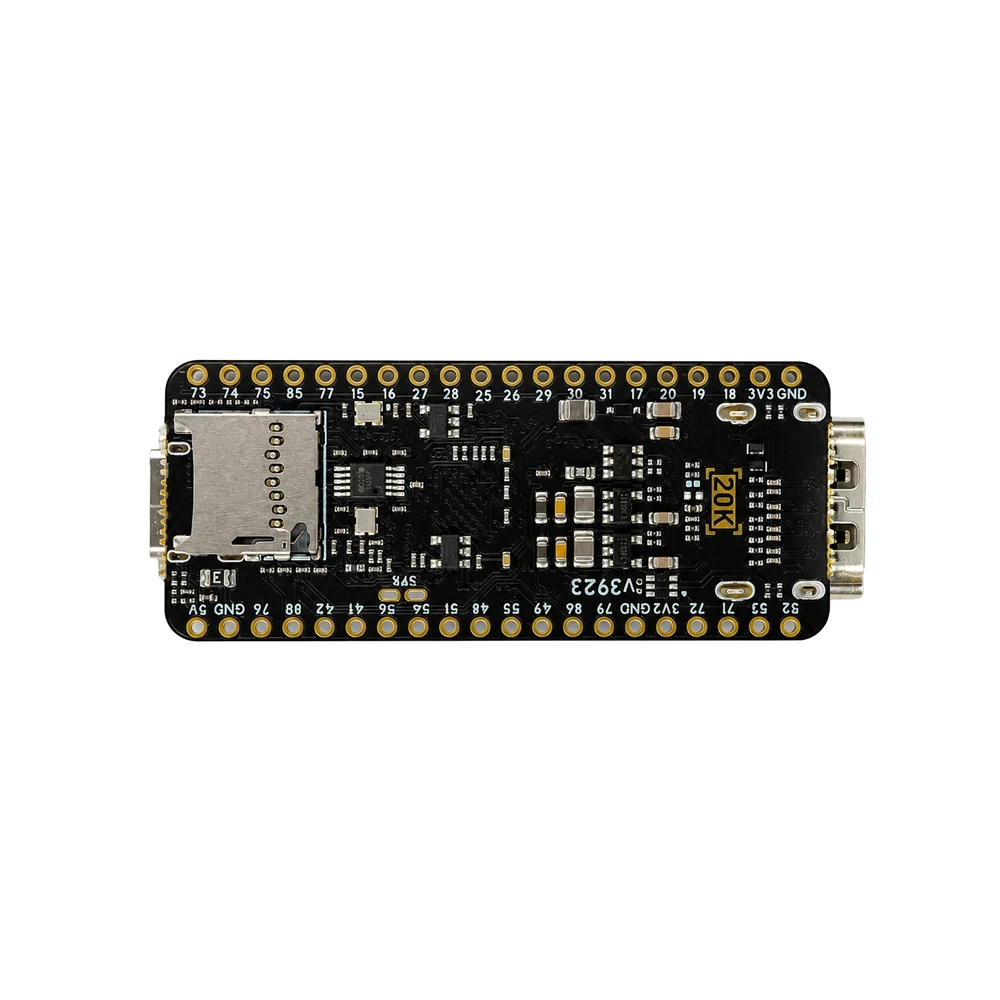

Sipeed Tang Nano 20K FPGA Development Board
The Sipeed Tang Nano 20K is a powerful FPGA development board built around the GW2AR-18 QN88 chip, providing 20,736 LUT4 logic cells for robust digital logic applications. Featuring HDMI and MIPI DPI display interfaces, it’s ideal for projects requiring flexible video output and custom hardware acceleration.
Features
- Features GW2AR-18 QN88 FPGA with 20,736 logic units and 15,552 Flip-Flops.
- Includes 32M QSPI flash and 64M-bit 32-bit SDR SDRAM for ample storage and memory.
- Equipped with HDMI Connector and MIPI DPI FPC Connector for diverse display options.
- Integrated BL616 chip enables convenient USB-to-serial debugging and bitstream downloading.
- Provides 48 18×18 Multipliers and 2 PLLs for advanced DSP and clock management.
Out of stock
The Tang Nano 20K is a high-performance development board engineered around the GW2AR-18 QN88 FPGA chip, offering substantial capabilities for a wide array of digital logic designs. Its core features include 20,736 LUT4 logic cells and 15,552 Flip-Flops, creating a versatile foundation for complex FPGA-driven projects. The integrated FPGA also boasts two PLLs and multiple DSP units capable of 18-bit x 18-bit multiplication, significantly enhancing its processing power for demanding algorithms and computations in applications like image processing or signal analysis.
For seamless development, the Tang Nano 20K incorporates an onboard BL616 chip, which facilitates the straightforward downloading of bitstreams directly into the FPGA. Beyond programming, the BL616 functions as a USB-to-serial converter, ensuring reliable UART communication between the FPGA and a host computer. The board achieves stable and efficient operation through a 27MHz crystal, primarily for HDMI display clocking, and an onboard MS5351 clock generator that provides additional customizable clock signals. This comprehensive design makes the Tang Nano 20K an excellent choice for educational, prototyping, and production-level FPGA-based systems.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 8 × 6 × 3 cm |
