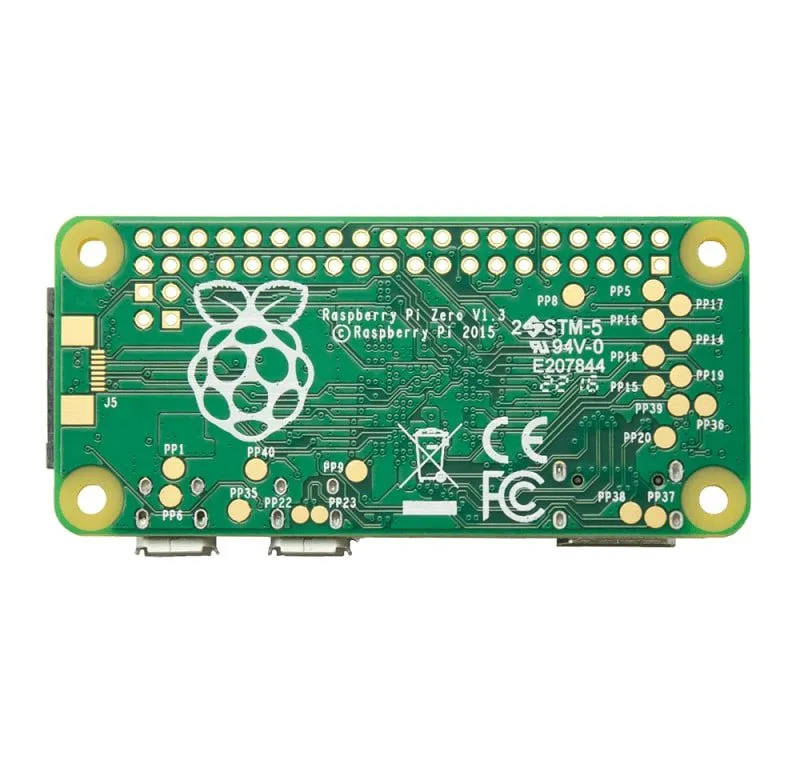

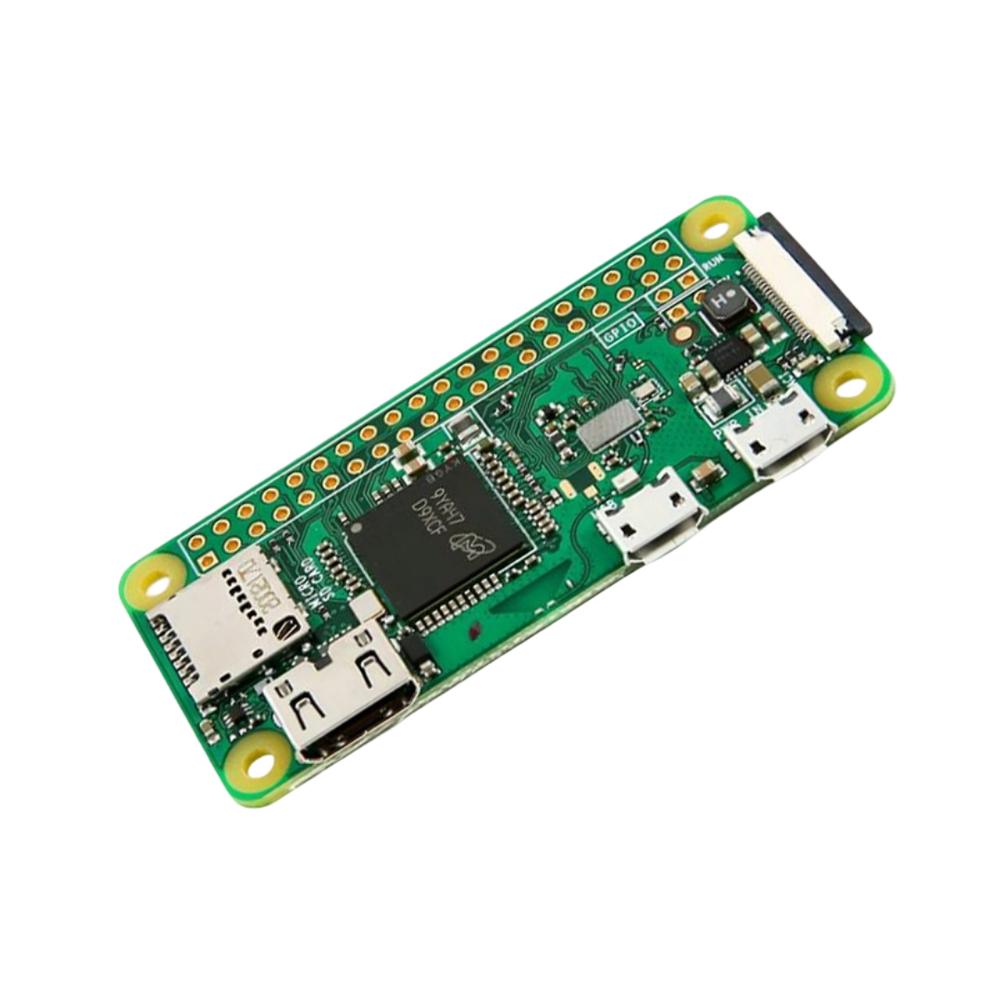

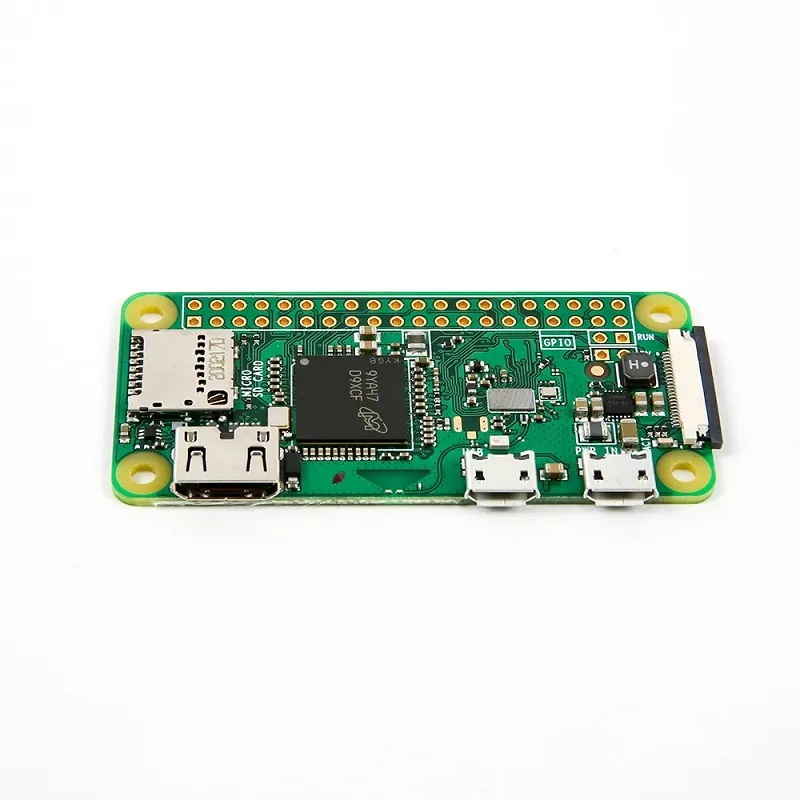

Raspberry Pi Zero V1.3

Description

The Raspberry Pi Zero V1.3 represents a significant step in ultra-low-cost, compact computing within the Raspberry Pi ecosystem. This iteration maintains the familiar BCM2835 system-on-chip, delivering a 1GHz clock speed and 512MB of LPDDR2 SDRAM, making it suitable for a wide array of embedded projects, IoT devices, and educational applications where space and budget are critical. Its minimalist design ensures it remains one of the smallest and most energy-efficient members of the Raspberry Pi family.

A key enhancement in the V1.3 revision is the inclusion of a dedicated CSI camera connector, enabling direct interfacing with Raspberry Pi cameras (via a 0.5mm pitch FPC adapter cable). Connectivity options include a mini-HDMI port for video output, a micro-B USB OTG port for data, and a separate micro-B USB for power input. Despite its diminutive size, the Pi Zero V1.3 preserves the full 40-pin GPIO header, ensuring compatibility with the vast ecosystem of Raspberry Pi HATs and add-on boards, providing extensive expansion capabilities for hardware interfacing and prototyping.
