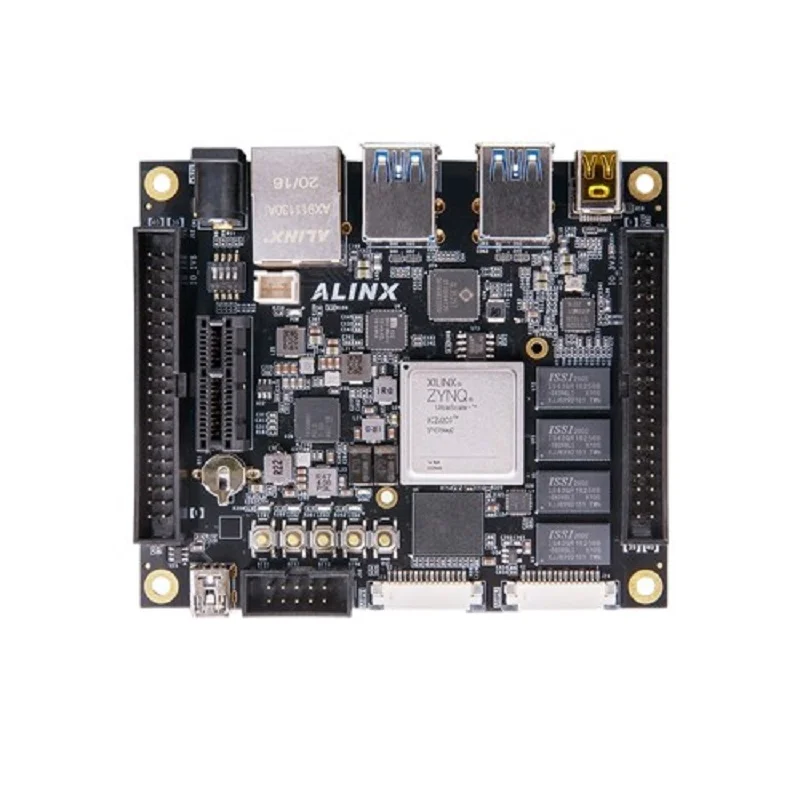

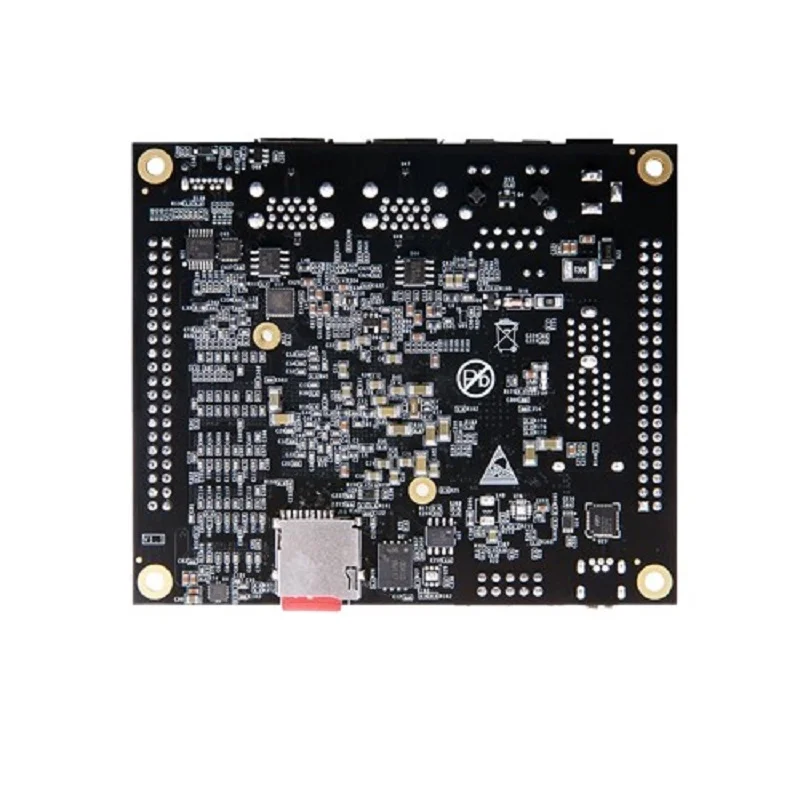

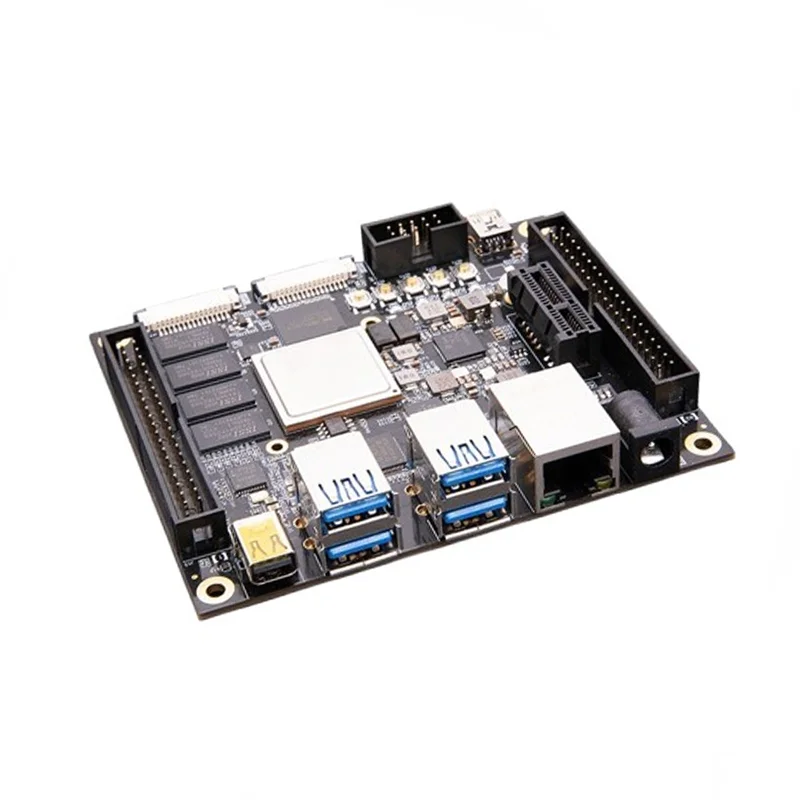

Alinx AXU2CGB Dev Board Kit with AMD Zynq UltraScale+ MPSoC ZU2CG

Development requires the AMD/Xilinx Vitis Unified Software Platform or Vivado Design Suite. You will use Vitis for ARM Cortex application code and Vivado for programming the FPGA logic (PL). The board is supported by official Alinx board definition files and example projects to accelerate initial setup and hardware configuration for embedded vision and AI workloads.

The board features two 2-lane MIPI CSI-2 interfaces on the programmable logic (PL) side. You can connect compatible MIPI camera modules directly to the FPC connectors. You must then design or use an existing FPGA image in Vivado that includes a MIPI CSI-2 RX subsystem IP core to capture the video stream, which can be processed in the PL or transferred to DDR memory for the ARM processors.

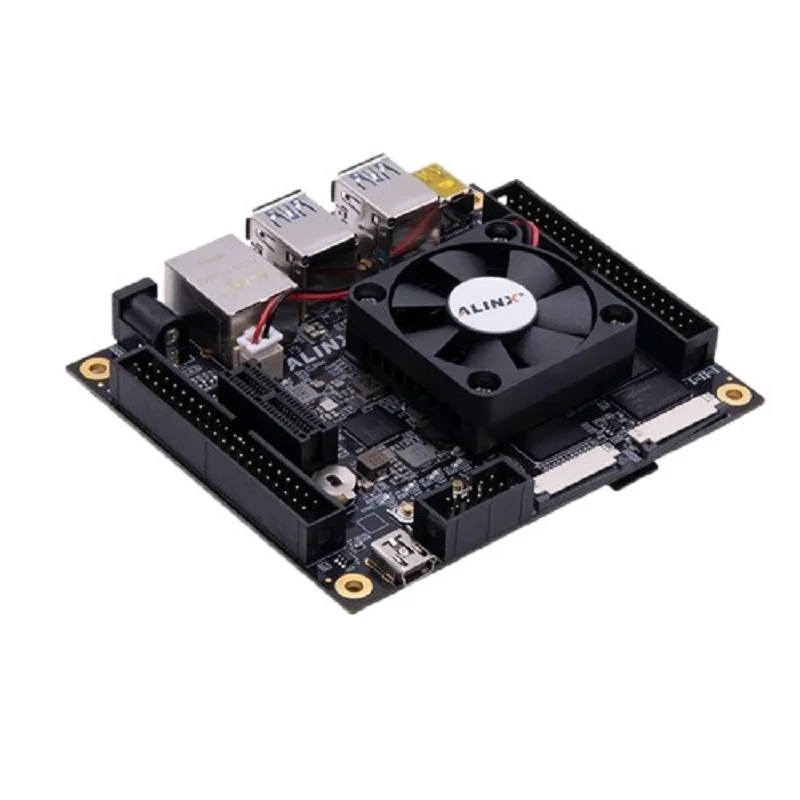

The board requires a stable 12V DC input. Peak power consumption depends on FPGA utilization and processor load. The included heatsink is pre-installed for basic thermal management. For sustained high-performance operation or heavy PL usage, ensure adequate airflow in the enclosure. Monitoring junction temperature via software is recommended for demanding applications to prevent thermal throttling.

Yes, the dual-core ARM Cortex-A53 Processing System (PS) is capable of running embedded Linux distributions such as PetaLinux or Yocto. The board's 2GB DDR4 and 8GB eMMC provide ample resources for the OS, file system, and applications. Booting can be configured from QSPI flash, microSD card, or eMMC, with the provided USB downloader cable used for initial programming and debugging.
