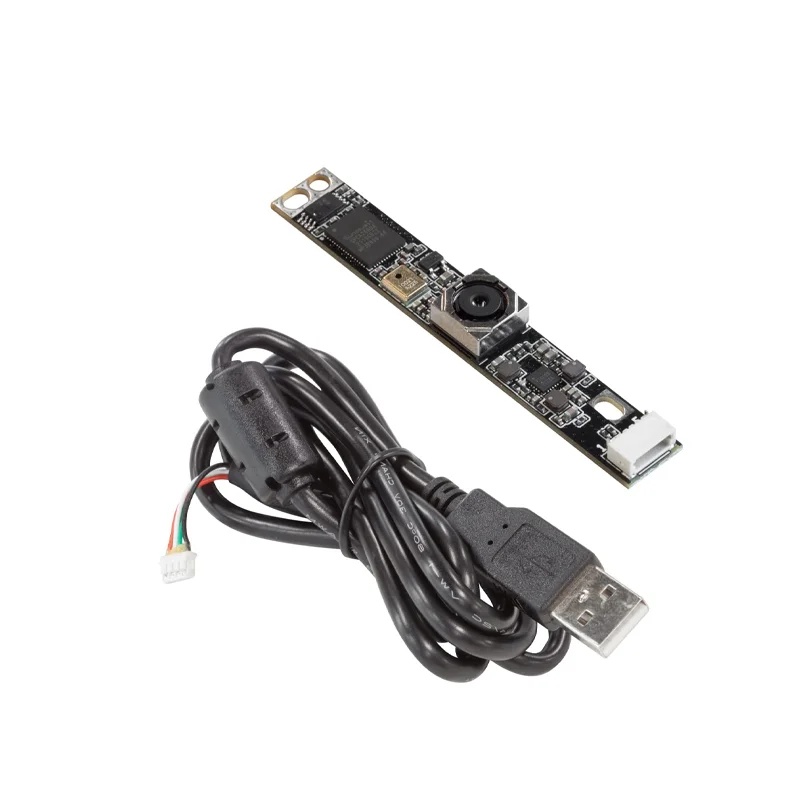

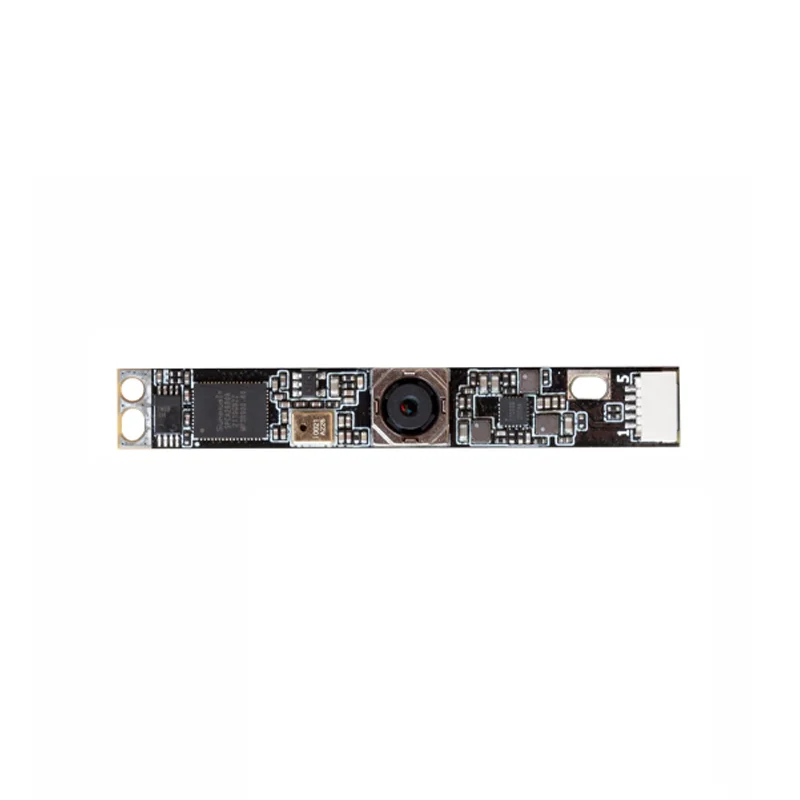

Arducam UB0240 IMX179 8MP Autofocus USB Camera Module
The Arducam UB0240 is an 8MP USB camera module featuring a Sony IMX179 sensor with autofocus, delivering 4K video at 30fps. It’s a plug-and-play, UVC-compliant device compatible with Windows, Linux, Mac OS, and Android for versatile embedded vision applications.
Features
- 8MP Sony IMX179 sensor with integrated autofocus for sharp, detailed imaging.
- Streams 4K video (3264×2448) at 30fps via MJPEG compression over USB 2.0.
- UVC-compliant for plug-and-play operation on Windows, Linux, Mac OS, and Android without custom drivers.

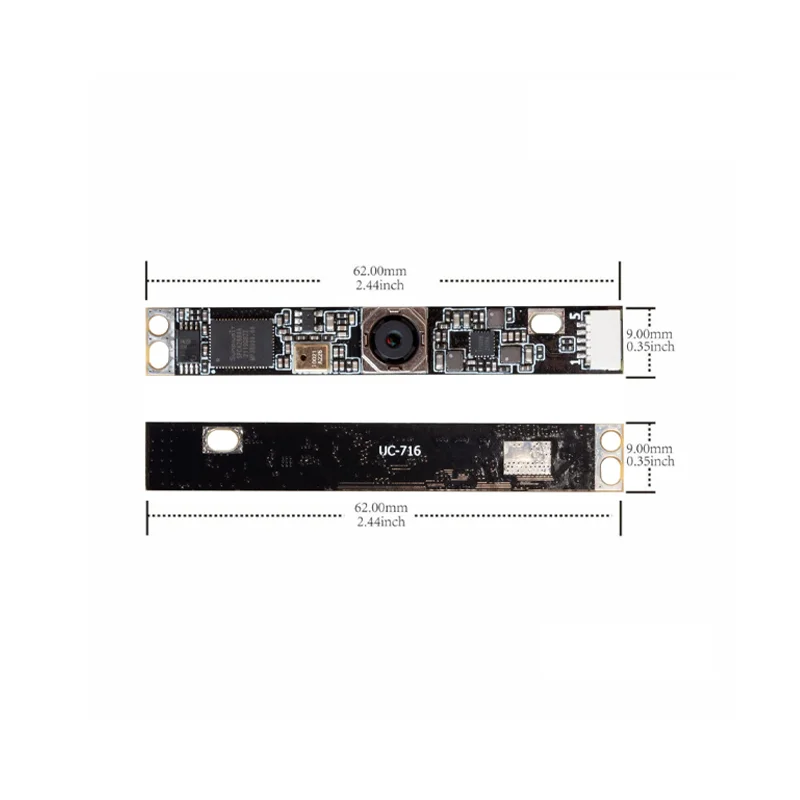

- Compact 62mm x 9mm x 6mm board with a 65° horizontal field of view and built-in microphone.
- Powered via USB (5V, max 300mA) and operates across a wide -20°C to 70°C temperature range.
Out of stock
The Arducam UB0240 is a high-performance embedded USB camera module engineered around the Sony IMX179 1/3.2-inch CMOS sensor. It provides 8-megapixel resolution with an autofocus lens system, ensuring crisp focus across varying distances for applications requiring detailed visual data. The module outputs video in MJPEG and YUYV formats, with full 4K resolution supported at 30 frames per second via the standard USB Video Class (UVC) protocol.
Designed for seamless integration, the UB0240 draws power directly from the USB 2.0 bus and includes a built-in microphone for synchronized audio capture. Its compact, all-in-one form factor and wide operating temperature range make it suitable for deployment in space-constrained and environmentally challenging embedded systems, from industrial inspection to interactive multimedia.
Additional Information
| Weight | 0.052 kg |
|---|---|
| Dimensions | 62 × 9 × 6 cm |
