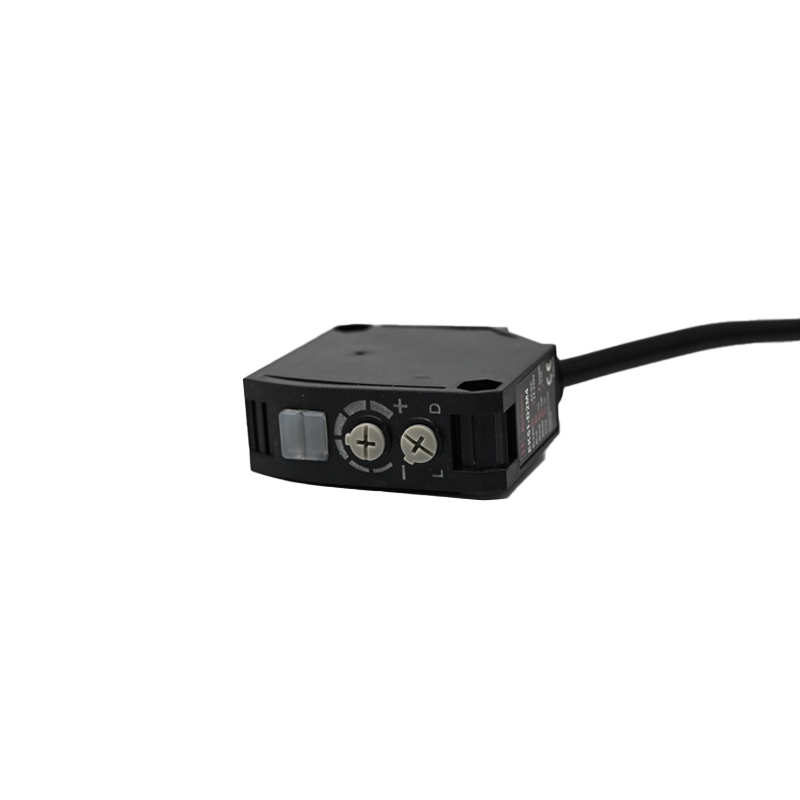

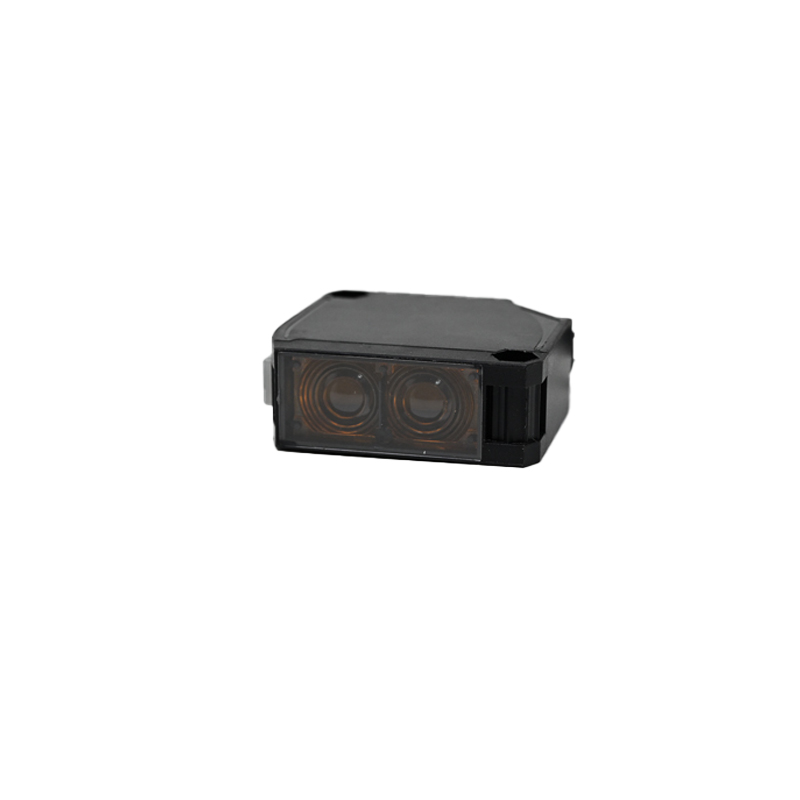

Aotoro EK51-D2M4 Photoelectric Sensor 2cm Diffuse Reflective AC/DC 24V IP66 Rated
The Aotoro EK51-D2M4 is a diffuse reflective photoelectric sensor with a 2cm detection range, designed for direct integration into industrial automation systems and PLCs operating on a universal AC/DC 24V supply. Its IP66-rated housing ensures reliable performance in dusty or wet environments.
Features
- Diffuse reflective sensing principle with a 20mm (2cm) detection range.
- Universal AC/DC 24V power supply compatibility (24VDC, 24-240VAC).
- IP66-rated enclosure for protection against dust ingress and powerful water jets.
- Configurable Light ON / Dark ON operation mode via internal switch.
- Compact dimensions (30mm x 20mm) for easy installation in space-constrained applications.
Out of stock
The Aotoro EK51-D2M4 photoelectric sensor utilizes a diffuse reflective principle, where the emitter and receiver are housed in the same unit. It detects objects by measuring the intensity of light reflected back from the target surface, making it suitable for detecting a wide variety of materials and colors within its specified 2cm range. The sensor is engineered for industrial environments, featuring a robust housing that meets IP66 standards for resistance to dust and water.

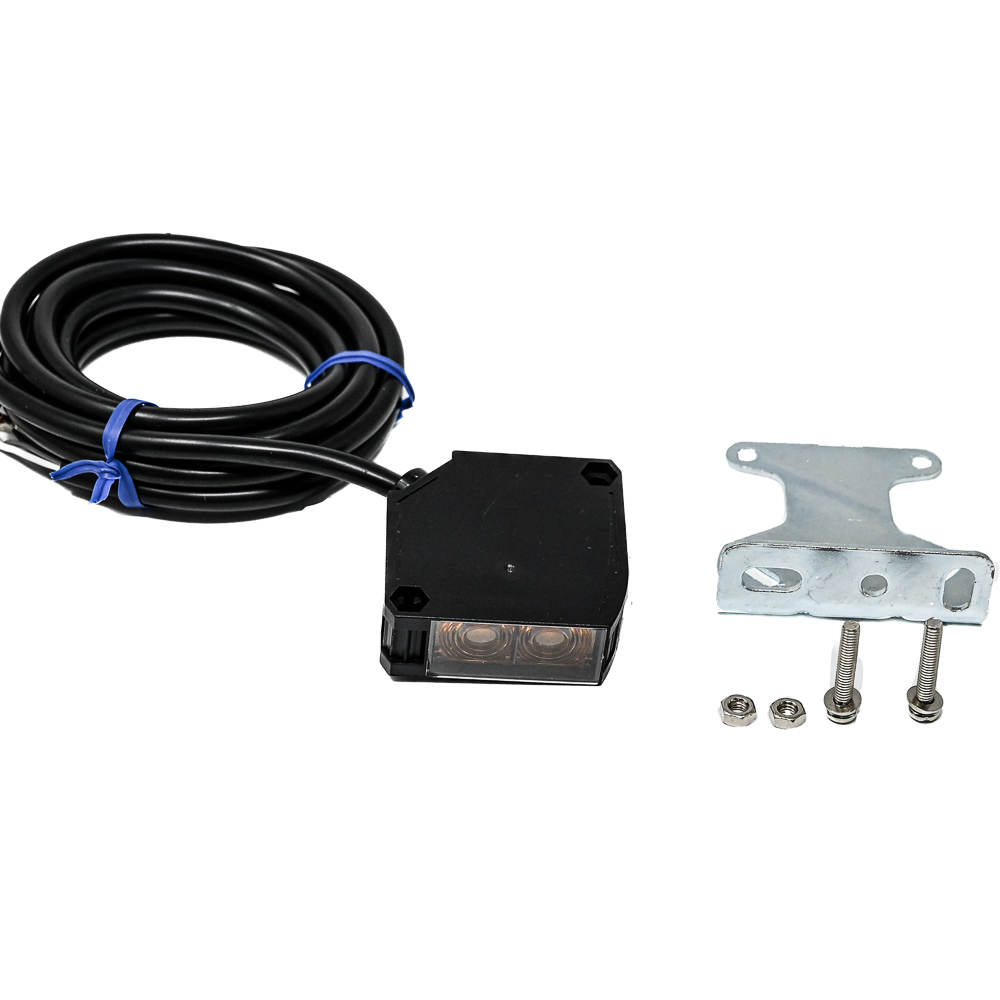

Designed for seamless integration into control systems, it operates on a versatile 24V AC/DC power supply commonly found in factory automation. The unit includes a selectable Light ON/Dark ON mode, allowing it to be configured for either normally-open or normally-closed output logic based on the presence or absence of a detected object. Its compact form factor and included mounting accessories facilitate straightforward installation on machinery, conveyor systems, and automated equipment.
Additional Information
| Weight | 0.127 kg |
|---|---|
| Dimensions | 3 × 2 cm |
