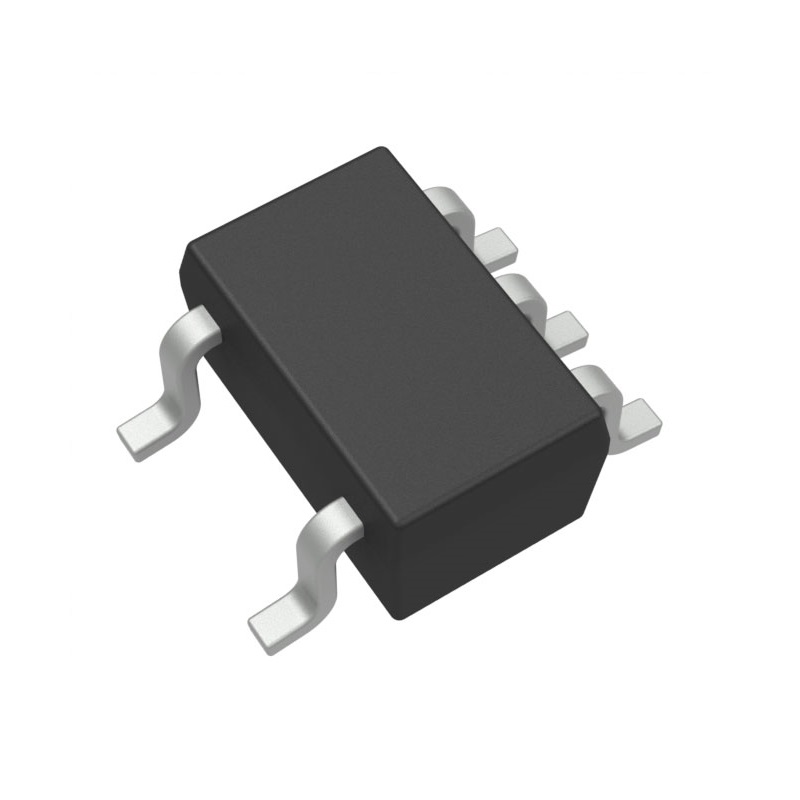

Analog Devices MAX6605MXK+T Precision Analog Temperature Sensor IC, SC-70, 5 Pins
The Analog Devices MAX6605MXK+T is a precision analog temperature sensor IC in a compact SC-70 package, providing a linear voltage output proportional to temperature from -55°C to +125°C, compatible with 3.3V and 5V microcontroller systems.
Features
- Precision analog voltage output proportional to temperature
- Wide operating range from -55°C to +125°C
- Compact SC-70 (SOT-353) surface-mount package with 5 pins
- Single-supply operation from 2.7V to 5.5V
- Typical accuracy of ±0.75°C with ±3°C maximum error
Out of stock
The MAX6605MXK+T from Analog Devices is a monolithic, low-power temperature sensor that converts ambient temperature into a linear analog voltage signal. Its output voltage scales directly with temperature, simplifying interface with analog-to-digital converters (ADCs) in embedded systems, data loggers, and industrial control units.
Housed in a miniature SC-70 package, this sensor is designed for space-constrained applications requiring precise thermal monitoring. It operates from a single 2.7V to 5.5V supply, making it suitable for both 3.3V and 5V logic environments, including battery-powered devices. The device features a typical accuracy of ±0.75°C, ensuring reliable performance across its full -55°C to +125°C range.
Additional Information
| Weight | 0.01 kg |
|---|
