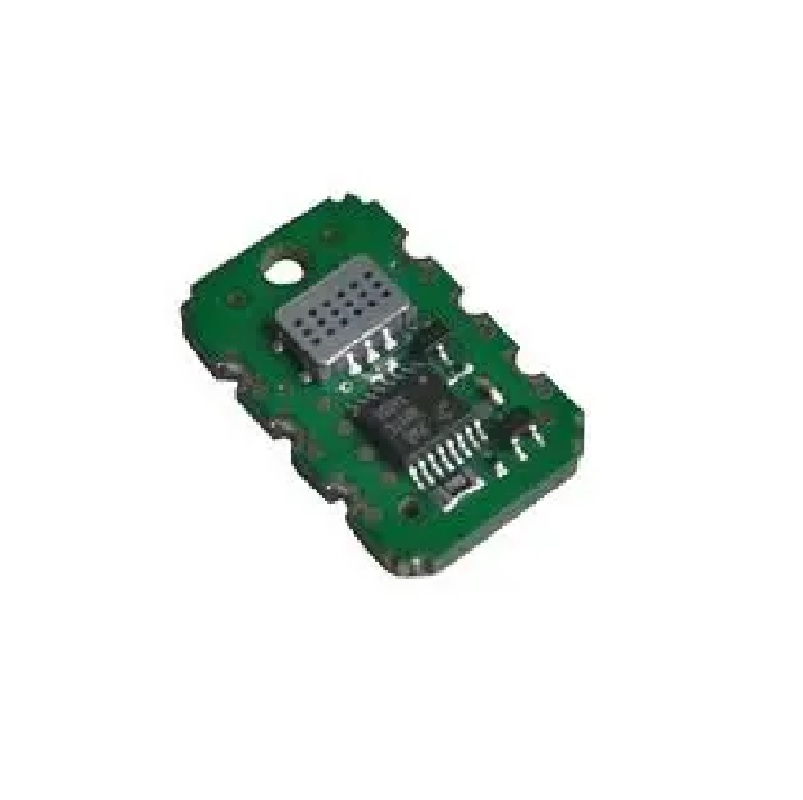

Amphenol SGX Sensortech Sensortech VOC & CO2 Gas Sensor Module 0-1000ppb / 400-2000ppm - I2C/PWM Output
The Amphenol SGX Sensortech Sensortech gas sensor module provides integrated detection of total Volatile Organic Compounds (tVOCs) and equivalent carbon dioxide (eCO2) for indoor air quality monitoring. This calibration-free module offers digital I2C and PWM outputs for easy integration with microcontrollers like Arduino, Raspberry Pi, and ESP32.
Features
- Dual-sensing module for tVOCs (0-1000 ppb isobutylene equivalent) and eCO2 (400-2000 ppm equivalent).
- Calibration-free operation simplifies integration and long-term maintenance.
- Dual digital outputs: I2C interface and configurable PWM (30Hz, 5-95% duty cycle).
- Low power consumption (125 mW) with a 3.3V DC regulated supply requirement.
- Fast response time for tVOCs, comparable to conventional NDIR CO2 sensors.
Out of stock
This semiconductor-based gas sensor module from Amphenol SGX Sensortech Sensortech employs a MEMS micro-hotplate sensing element to detect a broad spectrum of volatile organic compounds and provide an equivalent CO2 reading. The module is designed for plug-and-play operation, requiring no field calibration, which makes it ideal for embedded air quality monitoring systems.
The sensor features robust signal conditioning onboard, providing stable digital outputs via I2C or PWM. Its compact form factor and low power profile suit battery-powered or portable applications. The module operates within a 0°C to 50°C temperature range, making it suitable for typical indoor environmental monitoring.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 4 × 1 cm |
