Amotech Labs 8051 Mini Development Board
Amotech Labs 8051 Mini Development Board - Image 2

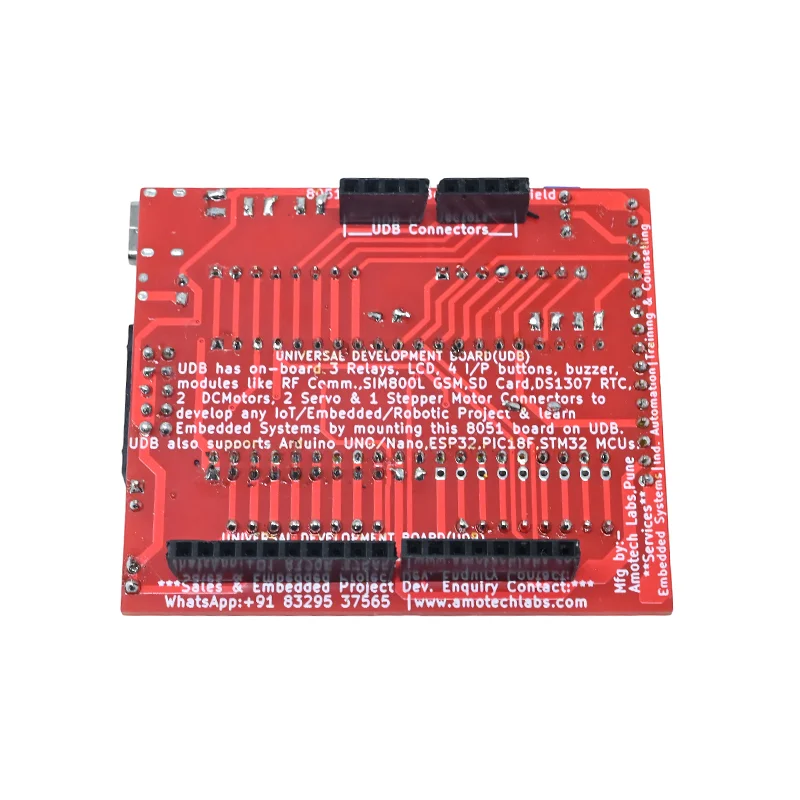

Amotech Labs 8051 Mini Development Board - Image 3
SKU: IOWC-0965
📋 GST Invoice Available

Amotech Labs 8051 Mini Development Board

₹1,000.00 (Inclusive of all taxes)
Out of Stock

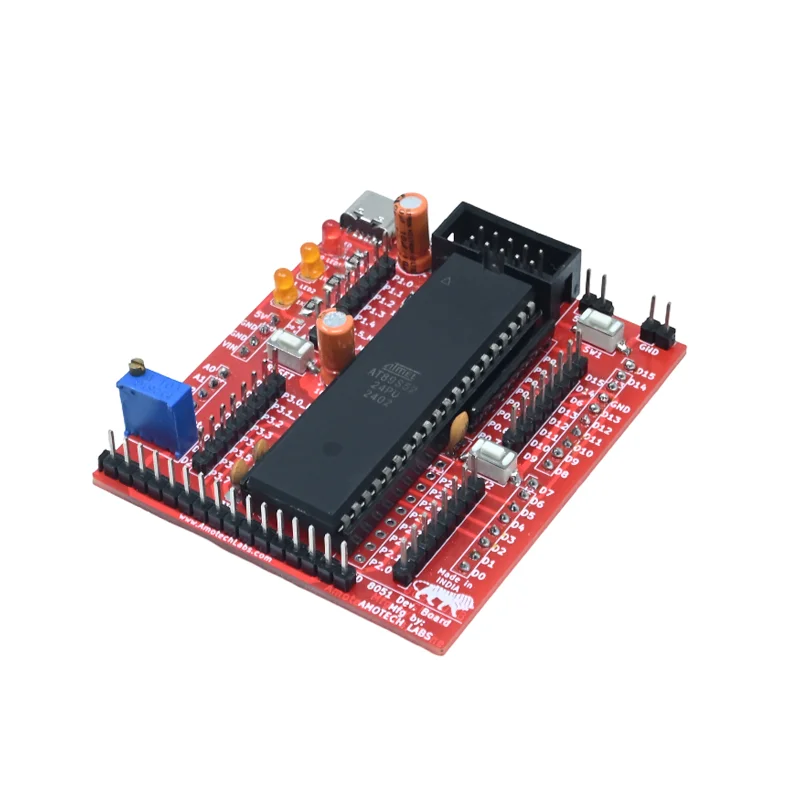

The Amotech Labs 8051 Mini Development Board is a compact, USB Type-C powered platform for hands-on learning and prototyping with 40-pin DIP 8051 microcontrollers like the AT89S52, featuring onboard LEDs, push buttons, and an LCD interface.

Features

  • Supports popular 40-pin DIP 8051 microcontrollers (AT89C51, AT89S52) for foundational embedded systems development.
  • Compact Arduino Uno-sized footprint with USB Type-C power input for easy, modern connectivity.
  • Onboard debugging aids include two digital input push buttons and two output LEDs for rapid hardware testing.
  • Integrated LCD connector simplifies interfacing with 16×2 or 20×4 character displays for project outputs.
  • Full port I/O pin headers provide easy expansion for relays, motors, GSM modules, and various sensors.

Out of stock

Description

The Amotech Labs 8051 Mini Development Board serves as a dedicated, low-cost platform for mastering the 8051 microcontroller architecture. Its design centers a 40-pin DIP socket, allowing direct insertion of chips like the AT89S52 for in-system programming (ISP) via a USB programmer. The board provides essential I/O peripherals on-board, including LEDs and tactile buttons, to accelerate learning and debugging without external wiring.

Powered through a USB Type-C port, it operates at a standard +5V DC, compatible with common mobile chargers or power banks. The exposed pin headers grant full access to the microcontroller’s ports, enabling straightforward connections to external actuators, communication modules, and sensor arrays for comprehensive project development in academic, hobbyist, and early industrial prototyping environments.

Key Features

  • Dedicated platform for 40-pin DIP 8051 microcontrollers, ideal for educational and foundational embedded training.
  • Integrated debugging interface with onboard LEDs and push buttons for immediate input/output testing.
  • Direct LCD display support via a dedicated connector, eliminating complex wiring for alphanumeric outputs.
  • USB Type-C power delivery ensures broad compatibility with modern 5V power sources and cables.
  • Expansive pin-out headers provide full access to all microcontroller I/O ports for sensor and actuator integration.
  • Compact form factor (similar to Arduino Uno) optimizes bench space while maintaining full prototyping capabilities.

Applications

  • Academic and vocational training for 8051 microcontroller architecture and embedded C programming.
  • Prototyping platform for industrial control systems, relay interfaces, and basic automation logic.
  • Development base for hobbyist projects involving character LCD displays, sensor nodes, and input devices.
  • Foundation for interfacing experiments with GSM modules, motor drivers, and various digital/analog sensors.

Technical Specifications

Microcontroller Support40-pin DIP 8051 family (AT89S52, AT89C51)
Programming MethodISP via USB Programmer
Supply Voltage+5V DC via USB Type-C
On-board I/O2x LEDs, 2x Push Buttons, LCD Interface
Expansion InterfacesPort I/O Headers
Dimensions (LxW)67mm x 59mm
Weight33g

Frequently Asked Questions

Which 8051 microcontrollers are compatible with this development board?

This board is designed for standard 40-pin DIP package 8051-family microcontrollers. It directly supports popular models like the AT89S52 and AT89C51. You simply insert the chip into the central DIP socket. Ensure your chosen microcontroller supports In-System Programming (ISP) if you intend to program it directly on the board using a compatible USB ISP programmer.

How do I program the microcontroller on this board?

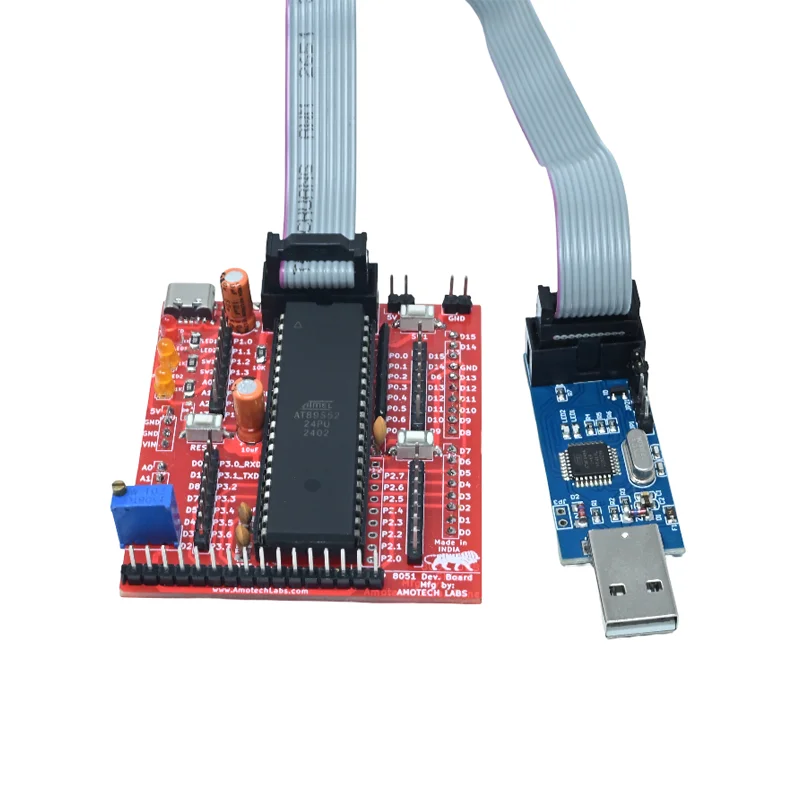

Programming is done via In-System Programming (ISP). You will need a separate USB-based ISP programmer (like the USBasp). Connect the programmer's header to the board's ISP port. Then, use software like Keil uVision or the open-source SDCC compiler with a flash tool (e.g., ProgISP) to upload your compiled HEX file to the microcontroller. The board itself does not contain a built-in USB-to-serial converter for direct programming.

What is the power requirement for the 8051 Mini Development Board?

The board operates at +5V DC supplied through its USB Type-C port. You can use any standard USB power source, such as a wall adapter, power bank, or a computer's USB port, that provides a stable 5V output. The onboard voltage regulator ensures the microcontroller and connected peripherals receive the correct operating voltage. Avoid exceeding 5V on the USB input to prevent damage to the components.

Can I connect a 16x2 LCD display directly to this board?

Yes, the board features a dedicated 16-pin female header specifically for standard HD44780-compatible 16x2 or 20x4 character LCDs. You simply align the LCD's pins with the connector. The pin mapping typically follows the conventional 8-bit or 4-bit interface. You may need to adjust the contrast using a potentiometer, which is not included on the board and would require external wiring if necessary for your specific LCD module.

Package Includes

  • 1 x Amotech Labs 8051 Mini Development Board

Additional Information

Weight 0.033 kg
Dimensions 6.7 × 5.9 cm
