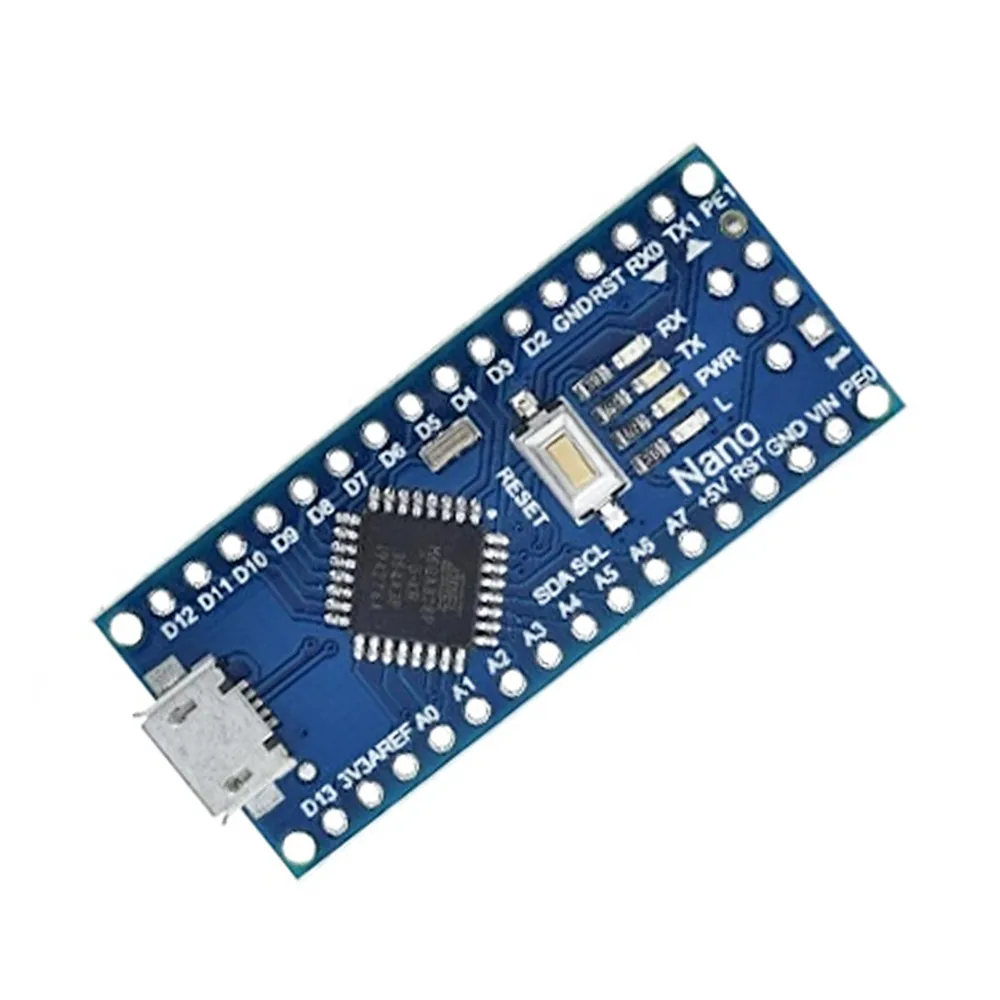

Unsoldered Nano V3.0 ATmega328P 5V CH340 Microcontroller
The Unsoldered Nano V3.0 ATmega328P microcontroller board offers the core functionality of a classic Arduino Duemilanove in a compact form factor. Featuring an ATmega328 MCU, 5V operating voltage, and a CH340G USB interface, it is fully compatible with Arduino programs and the Arduino IDE.
Features
- Based on the ATmega328P microcontroller, operating at 16MHz.
- Features 32KB Flash memory (2KB used by bootloader) and 5V logic level.
- Integrates a CH340G USB-to-serial converter for reliable connectivity.
- Offers 14 digital I/O pins (6 PWM capable) and 8 analog input ports.

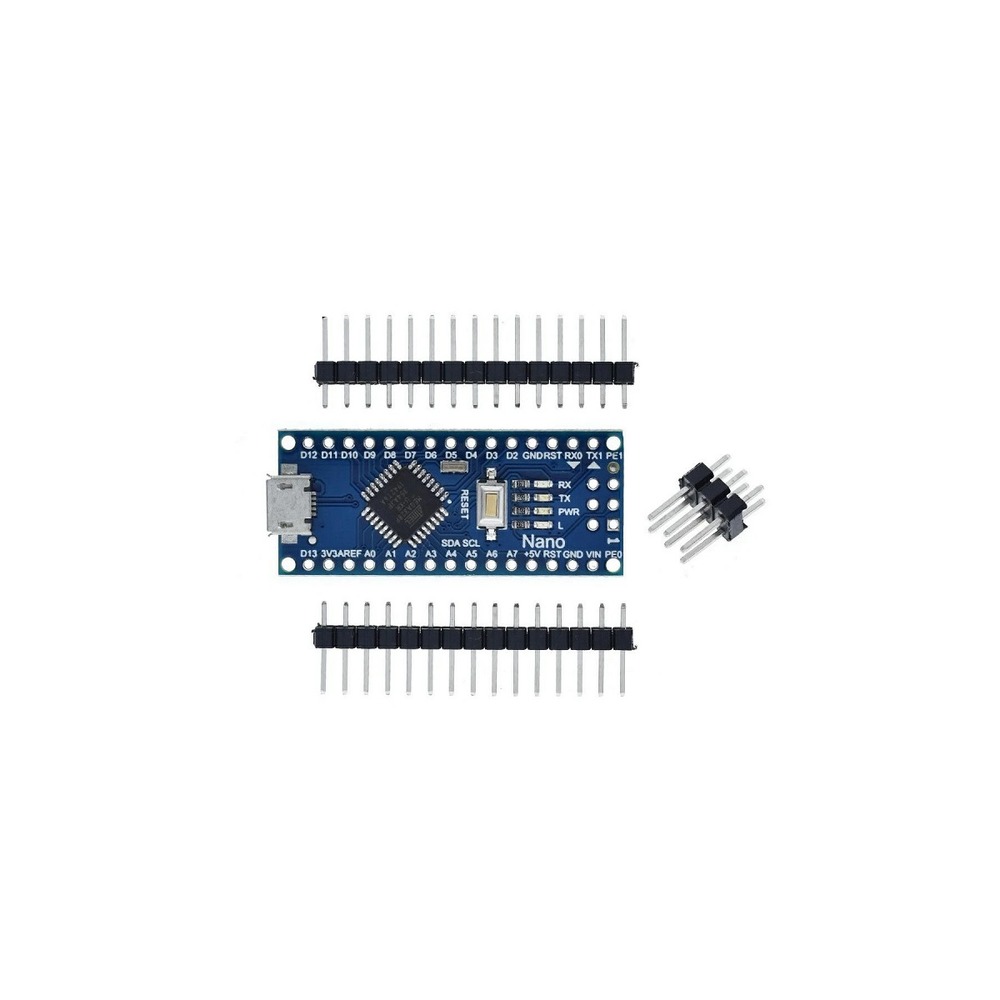

- Comes with unsoldered headers, allowing for flexible integration into projects.
Out of stock
The Unsoldered Nano V3.0 ATmega328P is a compact and complete microcontroller board designed for embedded projects requiring a small footprint. Built around the ATmega328 MCU, it delivers functionality comparable to the classic Arduino Duemilanove but in a significantly smaller form factor, making it ideal for space-constrained applications. This version utilizes the reliable CH340G USB interface controller, ensuring seamless communication with your development environment.
This Nano V3.0 board offers broad compatibility with existing Arduino programs and the Arduino IDE, allowing developers to leverage a vast ecosystem of libraries and community support. Powering the board is flexible, with options for USB connection, an unregulated 6-20V external supply via pin 30, or a regulated 5V supply via pin 27. The board intelligently selects the highest available voltage source for stable operation, providing robust power management for diverse project needs.
Additional Information
| Weight | 0.021 kg |
|---|---|
| Dimensions | 10 × 9 × 1 cm |
